Zoom H5 Quick Guide

Preparations
Connecting mics/other devices to Inputs 1/2
07
H5 Handy Recorder
Connecting mics
Connect dynamic mics and condenser mics to the Input 1/2
XLR jacks.
Connecting instruments and other devices
Connect keyboards and mixers directly to the Input 1/2 TRS
jacks.
Direct input of passive guitars and basses is not supported.
Connect these instruments through a mixer or effects
device.
Lapel mic
Shotgun mic
Lapel mic
L/R
1 2

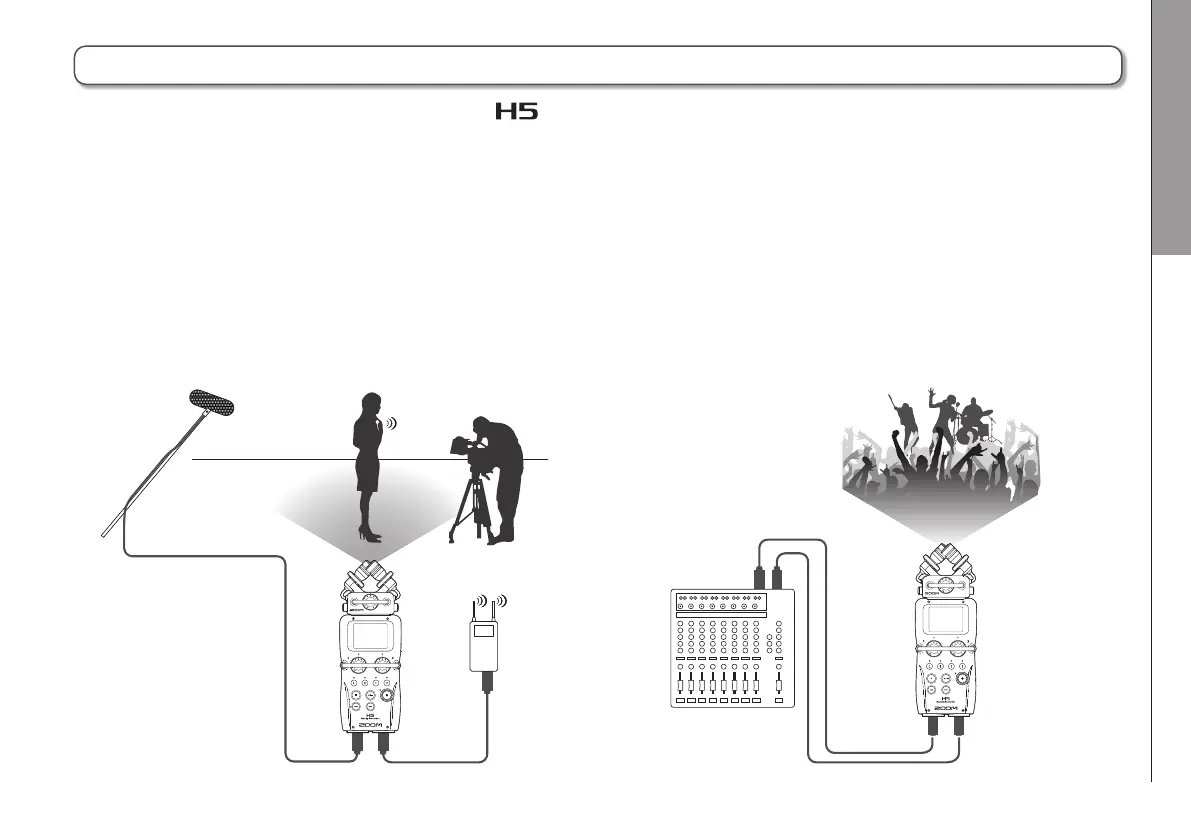

In addition to the L/R inputs from the XY mic, the also has Inputs 1/2. These can be used together to record up to 4
tracks at the same time.
You can connect mics, instruments and other devices to Inputs 1/2.
PA mixer
L/R
1 2
Connecting mics/other devices to Inputs 1/2
