Zoom H5 Quick Guide

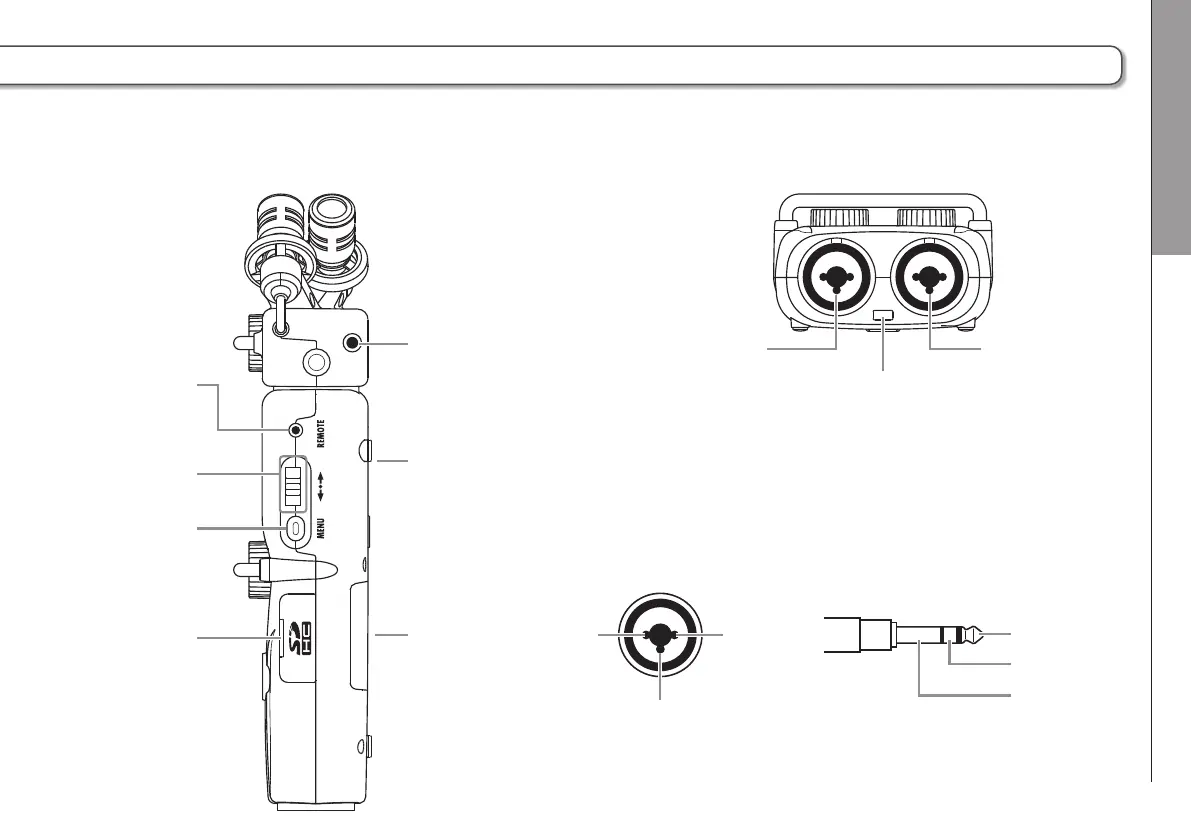

Names of parts
03
H5 Handy Recorder
12
3
Right/Back Bottom
XLR TRS
MIC/LINE input jack
(supports plug-in power)
Battery cover (back)
Speaker (back)
Scroll button
Up/down: Select
menu items
Press: Confirm
menu selection
MENU button
Press:
Open menu,
Return to last screen
SD card slot
REMOTE jack
1: GND
2: HOT
3: COLD
TIP: HOT
RING: COLD
SLEEVE: GND
Input 1
Strap attachment hole
Input 2

Zoom H5 Specifications

General

G-shock sensor	No
Number of cameras	1
Sample rate	96 kHz
Audio quality	24 bit
Audio recording	Yes
Microphone sensitivity	45 dB
Compatible memory cards	SD, SDHC
Power source type	Battery
Product color	Black
Microphone maximum input	140 dB SPL
Microphone input impedance	2000 Ω
Interface	1/8\
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	135.2 mm
Width	66.8 mm
Height	42.1 mm
Weight	176 g
