Zoom Handy Recorder H8 User Manual

2

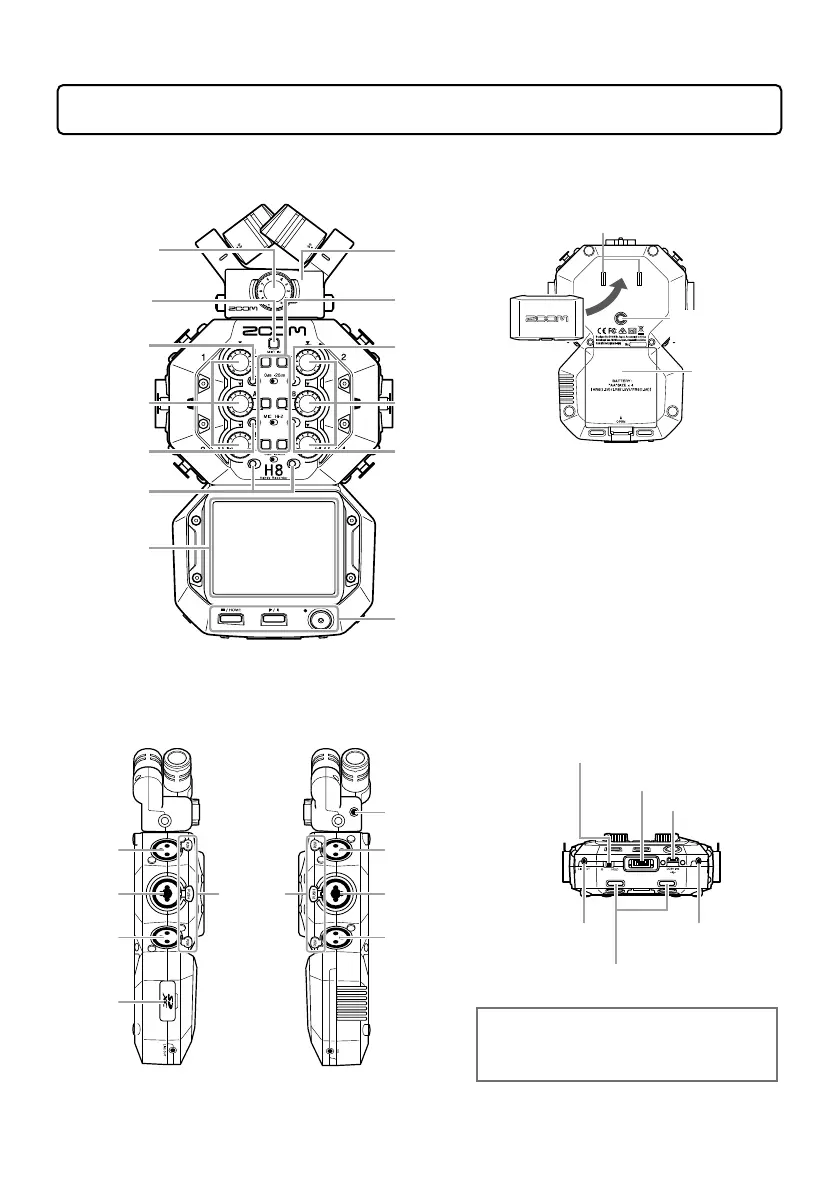

Names of parts
Mic track button
Mic input volume
L/R
PAD switch 1
Input volume
1/3/A
Hi-Z switch A
PAD switches
3/4
Touchscreen
XY mic
PAD switch 2
Track buttons/
indicators
1/2/3/4/A/B
Input
volume
2/4/B
STOP/HOME button
PLAY/PAUSE button
REC button
Hi-Z switch B
 To p
Mic connector cap
attachment points
Tripod mounting
threads
Battery
compartment
cover
 Bottom
Lock
release
buttons
Input 1
Input A
Input 3
SD card
slot
MIC/LINE IN jack
(supports
plug-in power)
Input 2
Input B
Input 4
 Left side  Right side  Front
Power/Hold switch
REMOTE jack
USB (Micro-B) port
LINE OUT
jack
Strap attachment holes
PHONE OUT jack
By connecting a ZOOM BTA-1 or other dedicated
wireless adapter to the REMOTE jack and using
the dedicated controller app, the
H8 can be
operated from an iOS/iPadOS device.

Zoom Handy Recorder H8 Specifications

Ports & Interfaces

number of input channels	8
number of output channels	1
connectors MIC IN	ZOOM mic connector

Power

phantom power	+24 V/+48 V
power supply	4 AA batteries
AC adapter	DC 5 V/1A

Recording and Playback

recording formats	WAV, MP3
maximum simultaneous recording tracks	12
display	2.4" (320×240) full-color touchscreen LCD

Weight and Dimensions

H8 dimensions	116.4 mm (W) × 163.3 mm (D) × 48.6 mm (H)
XYH-6 dimensions	78.9 mm (W) × 60.2 mm (D) × 45.2 mm (H)
H8 weight	354 g
