Installing the CPU Fan
There are many different fan types that can be used with this motherboard. Follow the
instruction that came with your fan assembly. Be sure that the fan orientation is correct
for your chassis type and your fan assembly.
Installing Memory Modules
This motherboard accommodates two memory modules. It can support two 240-pin
DDR3 1066/800. The total memory capacity is 8 GB. You must install at least one
module in any of the two slots. Refer to the following recommendations to install the
memory modules.
q One DIMM: Install it into slot 1 or 2. You can install the DIMM into any slot,
however, slot 1 is preferred.
q Two DIMMs: Install them into slot 1 and slot 2.

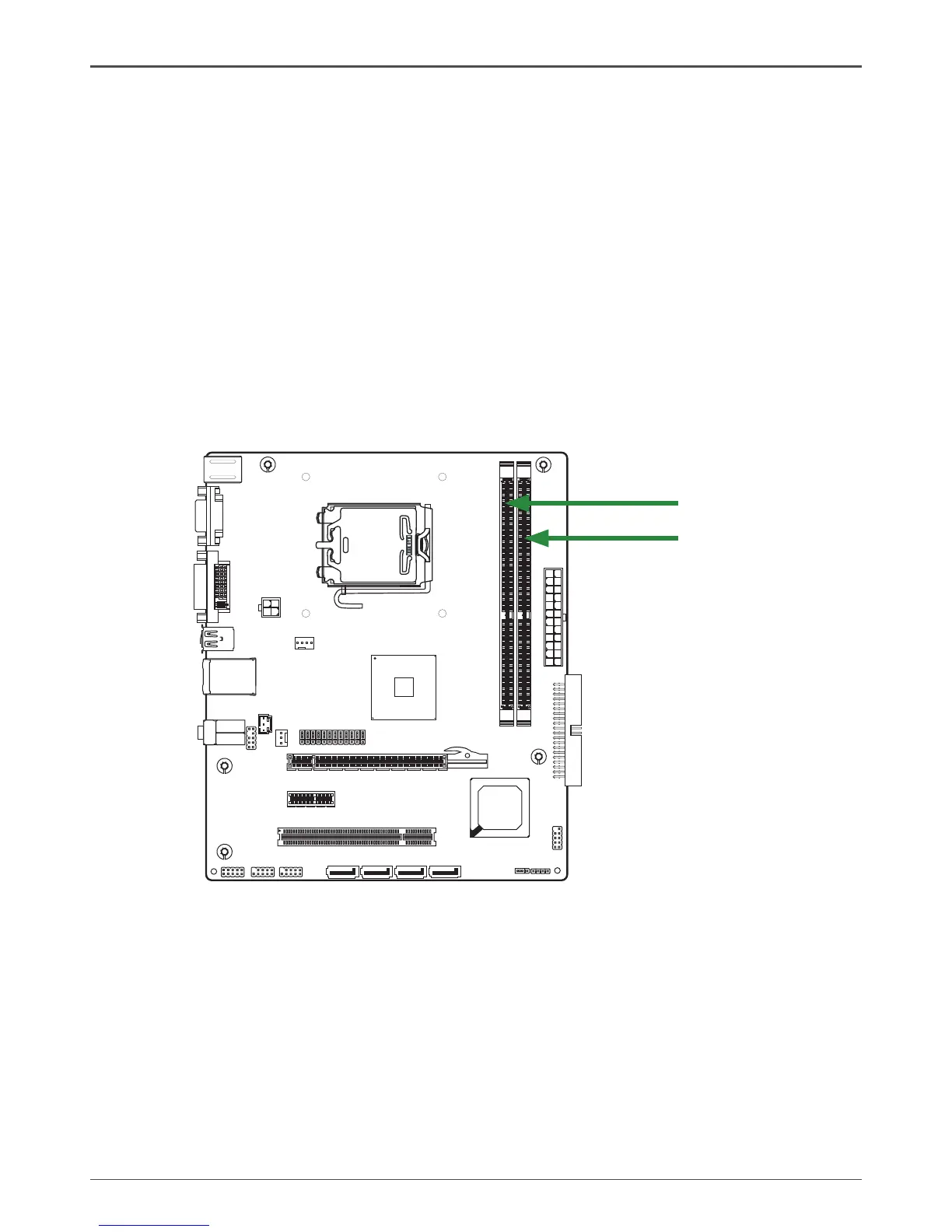

DDRIII2
DDRIII1
Note that a memory module has a notch, so it can only t in one direction. Refer to
the following procedure to install memory modules into the slots on the motherboard.
1. Unlock a DIMM slot by pressing the module clips outward.
2. Align the memory module to the DIMM slot, and insert the module vertically into
the DIMM slot. The plastic clips at both sides of the DIMM slot automatically lock
the DIMM into the connector.
