Zotac G41 series

17
Connecting Serial ATA Cables (Optional)
The Serial ATA II connectors are used to connect the Serial ATA II device to the
motherboard. These connectors support the thin Serial ATA II cables for primary
storage devices. The current Serial ATA II interface allows up to 3 GB/s data transfer
rate.

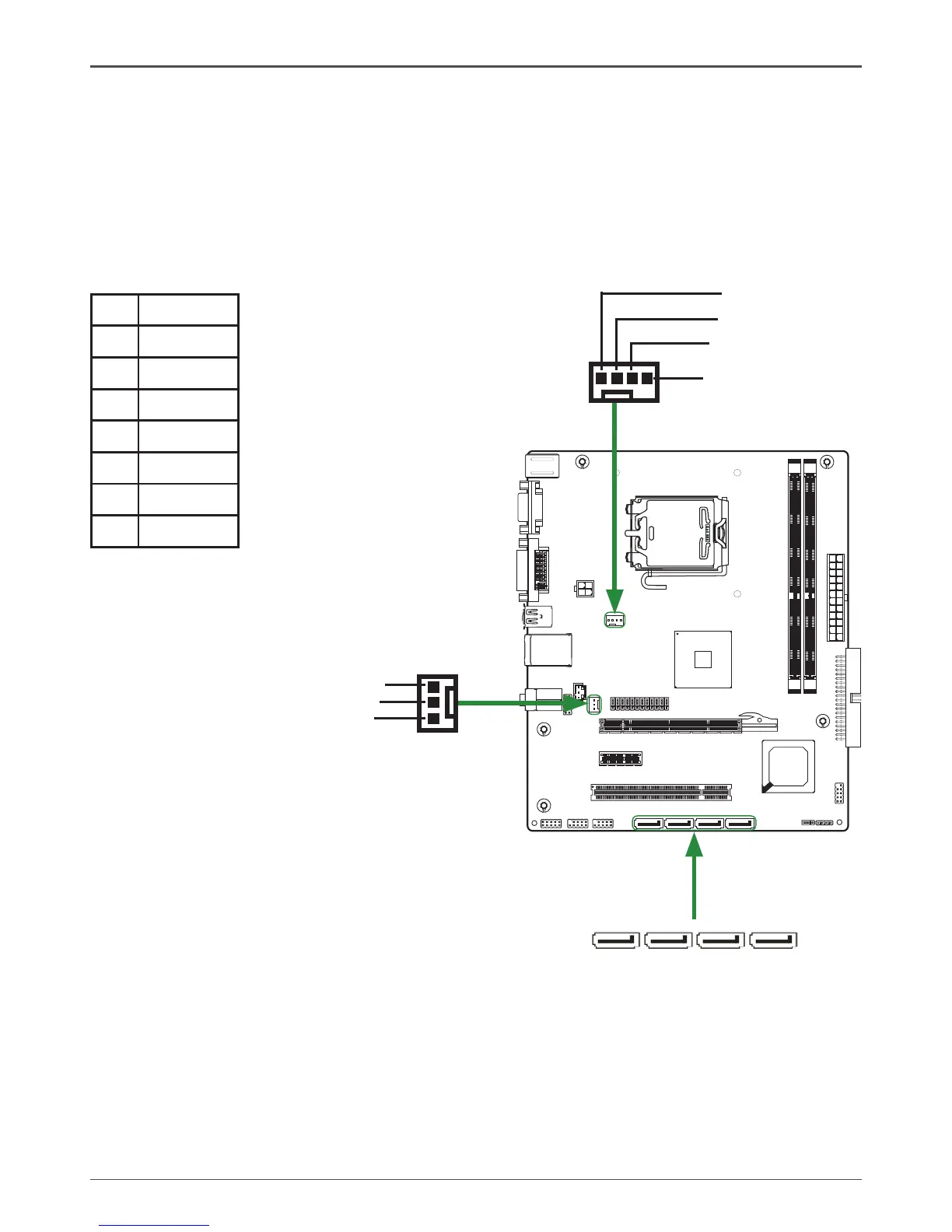

Fan Connectors
There are two fan connectors on the mother-
board, including CPU fan connector-CPUFAN1
and System fan connector-SYSFAN1.
SATA-Pin Denition
Pin Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
LOT ES
R E O EVM
120
240
121
120
240
121
1.5V 1.5V
SATA1
CPUFAN1
SATA2
SATA3
SATA4
Sense
+12V
GND
Control
GND
+12V
Sense
SYSFAN1
Hardware Installation
