19
Hardware Installation

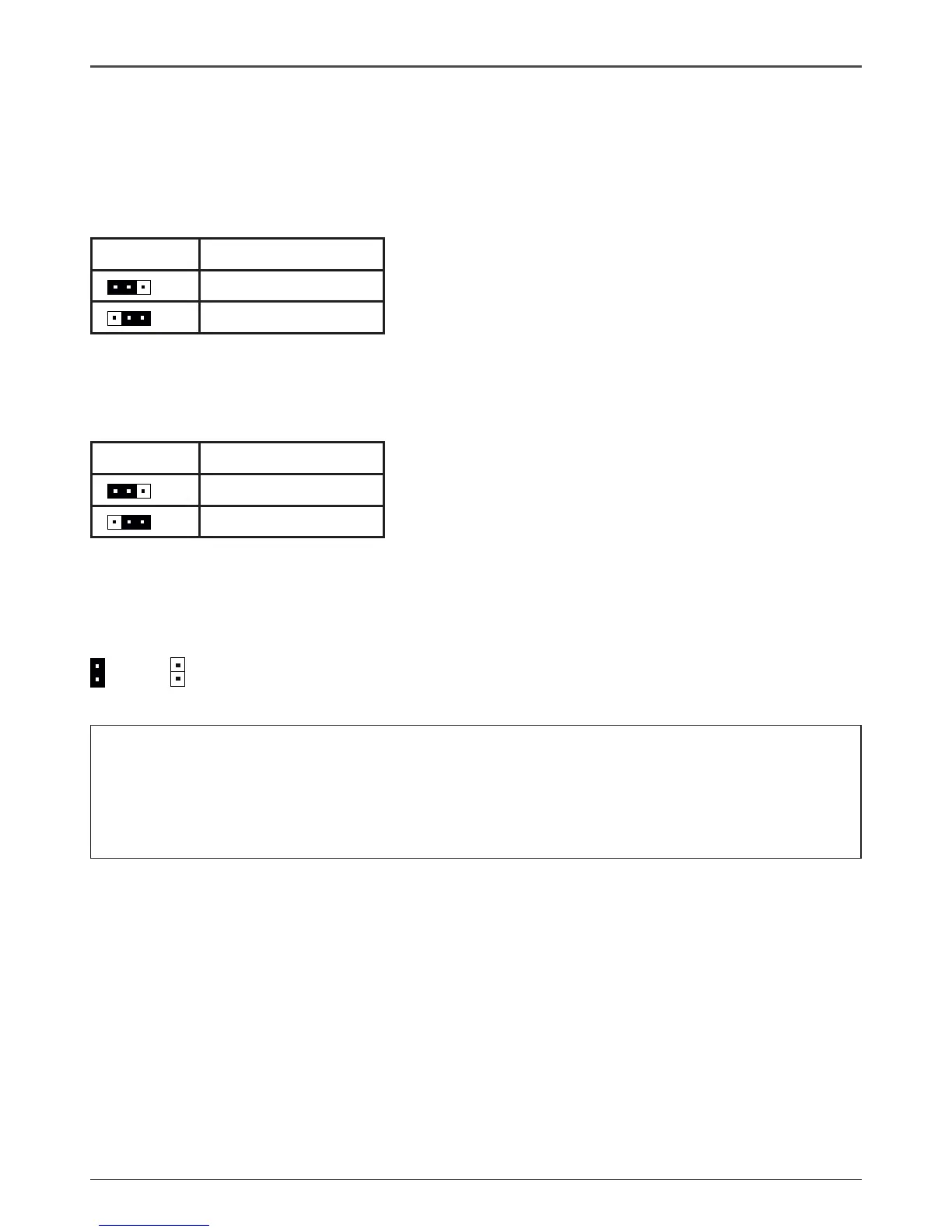

Jumper Settings
This chapter explains how to congure the motherboard’s hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this
chapter whenever in doubt.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen
even if the frequency multiplier setting in CMOS setup is changed.
Close Open * = Default setting.
JP1-CMOS Clear Jumper
JP1 Selection
1-2* Normal*
2-3 CMOS Clear
1
1
If you want to clear the system conguration, use the JP1 (Clear CMOS
Jumper) to clear date.
JP2 Selection
1-2* DVI*
2-3 PCIEX16
1
1
JP2-DVI-PCIEX16 Select Jumper
JP2 is a group containing twelve jumpers. Its default setting is DVI. When
using the external graphics card, please change the jumper setting to
PCIEX16.
