Zotac G41 series

14

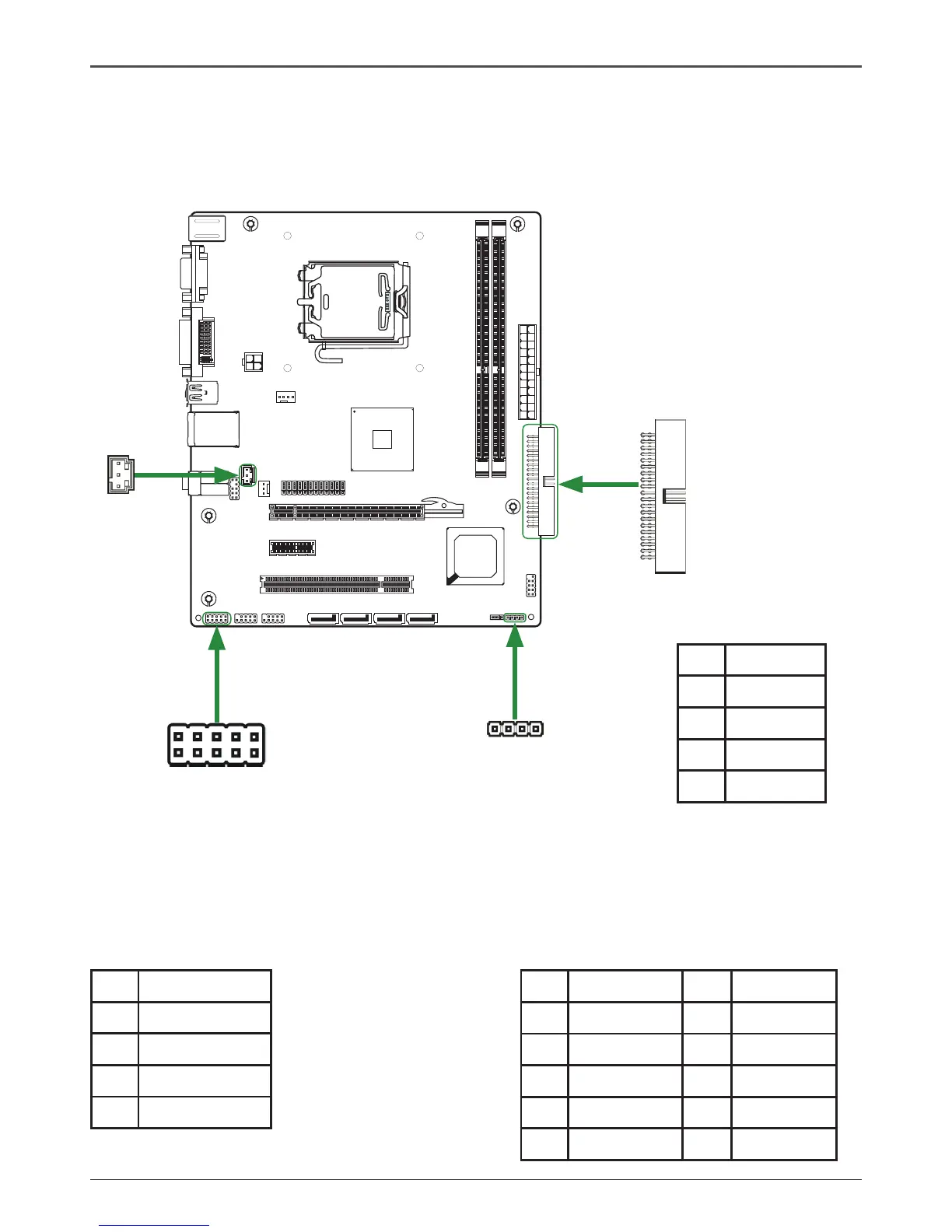

G41 series motherboard
Hard Disk Connector-CN1
The motherboard has a 32-bit Enhanced PCI IDE and Ultra DMA 66/100/133 control-
ler that provides PIO mode 0~4, Bus Master, and Ultra DMA 66/100/133 function. You
can connect up to two hard disk drives, CD-ROM, 120MB Floppy (reserved for future
BIOS) and other devices.
SPK Header
COM Header-CN9 (Optional)
SPK-Pin Denition
Pin Signal
1 VCC
2 NC
3 NC
4 SPK-
CN9 - Pin Denition
Pin Signal Pin Signal
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 NC
SPDIF-Out Header
This header provides a SPDIF (Sony/Phil-
ips Digital Interface)output to digital multi-
media device through coaxial connector.
SPDIF-Pin Denition
Pin Signal
1 SPDIF OUTX
2 VCC
3 NC
4 GND
1
CN1
LOT ES
R E O EVM
120
240
121
120
240
121
1.5V 1.5V
SPK1
CN9
1
1
CN6
1
