Rear Panel
1. PS/2 Mouse Port
2. PS/2 Keyboard Port
3. VGA Connector
4. DVI Port
5. USB Ports
6. Port 2-Channel 4-Channel 6-Channel
Blue Line-In Rear Speaker Out Rear Speaker Out
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Center/Subwoofer
7. LAN Connector
Lan Port with LEDs to indicate status.
· Yellow/Light Up/Blink = 10 Mbps/Link/Activity
· Yellow and Green/Light Up/Blink = 100 Mbps/link/Activity

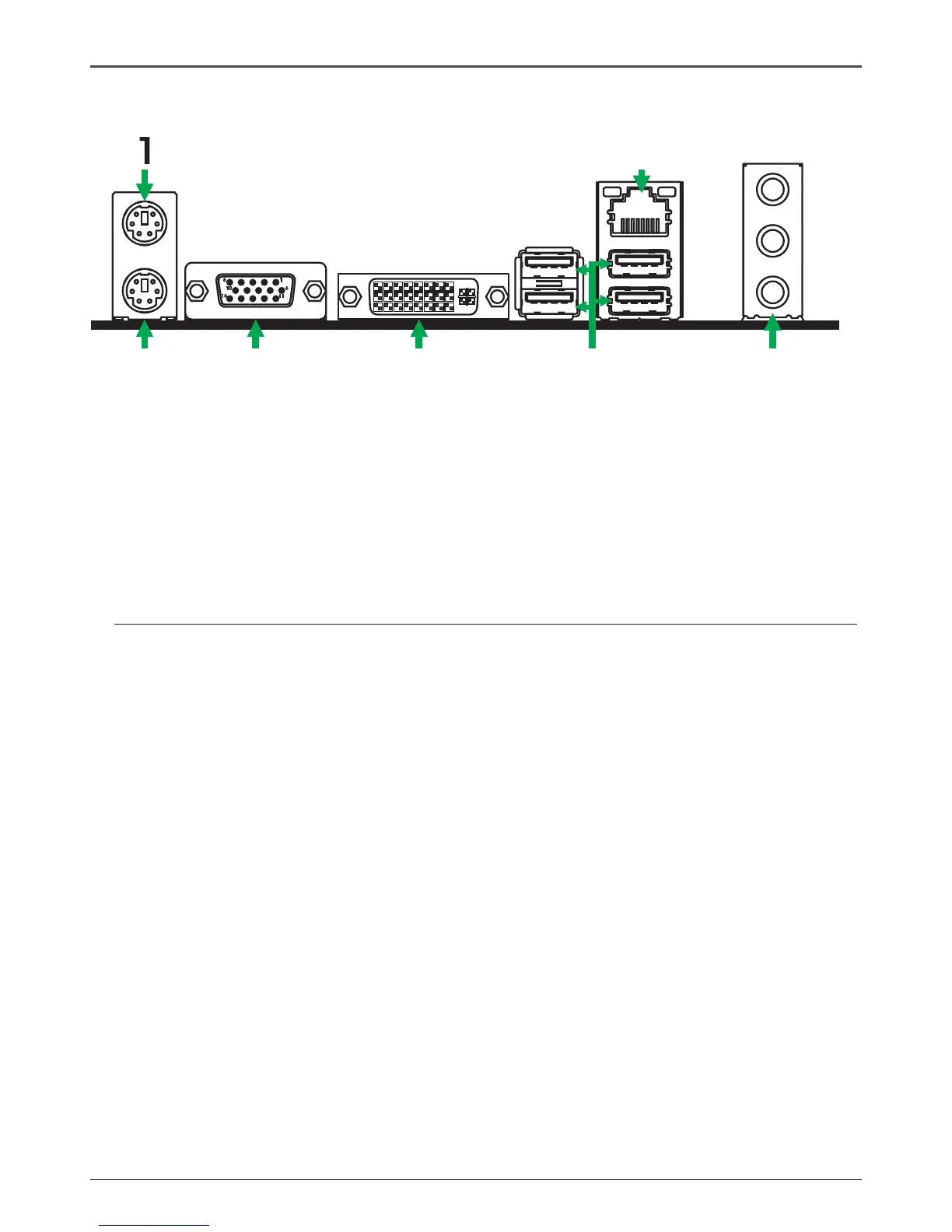

Figure 2: Backpanel connectors
