ION ITX Series Motherboard

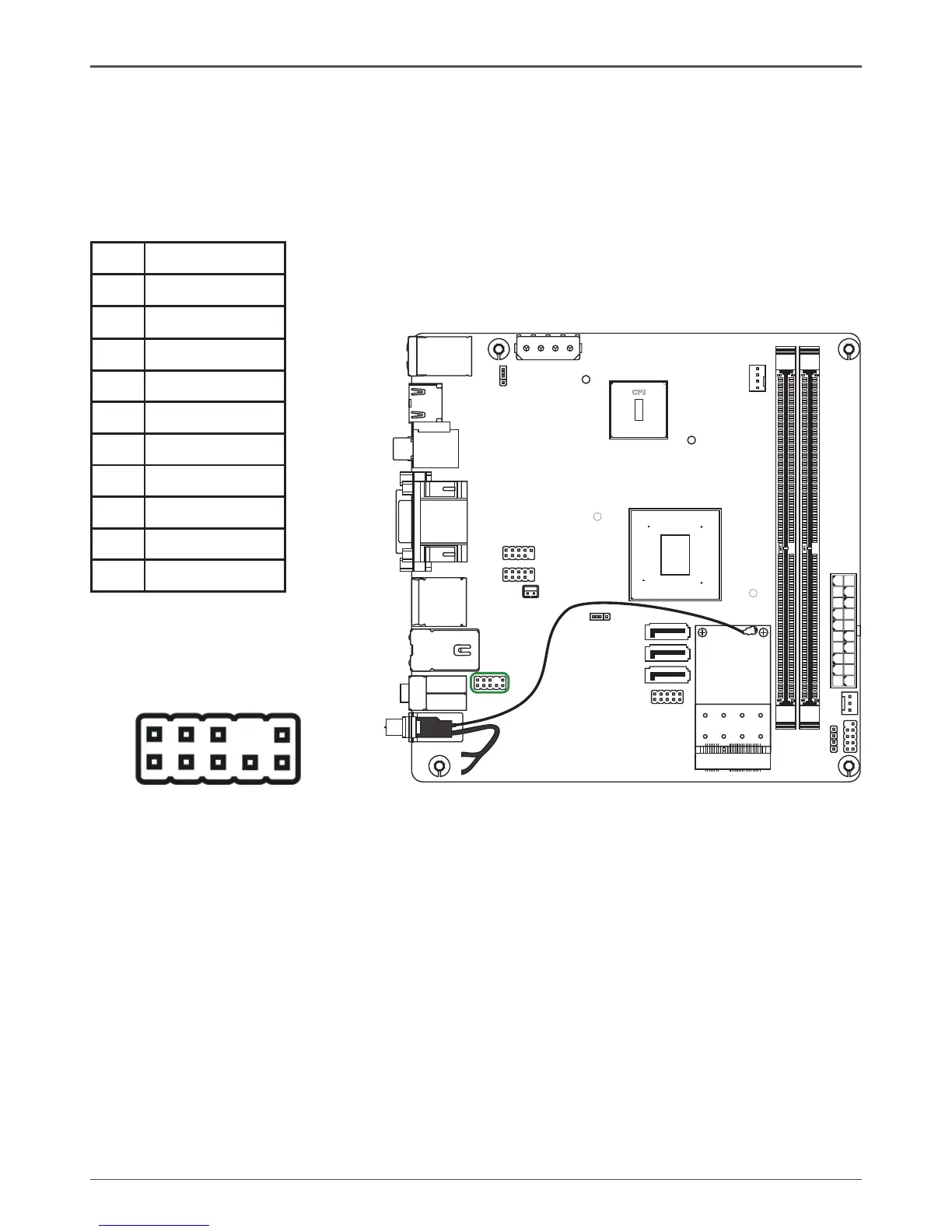

Front Audio Header
The audio connector supports HD audio standard and provides two kinds of audio
output choices: the Front Audio, the Rear Audio. The front Audio supports re-tasking
function.
Note:
In order to utilize the front audio header, your chassis must have front audio connector.
Also please make sure the pin assignment on the cable is the same as the pin assignment
on the mainboard header. To find out if the chassis you are buying supports a front audio
connector, please contract your dealer.
2
1
10
9
120
240
121
120
240
121
+
. .
.
CPU
FP Audio-Pin Definition
PIN Assignment
1 MIC2(L)
2 GND
3 MIC(R)
4 -ACZ-DET
5 Front Audio(R)
6 Reserved
7 FAVDIO-JD
8 Key(No pin)
9 Front Audio(L)
10 Reserved
