19
Hardware Installation
Jumper Setting
This chapter explains how to configure the motherboard’s hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this
chapter whenever in doubt.

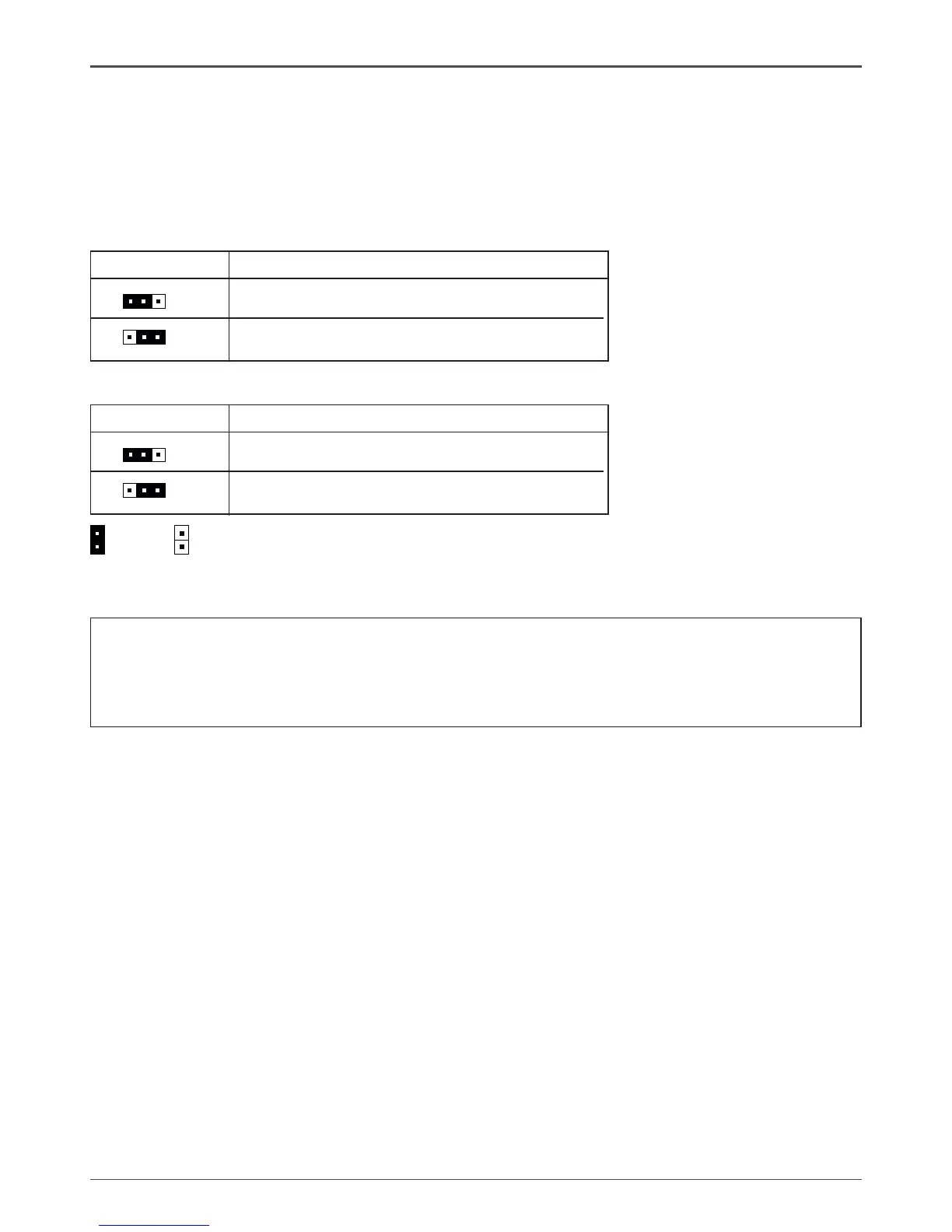

JP1-CMOS Clear Jumper
JP1 Selection
1-2* Normal*
2-3 CMOS Clear
1
1
Close Open * = Default setting.
If you want to clear the system conguration, use the JP1 (Clear CMOS Jumper) to clear data.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen
even if the frequency multiplier setting in CMOS setup is changed.
JP3-USB power Jumper
JP3 Selection
1-2* 5Vdual(for USB wake up support) *
2-3 5V
1
1
To Next Page
