Zotac IONITX-F series User Manual

16
NVIDIA ION PCIEx16 series Motherboard
120
240
121
+
�
�
�
CP U
Li t hium c ell
CR 2 032
3V
S C 7
120
240
121
PIN SIGNAL
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND

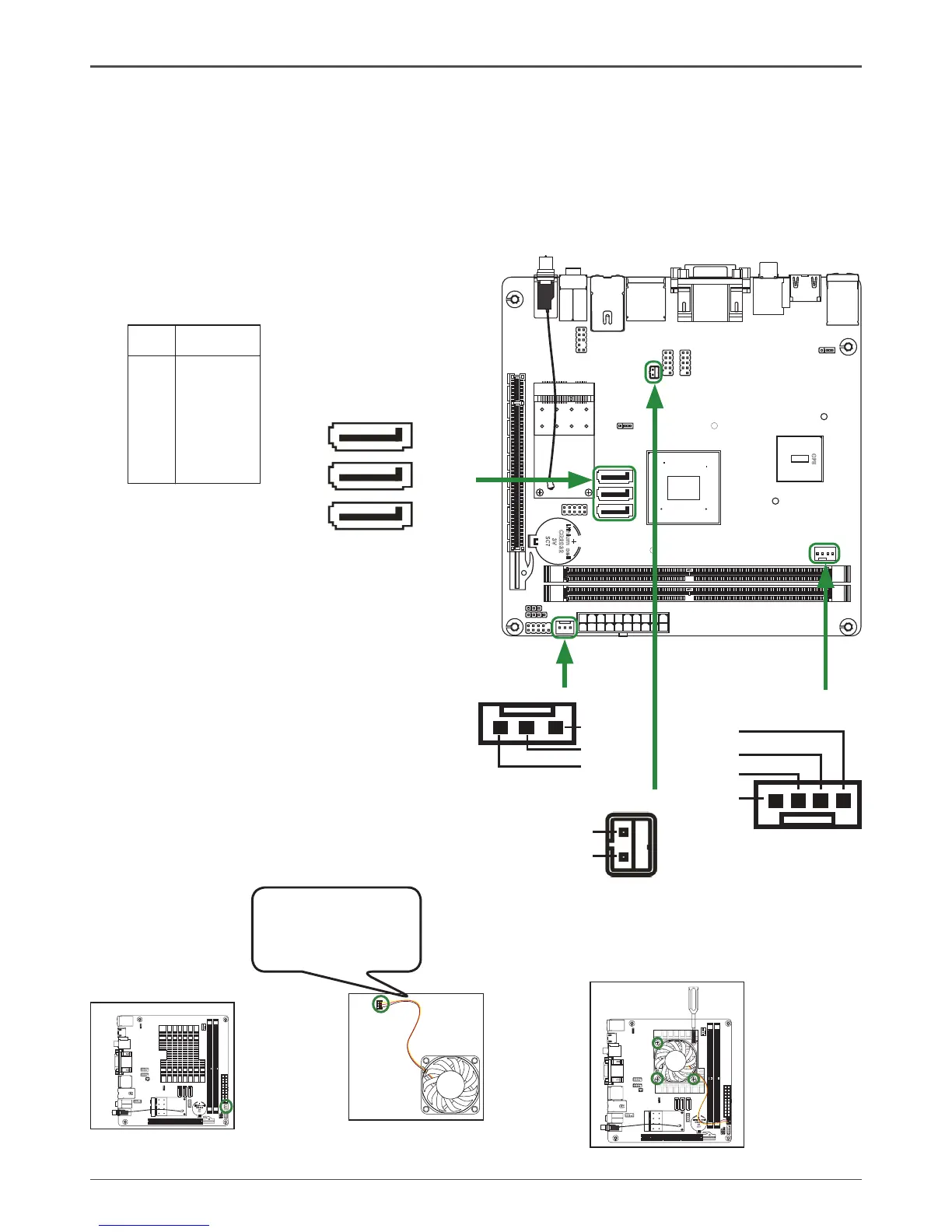

SATA II Pin Definition
Connecting Serial ATA II Cables
The Serial ATA II connector is used to connect the Serial ATA II device to the
motherboard. These connectors support the thin Serial ATA II cables for primary
storage devices. The current Serial ATA II interface allows up to 3Gb/s data transfer
rate.
There are three serial ATA II connectors on the motherboard that support AHCI and
RAID configurations.
Fan Connections
There are three fan connections on
the motherboard. The fan speed
can be detected and viewed in the
PC Health Status section of the
CMOS Setup.
If your system working at a torrid
room,you can append a FAN to the
heatsink.Connect the FAN cable(as
picture 11) to SYS fan connector(as
picture 10) and fixup the FAN on the
heatsink with screw(as picture 12).
CPU FAN Connector
GND
+12V
Sense
Control
CHIP FAN Connector
GND
5V
10
120
240
121
+
� �
�
CPU
Lith ium cell
CR20 32
3V
SC7
120
240
121

120
240
121
+
� �
�
CPU
Lith ium cel l
CR20 32
3V
SC 7
120
240
121
12
11
note:
Fan is only for
330 CPU board!
1 SATA -1
1 SATA -2
1
SATA -3
SYS FAN Connector
Sense
+12V
GND
