Installing Drivers and Software

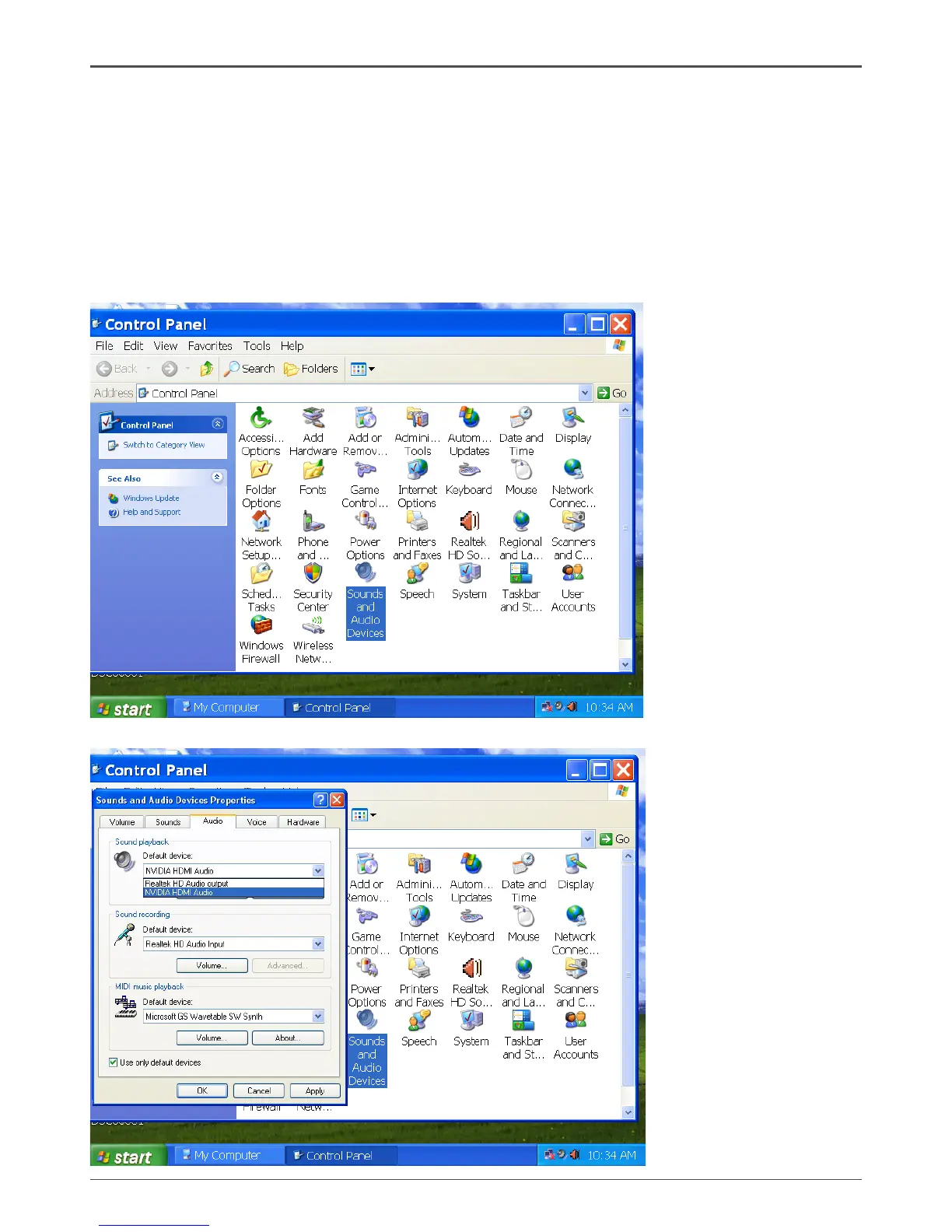

HDMI SETUP
1
.
Y
ou
can connect
HDMI
device to
the
HDMI port
directly
, or
connect to
DVI
port by a DVI - HDMI dongle.
2.
Enter
Contro
l
Panel
,
doubl
e
click
“Sounds
and
Auddio
D
evices”,
select
“NVIDIA
HDMI
Audio” as default play back device, then click ok.
