ZOTAC ZBOX
Getting to know your ZOTAC ZBOX
Front view

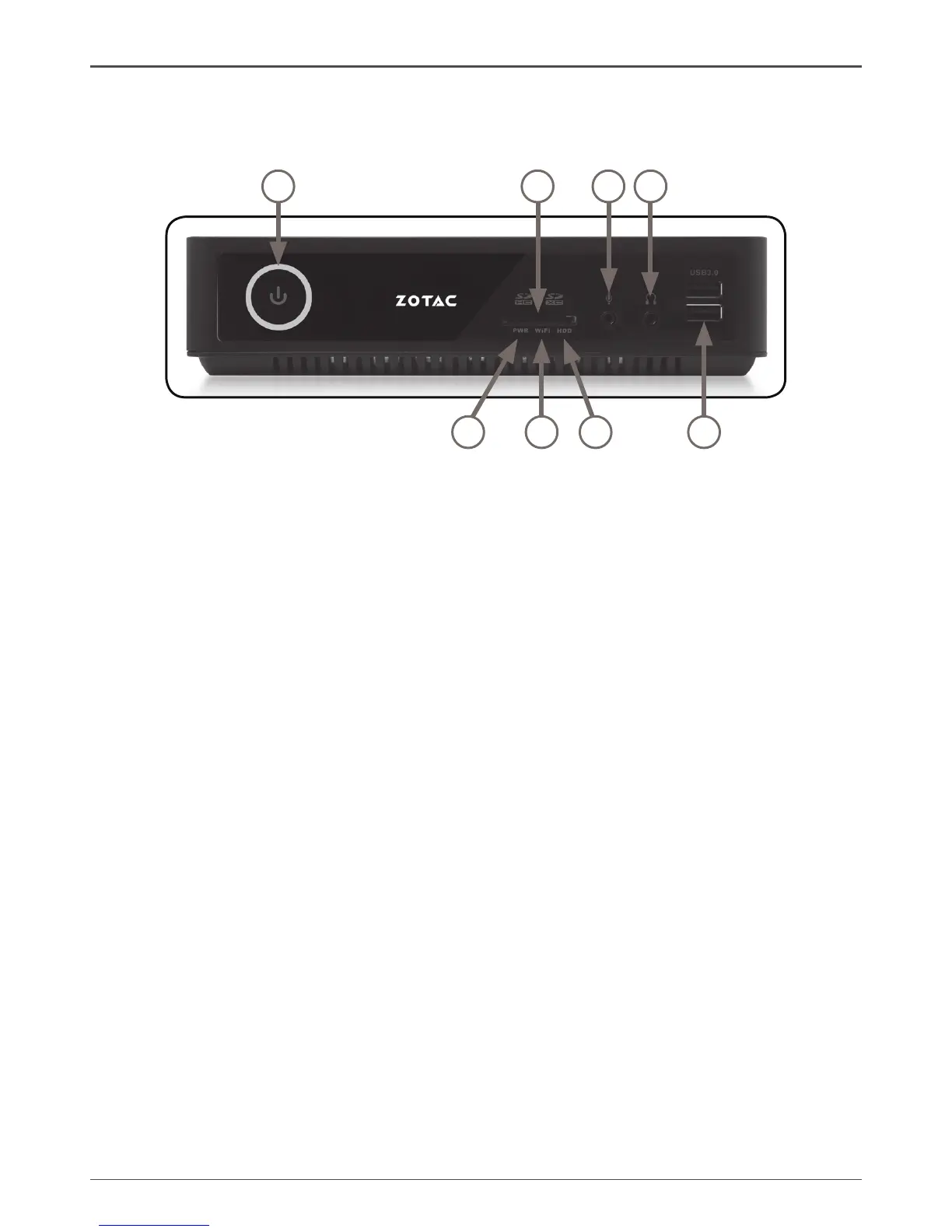

Refer to the diagram below to identify the components on this side of the system
1. Power switch
The power switch allows powering ON and OFF the system. The ring LED can be
disabled in BIOS setting.
2. Memory card slot
The built-in memory card reader reads and writes SD/SDHC/SDXC cards used in
devices such as digital cameras, MP3 players, mobile phones and PDAs.
3. Power LED
The Power LED blinks when power is on.
4. WiFi LED
The WiFi LED blinks when data is being transfered over WiFi.
5. Hard disk LED
The hard disk LED blinks when data is being written into or read from the hard disk
drive.
6. Microphone jack
The microphone jack is designed to connect the microphone used for video
conferencing, voice narrations or simple audio recordings.
7. Headphone/Audio Out jack
The stereo headphone jack (3.5mm) is used to connect the system’s audio out
signal to amplied speakers or headphones.
8. USB 3.0 port
The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards
compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for
maximum performance with USB 3.0 compatible devices.
1
2 7
3 4 5
6
8

Zotac ZBOX series Specifications

General

Series	ZBOX
Processor	Varies by model (e.g., Intel Core i3, i5, i7, or AMD Ryzen)
Graphics	Varies by model (e.g., Intel UHD Graphics, NVIDIA GeForce GTX/RTX)
Memory	Varies by model (DDR4 SO-DIMM slots, capacity varies)
Storage	Varies by model (M.2 slots, 2.5" SATA bays, NVMe support)
Operating System	Varies by model (Windows)
Connectivity	Varies by model (Gigabit Ethernet, Wi-Fi, Bluetooth)
Ports	Varies by model (USB 3.1, USB Type-C, HDMI, DisplayPort, Audio jacks)
Power Supply	Varies by model (e.g., external power adapter, 65W-120W)
Dimensions	Varies by model (e.g., 210mm x 203mm x 62mm)
