Zotac ZBOX series User Manual

7
ZOTAC ZBOX
Rear view

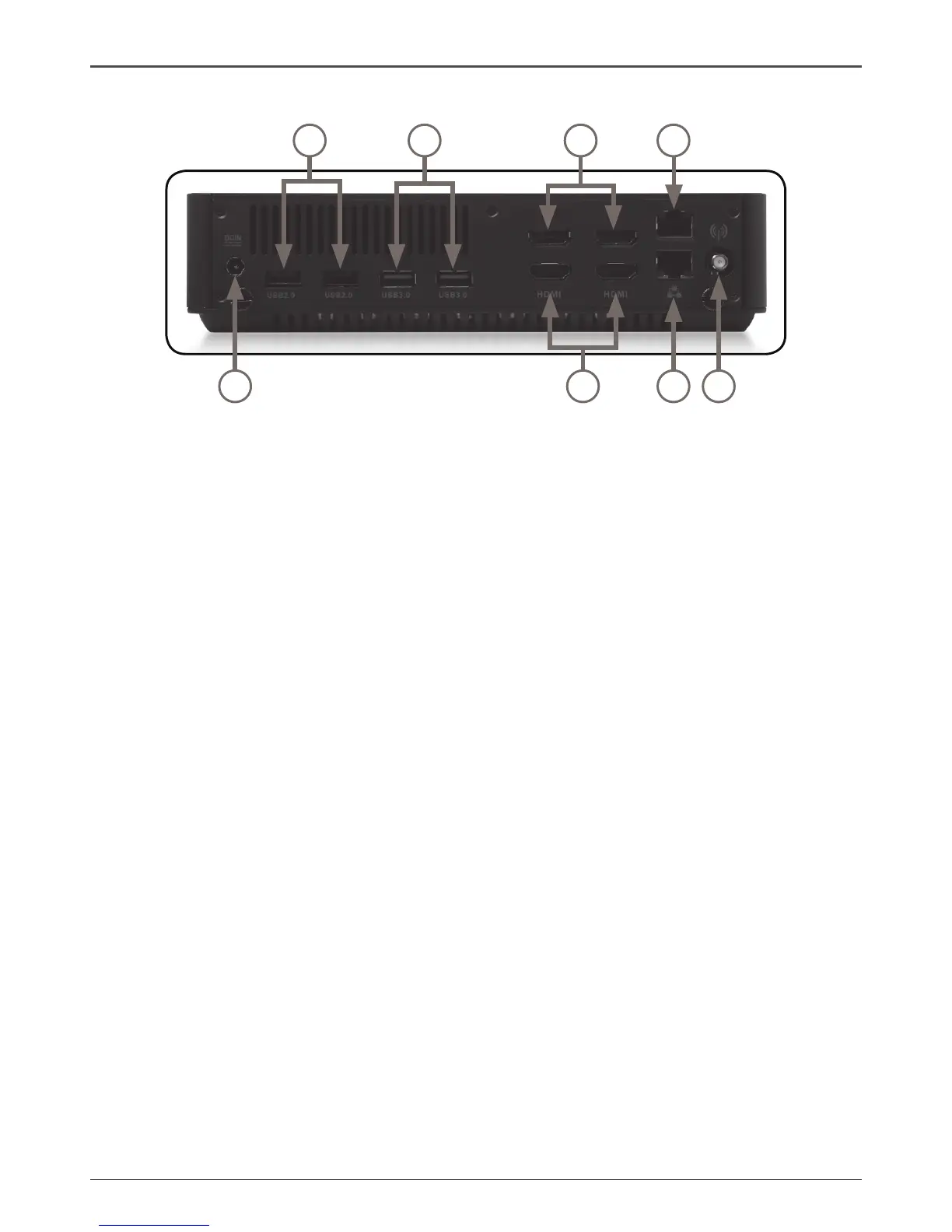

Refer to the diagram below to identify the components on this side of the system.
1. Power input (DC19.5V)
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage to
the PC, always use the supplied power adapter.
2. USB 2.0 ports
The USB (Universal Serial Bus) port is compatible with USB devices such as
keyboards, mice, cameras and hard disk drives.
3. USB 3.0 ports
The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards
compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for
maximum performance with USB 3.0 compatible devices.
4. HDMI ports
The HDMI (High Denition Multimedia Interface) port supports a UHD device such
as an LCD TV or monitor to allow viewing on a larger external display.
5. LAN ports
The eight-pin RJ-45 LAN ports support standard Ethernet cables for connection to
a local network.
6. WiFi antenna connector
The WiFi antenna connector supports WiFi antenna module.

The power adapter may become warm to hot when in use. Do not cover the
adapter and keep it away from your body.
1
2
4
5
6
4
5
3

Zotac ZBOX series Specifications

General

Series	ZBOX
Processor	Varies by model (e.g., Intel Core i3, i5, i7, or AMD Ryzen)
Graphics	Varies by model (e.g., Intel UHD Graphics, NVIDIA GeForce GTX/RTX)
Memory	Varies by model (DDR4 SO-DIMM slots, capacity varies)
Storage	Varies by model (M.2 slots, 2.5" SATA bays, NVMe support)
Operating System	Varies by model (Windows)
Connectivity	Varies by model (Gigabit Ethernet, Wi-Fi, Bluetooth)
Ports	Varies by model (USB 3.1, USB Type-C, HDMI, DisplayPort, Audio jacks)
Power Supply	Varies by model (e.g., external power adapter, 65W-120W)
Dimensions	Varies by model (e.g., 210mm x 203mm x 62mm)
