If a telephone needs to be installed in front of the splitter, the
user must connect a voice filter in the Line port of the splitter;

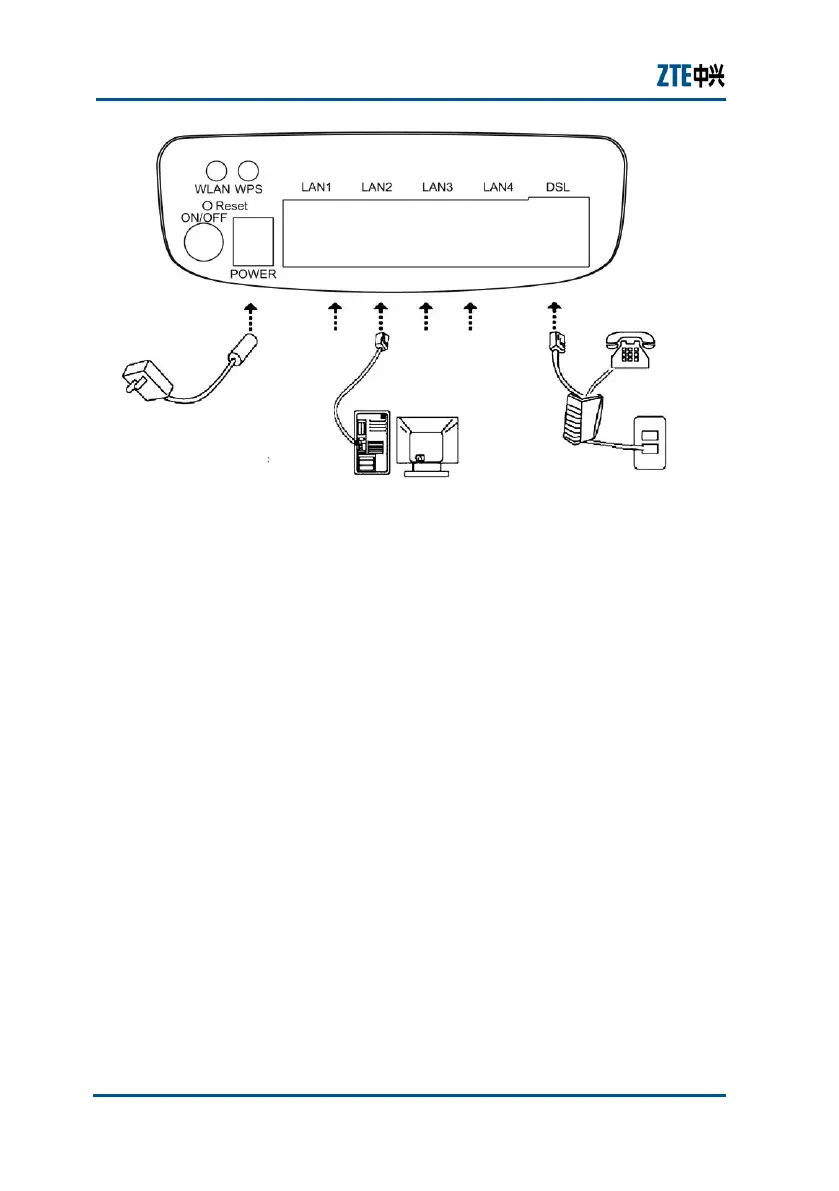

then connect the phone to the splitter’s Phone port. The other
port connections can be referred to Figure 3.
A splitter consists of three ports:
 Line: The port connected to the ADSL subscriber line.
 Modem: The port connected to the ZXHN H108L’s LINE port.
 Phone: The port connected to a phone.
Default Settings
The factory default settings for a ZXHN H108L router are listed as
follows:
 IP address: 192.168.1.1; subnet mask: 255.255.255.0.
 Use the DHCP server by default (i.e., the IP address can be
obtained from the ZXHN H108L automatically via DHCP).
 Line coding: Auto negotiation (T1.413/G.DMT/G.LITE/ADSL2
/ADSL2+).
