ZXMSG 5200 (V2.0) Technical Manual
32 Confidential and Proprietary Information of ZTE CORPORATION

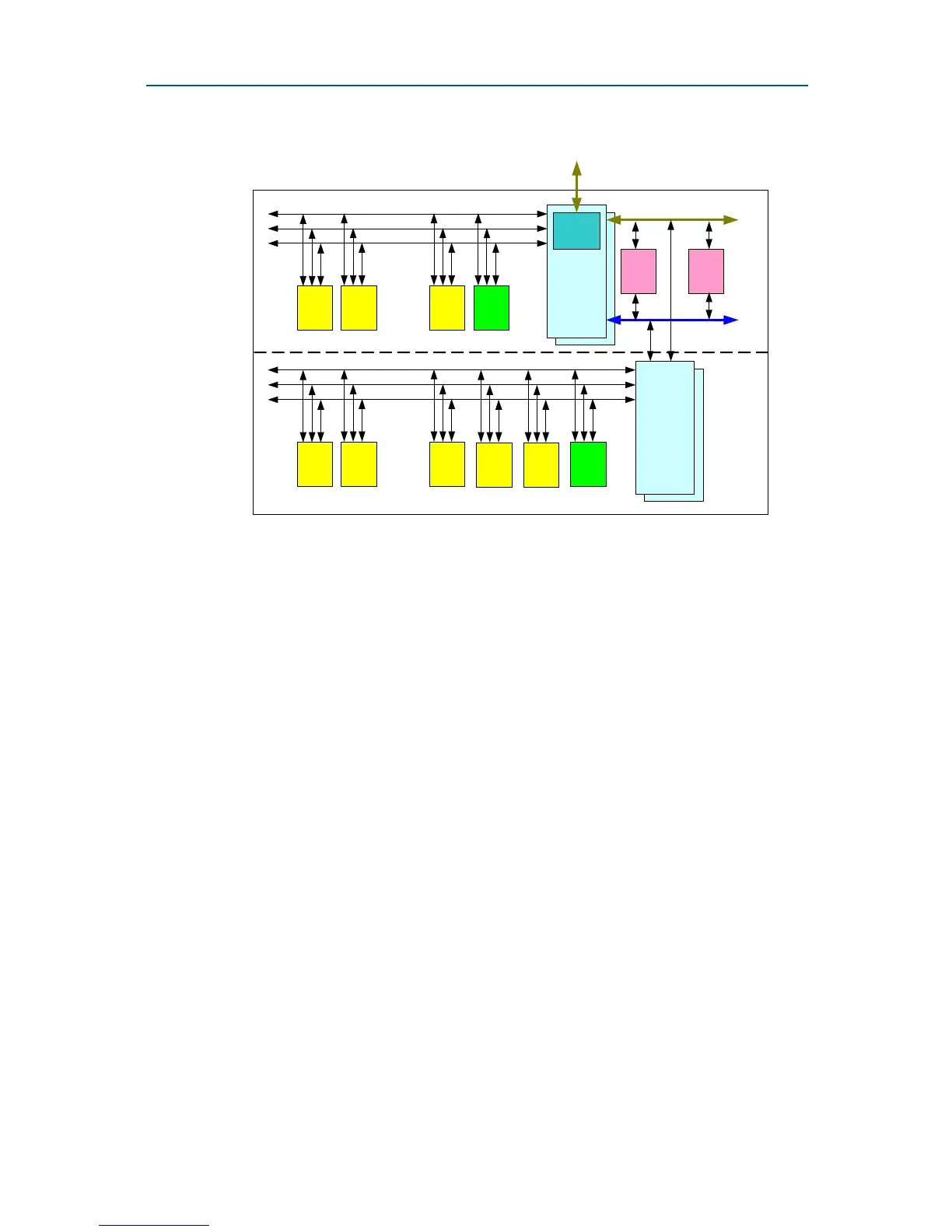

F
IGU R E
5
ZXMSG
5200
H
ARD WARE
S
T R U C T U RE
IC
S
IC
S
LC0 LC1 ... LC9 TSLC
2M Hw
8K,2M,4M Clock
100M Ethernet
LC0 LC1 ... LC9 TSLC
ICS
2M Hw
8K,2M,4M Clock
100M Ethernet
LC10 LC11
MPR MPR
Ethernet
2*8MHw
2*100M
1*8MHw
1*100M
ICS
CNIC
2*100M, 1GE
Control shelf
Subscriber shelf
Structure Layout Diagram
Figure 6 shows the structure arrangement of the ZXMSG 5200 in a
maximum configuration, where there are five shelves, including one main
control shelf and four subscriber shelves. The board is 6U high.
The system supports maximum 1,856 lines of narrowband subscribers,
where the main control shelf serves 320 lines and the extension shelf
serves 384 lines; supports maximum 928 lines of ADSL subscribers, where
the main control shelf serves 160 lines and the extension shelf serves 192
lines.
