O&M Provision
Network Management System (NMS)
The ZXNM01 network management system used by the ZXMSG 5200
implements the “NM server + debugging and management terminal”
functions and can meet maintenance management demands. Authorized
users can log on the NMS at any maintenance location and visit the
ZXMSG 5200 equipment.
The NMS implements the following functions: Equipment information
management, topology management, security management, log
management, policy management and alarm management.
Figure 14 shows module positions in the system.

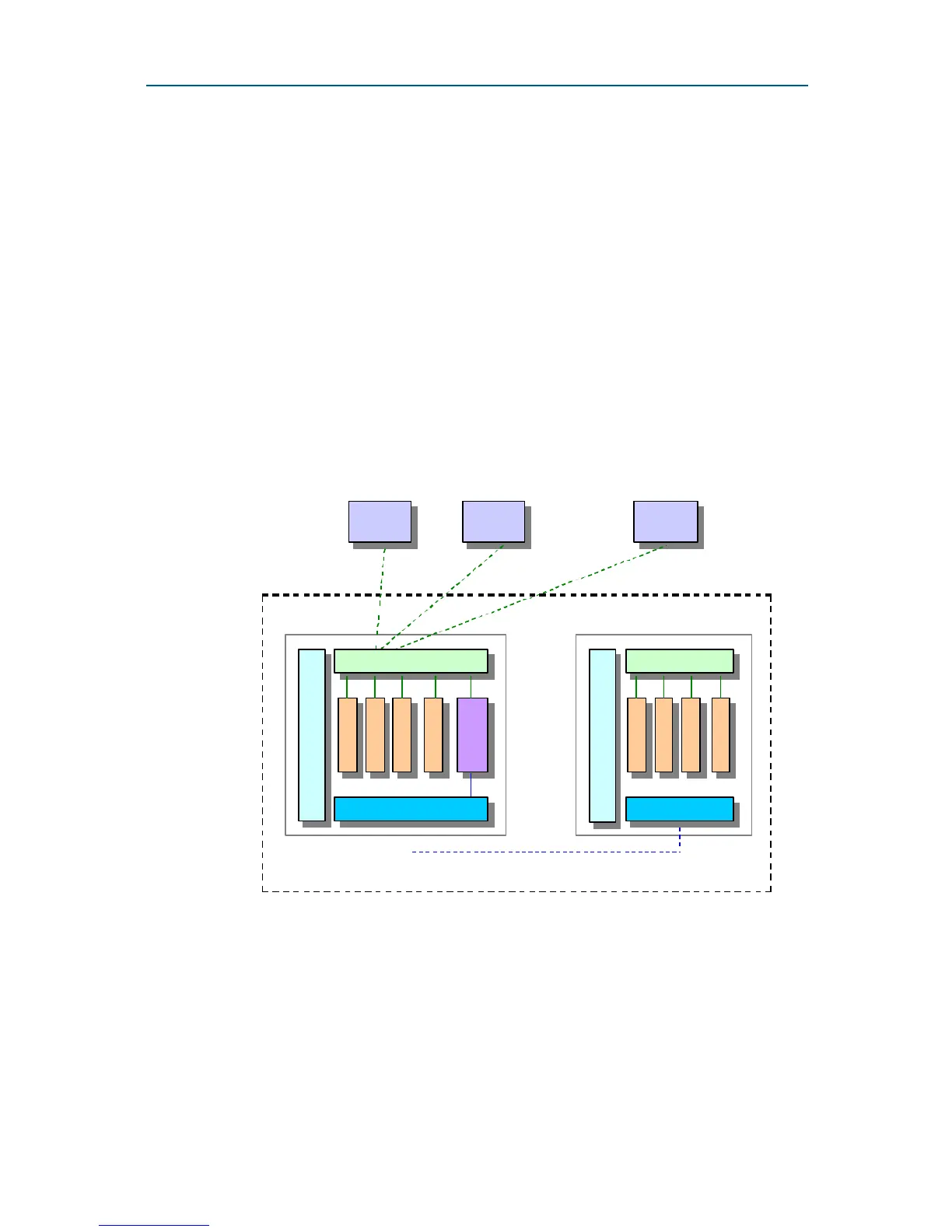

F IGU R E 14 S OFT WAR E C OM P OSIT ION OF T H E NMS
Centralized
maintenance module
拓
扑
管
理
Topology
management
ZXMS
G
ZXMSG
ZXMS
G
ZXMSG
ZXMS
G
ZXMSG

安
全
管
理
Security
management
日
志
管
理
Log
management
策
略
管
理
Policy
management
告
警
服
务
器
Alarm server
NM alarm server + NM client
TCP/
IP
󳖏󳄤󰾖
拓
扑
管
理
Topology
management
安
全
管
理
Security
management
日
志
管
理
Log
management
策
略
管
理
Policy
management
NM client
TCP/
IP
󳖏󳄤󰾖
TCP/
IP
󳖏󳄤󰾖
TCP/IP communication module
TCP/
IP
󳖏󳄤󰾖
设
备
信
息
管
理
Equipment information
management
设
备
信
息
管
理
Equipment information
management
TCP/IP communication module
TCP/IP communication
module
TCP/IP communication
module
Telnet O&M System
Telnet O&M system performs operation and maintenance by directly
logging on the foreground system from the terminal. The system
implements such functions as data configuration, performance statistics,
file management, version management and diagnostic test.
