ZXR102900ESeriesCongurationGuide

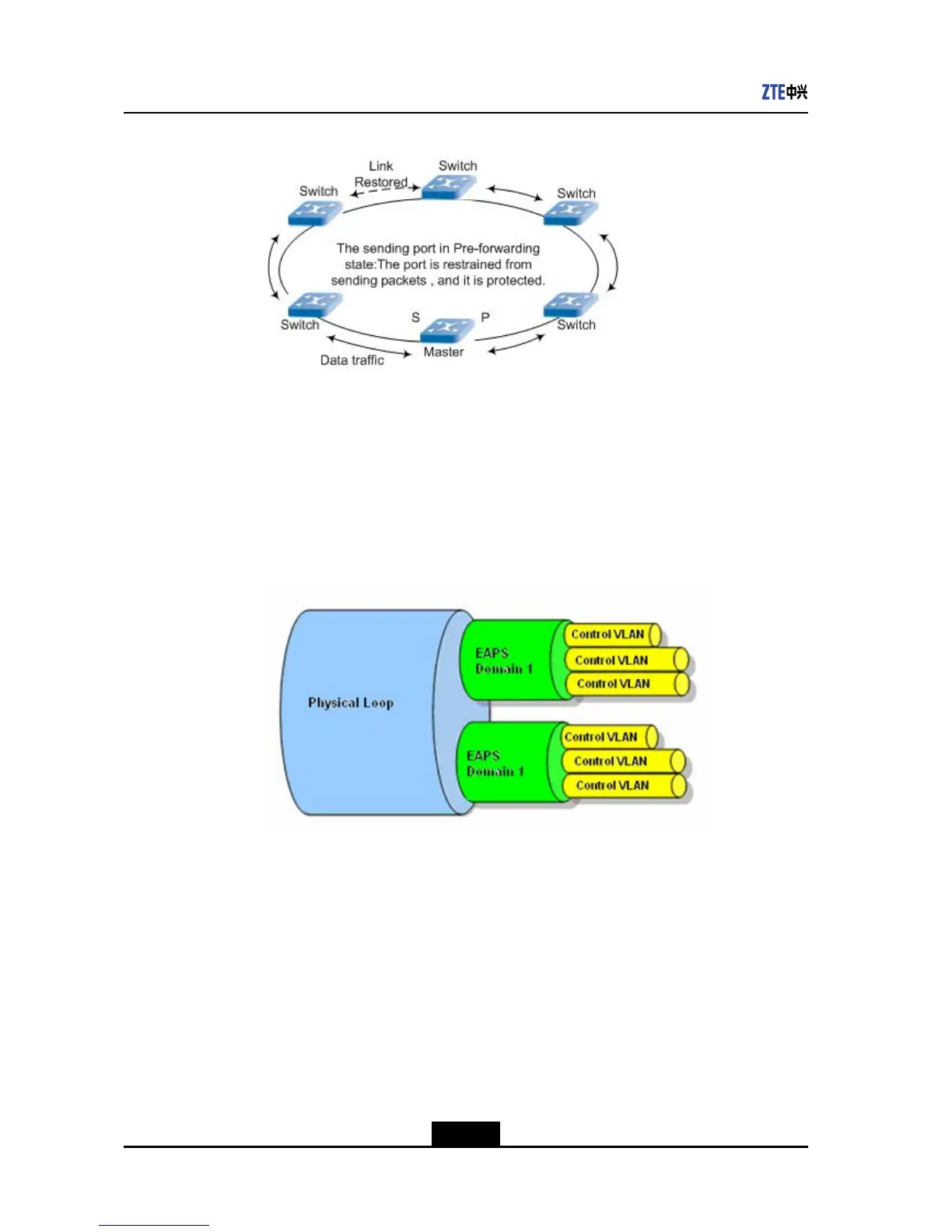

Figure4-35ZESRrunningstatewhentheringis“linkrestore”
lMulti-RingMulti-DomainZESR
àPrincipleofMulti-RingMulti-DomainZESR
ZESRdomainconsistsofmanyswitches,whichareconguredwiththe
samedomainID,controlVLANandprotectionVLAN.Theseswitchesare
interconnected.OneormoreEAPSdomainsexistonaphysicalloop.Each
EAPSdomaindenesitsmasternode,transmissionnodeandassistantnode.
Figure4-36Multi-RingMulti-Domain
4-96
SJ-20120409144109-002|2012-07-02(R1.0)ZTEProprietaryandCondential
