Zte ZXR10 2910E-PS User Manual

ZXR102900ESeriesCongurationGuide
CommandFunction
showdhcprelayoption82port<1-28>(allcongurationmodes)
DisplaystheDHCPrelayoption82
congurationoftheport.
showdhcprelayoption82device(allcongurationmodes)
Displaysdevice-relatedinformation,
includingANIandremote-ID.
zte(cfg-router)#setipport<0-63>dhcprelay{agent|server<A.B.C.D>}
SetstheDHCPrelayinformationof
ipport.
zte(cfg-router)#clearipport<0-63>dhcprelay{agent|server<A.B.C.D>}
ClearstheDHCPrelayinformationof
ipport.
DHCPCongurationInstance
lCongurationDescription
AsshowninFigure4-63,switchport1isconnectedtotheDHCPclient,andswitch
port2isconnectedtotheDHCPserveroftheIPnetwork.

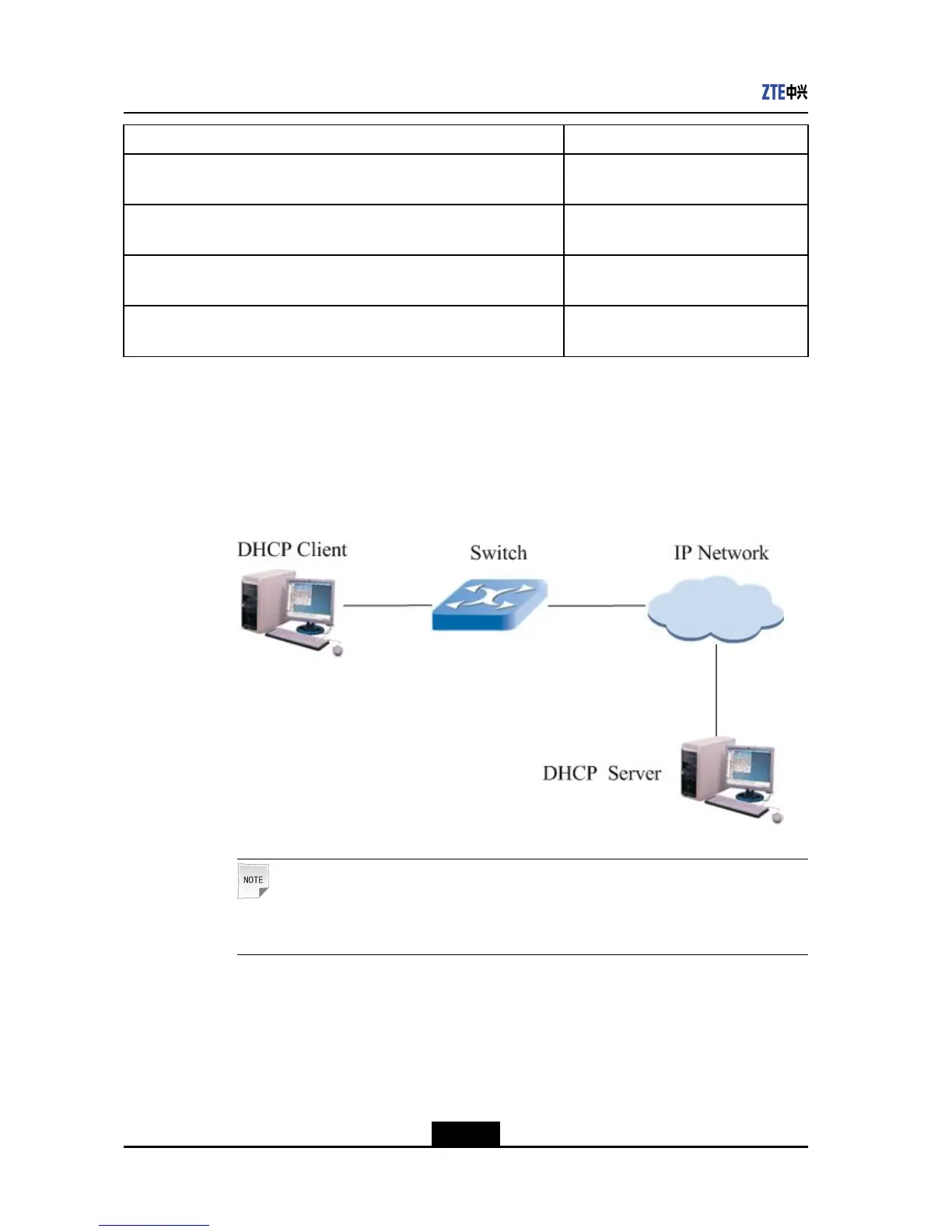

Figure4-63DHCPRelayCongurationInstance
Note:
TheDHCPclientandtheDHCPserverareindifferentnetworksegments.
lCongurationProcedure
1.AssignaspeciedVLANtotheport:
setvlan1000addport2tag
setvlan1000enable
2.ConguretheDHCPrelaybyusingthefollowingcommands:
zte(cfg)#setdhcprelayenable
4-152
SJ-20120409144109-002|2012-07-02(R1.0)ZTEProprietaryandCondential

Zte ZXR10 2910E-PS Specifications

General

Model	ZXR10 2910E-PS
Category	Switch
PoE	Yes
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Layer	Layer 2
MAC Address Table	8K
VLANs	4K
MTBF	> 100, 000 hours
Dimensions (W x D x H)	440 x 220 x 44 mm
Weight	3.5 kg
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Jumbo Frame	9K bytes
Power Supply	AC 100-240V, 50/60Hz
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
