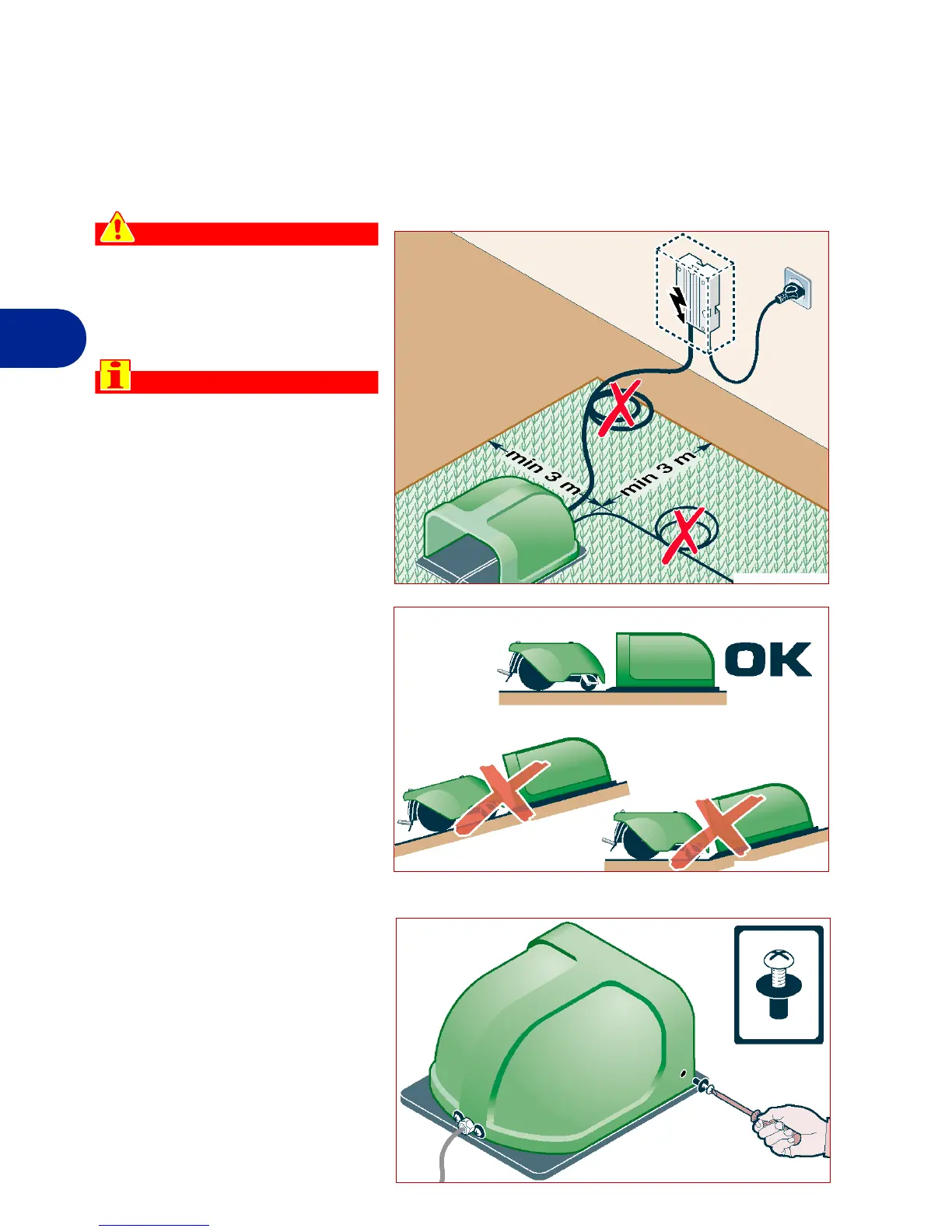

Installation of transformer and recharging base
The transformer must be protected
from weather conditions, possibly by an
adequately insulating cover (e.g. IP67), it
must be kept away from children and
connected to the electric power line. In-
stallation must be carried out correctly
and according to current legislation.
To connect the transformer to the pow-
er supply line, a standard electric plug is
needed.
Danger - Attention
The transformer connection to
the recharging base must be
performed with the power sup-
ply disconnected.
Important
The distance between the trans-
former and the garage or perim-
eter cable should not be less
than 3 meters and the cables
should never be entangled.
The best position for the recharg-
ing base is at the limit of the work-
ing area, on a flat, stable surface,
with good drainage to avoid flood-
ing.
Perimeter cable - recharging base connection
1-Remove recharging base pro-
tection
2-Place recharging base in the
pre-established area.
IDM - 41500900200.tif
IDM - 41500903700.tif
IDM - 41500901100.tif
