Zycoo SC10 - Advanced Settings; Volume

Advance SIP Settings
• Local Port: This setting represents the port used to receive SIP packets.
• RTP Start Port: This setting represents the starting RTP port that will use for
media sessions.
• RTP End Port: This setting represents the end RTP port that the system will
use for media sessions.
• RTP Timeout (sec): This setting means that within a specific time range, if the
system does not receive the RTP stream, the call will end.
• Jitter Buffer: This setting represents the Jitter buffer where voice packets
can be collected, stored, and sent to the voice processor in even intervals. Three options
are provided, off/adaptive/fixed. A fixed jitter buffer adds a fixed delay to voice packets.
An adaptive jitter buffer can adjust based on the delays in the network.
• SIP Autoanswer beep: Enable/Disable. This setting represents the ringtone beep
when a call comes and only applies when the SIP Autoanswer feature is enabled.
Advanced Settings

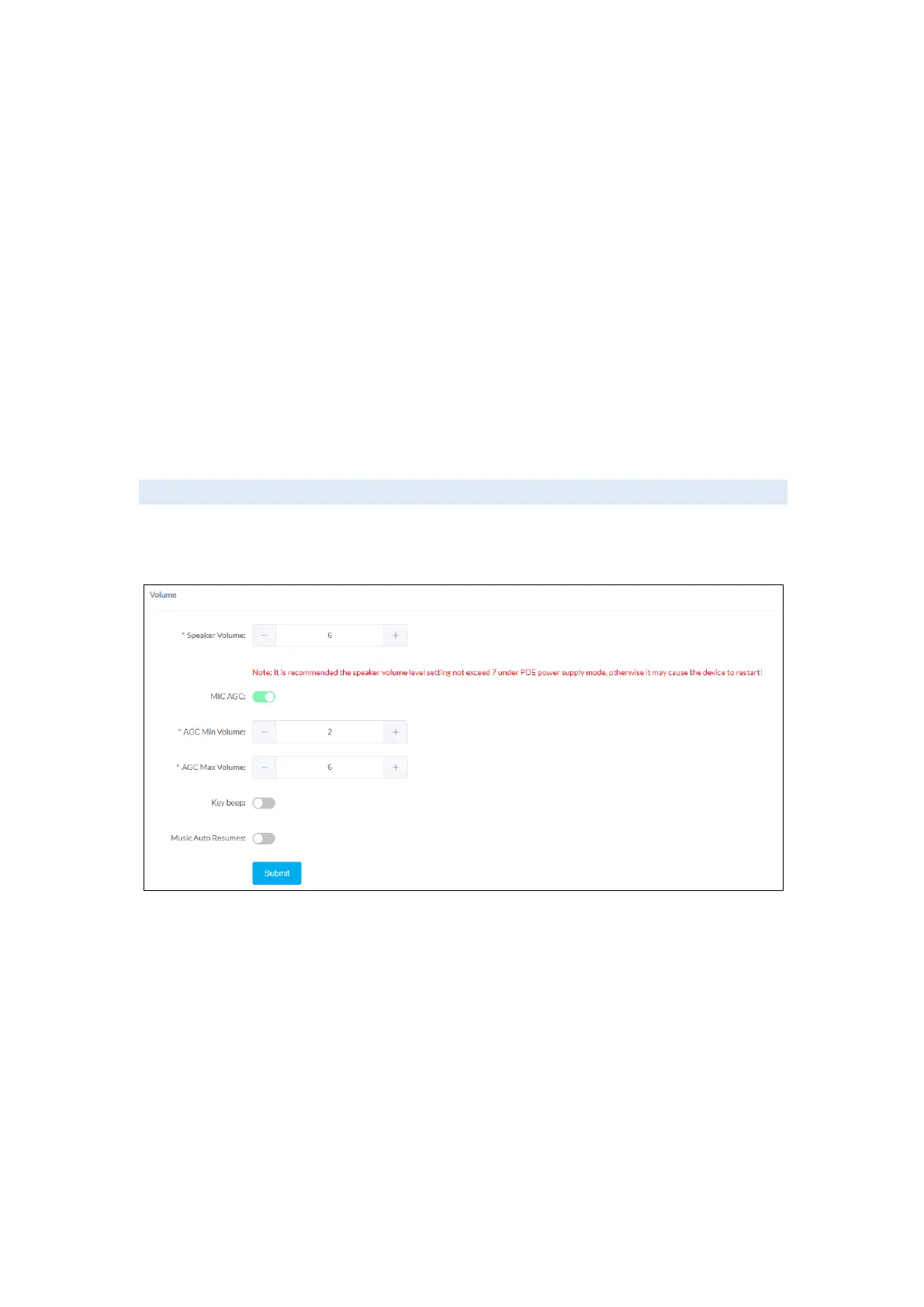

Volume
The network speaker’s volume level can be adjusted from its web management interface, on
the Settings -> Volume Control page.
• Speaker Volume: The default speaker volume is 7, adjustable range is 0 ~ 9.
Note: The below setting parameters are only available for hardware
version 1.1 or above of SC10 & SC15 & SW15.
• MIC AGC: When this setting is enabled, the system will automatically
adjust the microphone volume according to the environment. Users are able to adjust the
microphone volume manually when this setting is disabled.
• AGC Min Volume: This setting represents the minimum value of the automatic
gain control.
• AGC Max Volume: This setting represents the maximum value of the automatic
gain control.
• Audio Input Volume: The default volume for the input audio source is 7, adjustable
range is 0 ~ 9.
• Key Beep: Enable/Disable the beep sound from the key button.
