Hardware Connections

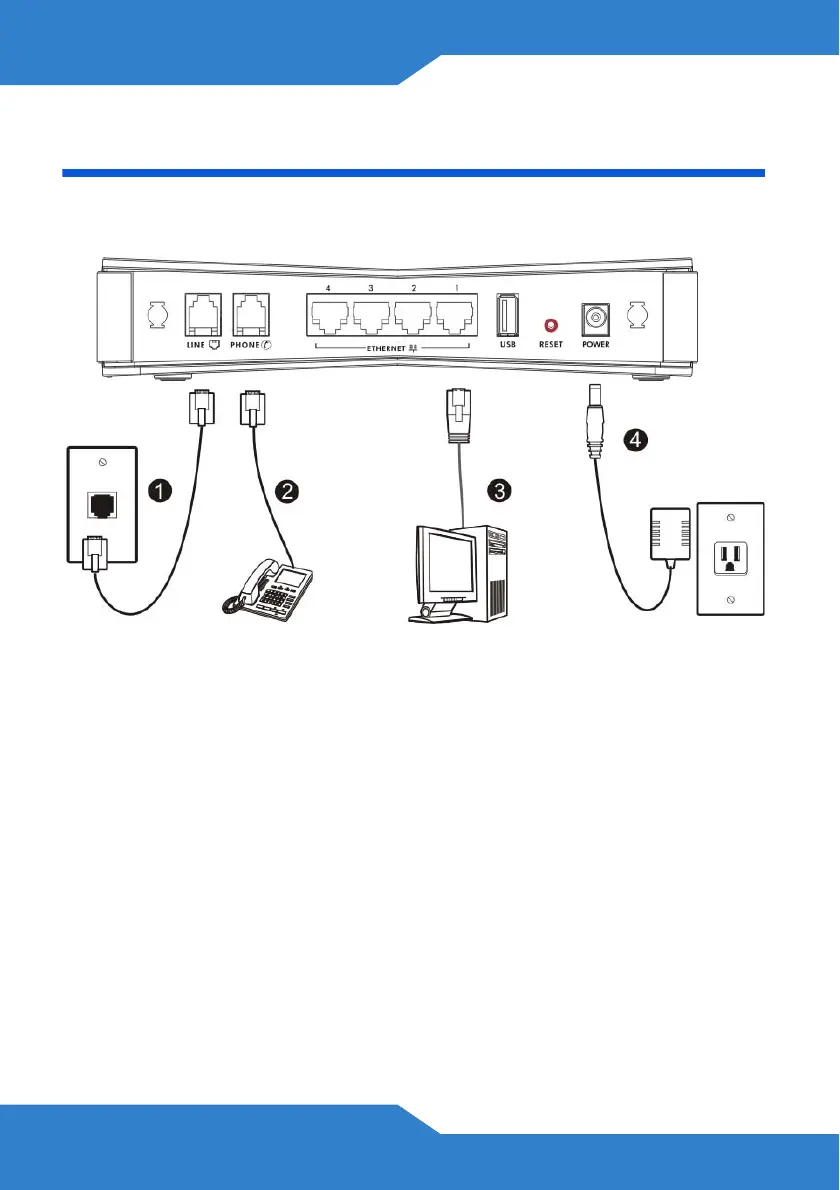

This section shows you how to set up your Q1000Z.
1. LINE: Use a telephone wire to connect this port to the telephone jack
or wall outlet.
2. PHONE: Use another telephone wire to connect this port to your
telephone.
3. ETHERNET: Use an Ethernet cable to connect a computer to this port
for initial configuration and/or Internet access.
4. Use the power adaptor provided with your Q1000Z to connect an
appropriate power source to this socket.
As of writing, the USB port is reserved for future use.
