2easy DT 2-wire - Monitor; Features; Electronic Specifications

13
Monitor
Features
• Touch screen optional.
• 128 pieces color picture memory optional.
• Using DIP for Monitor ID setting.
• Using plugin connector.
• On screen namelist for intercom.
• No additional power supply needed(supplied by system).
• TVOUT function for connecting the TV.
• Additional door bell call button
• External ringer connection
Power supply: 24Vdc(supplied by DPS)
Power Consumption: 1W in standby, 10 W in working
Working Currency: Max.30mA in standby, 500mA in working
TV output signal: 1V
pp
CVBS
External Ringer: 12Vdc 100mA
Electronic Specications
POWER
INTERCOM
UNLOCK
TALK/
MONITOR
+
-
IN-USE

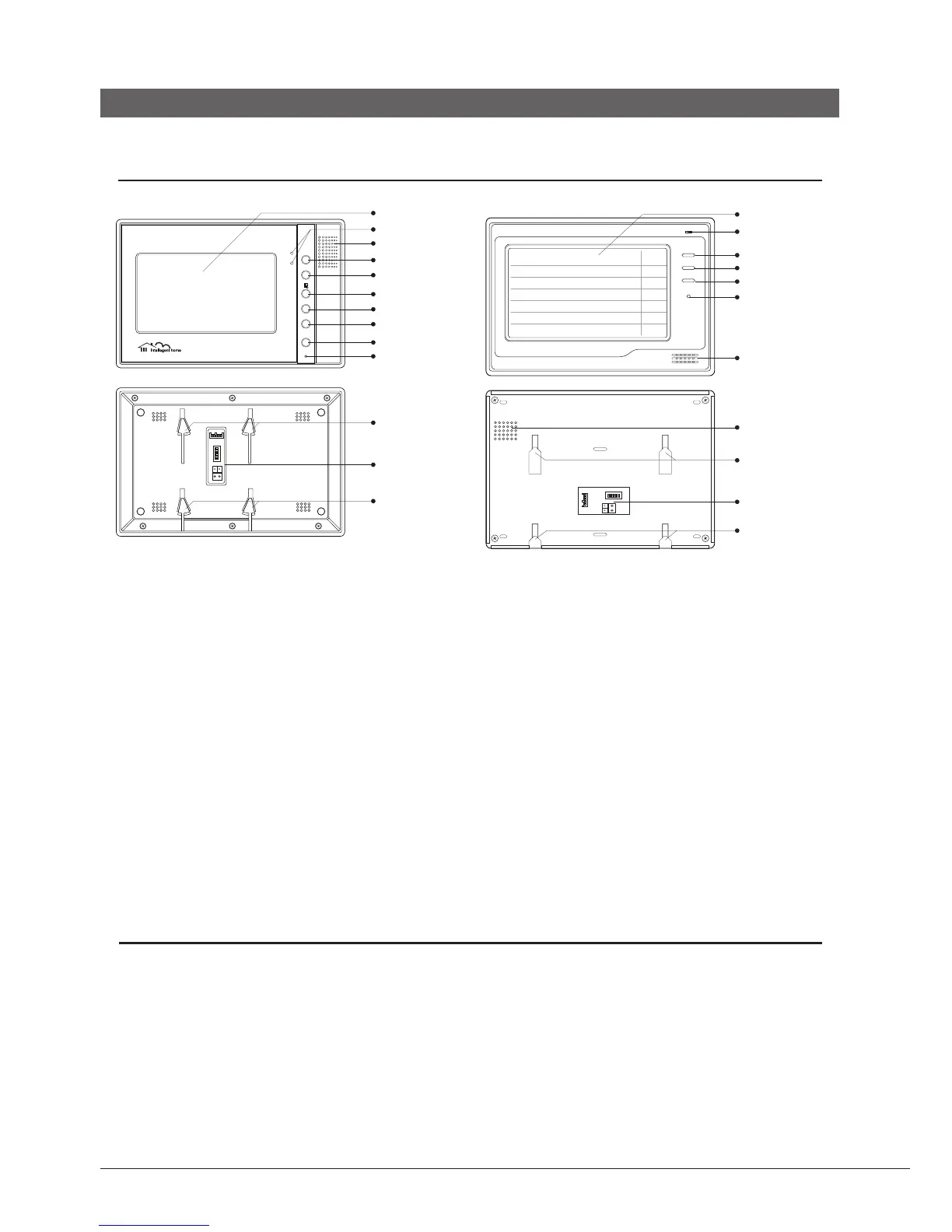

LCD screen
+ Button
Speaker
- Button
MENU Button
INTERCOM Button
UNLOCK Button
TALK/MON Button
Microphone
LED Indicator
Connection Port
Mounting Hook
Mounting Hook
1 2 3 4 5 6
ON
DIPS
L1
BT1 BT2 EH GND VD
L2
CALL
UNLOCK
TALK/MON
IN-USE
LCD Touch Screen
LED indicator
UNLOCK button
CALL button
TALK/MON button
Speaker
Connection Port
Ventilation Vent
Mounting Hook
Mounting Hook
Microphone
1 2 3 4 5 6
ON
DIPS
L1
BT1
BT2
EH
GND
VD
L2
