2easy DT 2-wire - System Accessories

19
Accessories

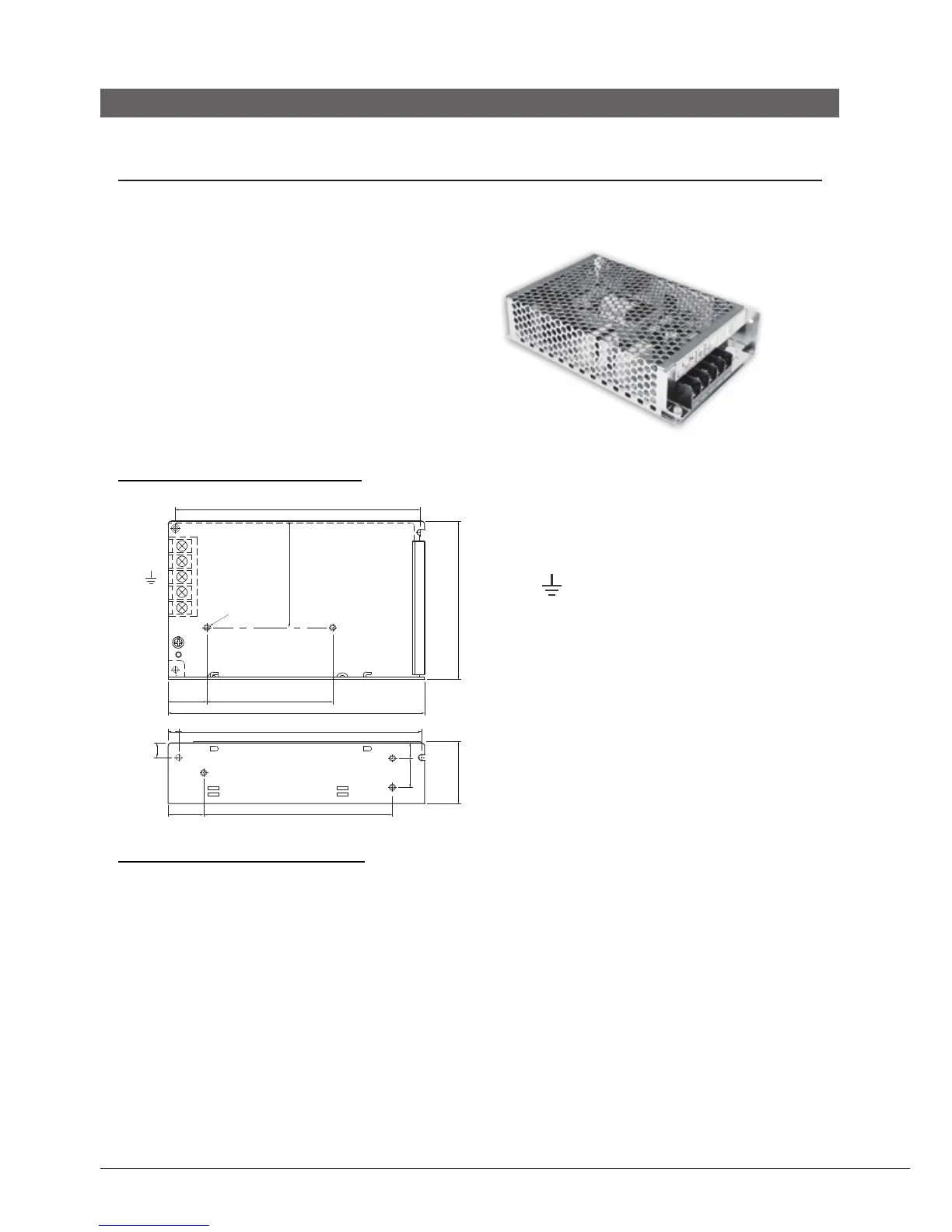

PS5  Power Supply
The PS5 power supply unit is designed for DT system to supply up to 32 Monitors and total 4 Door Stations at the
same time.
• Universal AC input/full range.
• Multi protection: short sircuit, overload, over voltage
• Cooling by free air convection
• DIN rail mounting.
• Support up to 32 Monitors
• Support up to 4 Door Stations.
Dimension and Terminal
•
L(AC):
AC input.
•
N(AC):
AC input.
•
:
Earth Ground.
•
V-:
DC power output.(21.5~26.5 adjustable)
•
V+:
DC power output.(21.5~26.5 adjustable)
•
VADJ:
Output voltage adjustment.
•
LED:
Working state indicator.
Input Voltage: 85~260Vac, 120~370Vdc
Input Frequency: 47~63 Hz
Leakage Current: >2mA / 240Vac
AC current (TYP.) 1.5A /150Vac, 0.9A / 230Vac
Output VADJ range: 21.5~26.5 Vdc adjustable
Rated Voltage: 24Vdc
Rated Current: 3.2A
Rated Power: 76.8W
Electronic Specications
VADJ
LED
9
152.5
L (AC)
N (AC)
V-
V+
79
56
2-M3
1506.5
78
24
159
22 117
Unit: mm
9
81
83
