2easy DT 2-wire - 5. 4 Door Stations and Star Wiring Mode

DT  System  Technical Guide 34

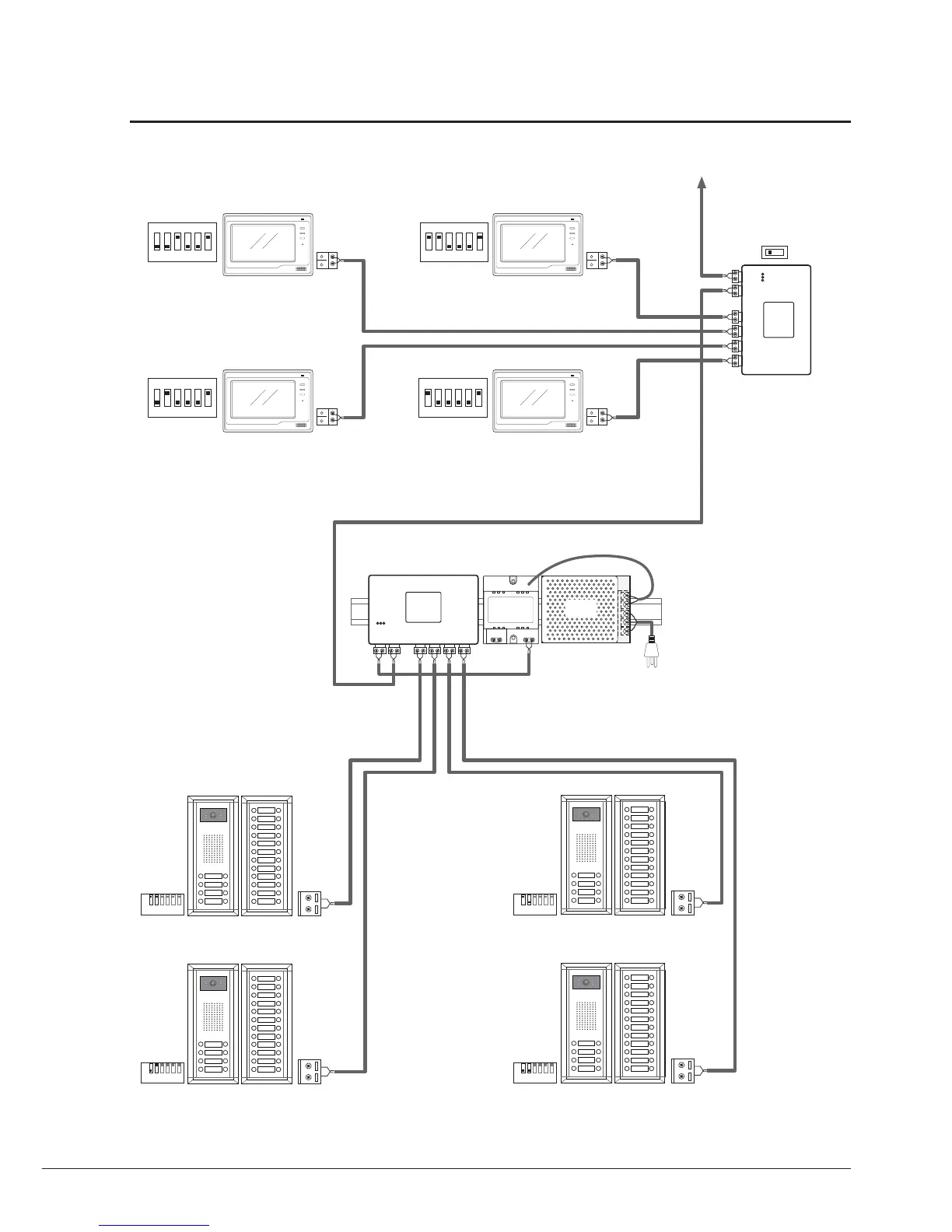

5. 4 Door Stations and star wiring mode
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
HI
ID=00
1 2 3 4 5 6
ON
ID=01
1 2 3 4 5 6
ON
ID=10
1 2 3 4 5 6
ON
ID=11
1 2 3 4 5 6
ON
DBC-4
A B C D
IN
OUT
85~260VAC
DPS
PS5
Code=4, DIP-6=on
CALL
UNLOCK
TALK/MON
IN-USE
Code=3, DIP-6=on
Code=2, DIP-6=on Code=1, DIP-6=on
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
DPS-4
A B C D
BUS
