2easy DT 2-wire - IN -OUT Wiring with One -User Distributor

DT  System  Technical Guide 32

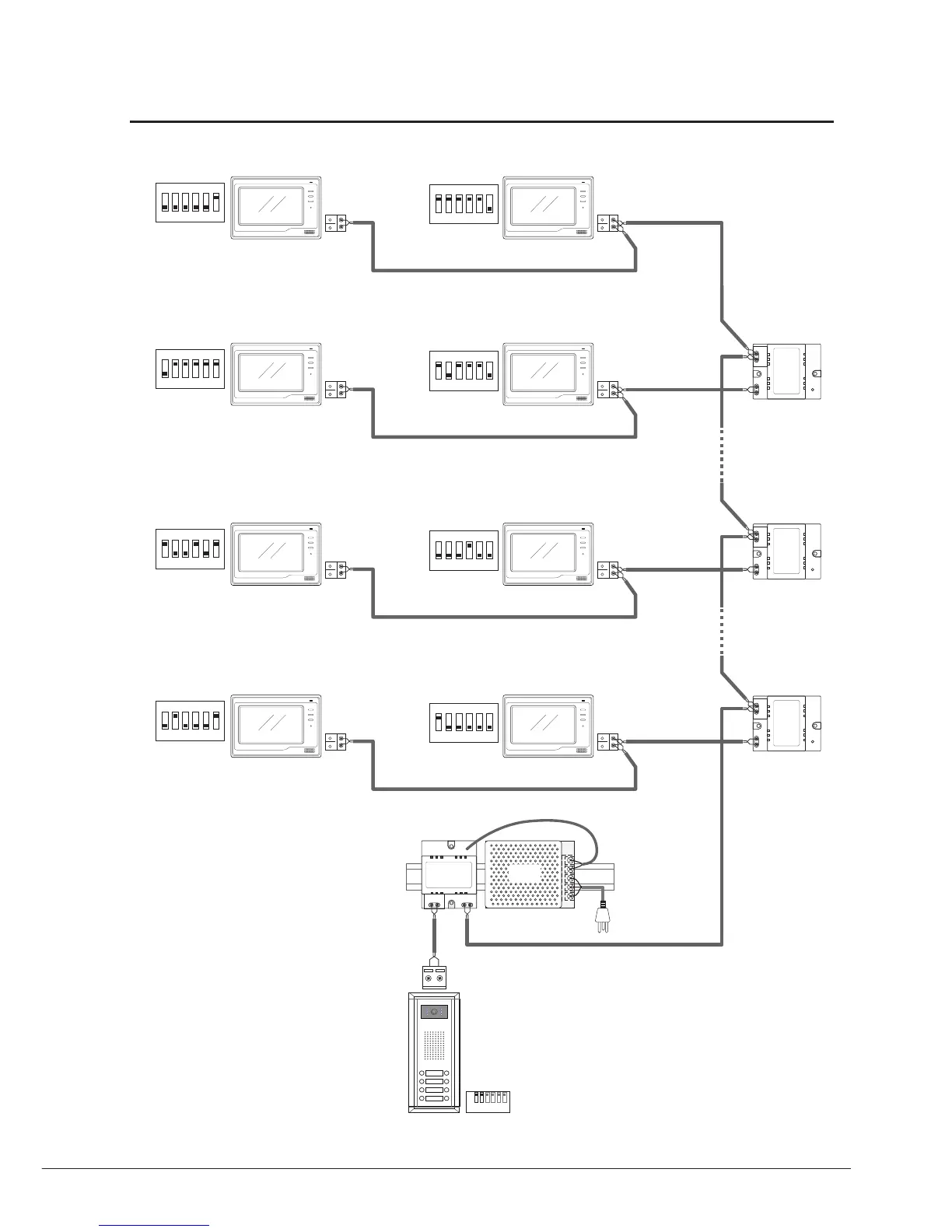

3. INOUT wiring with Oneuser distributor
ID=00
1 2 3 4 5 6
ON
85~260AC
DPS
PS5
DBC
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
Code=30, DIP-6=on
Code=29, DIP-6=off
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
Code=32, DIP-6=on
Code=31, DIP-6=off
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
DBC
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
Code=9, DIP-6=on
Code=8, DIP-6=off
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
DBC
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
Code=2, DIP-6=on
Code=1, DIP-6=off
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
