2N EasyGate User Manual

3
2.2. External Antenna Connection
Screw the antenna enclosed into the SMA antenna connector. Tighten the antenna
connector gently with your hand - never use wrenches!
The antenna enclosed has a sufficient gain for trouble-free operation in normal
conditions. If the GSM signal is poor or you want to place your antenna separately from
EasyGate, you can use an antenna with an SMA-connector terminated cable (not
included in the delivery). The antenna should be mounted vertically.
For antenna and cable parameters see the “Technical Parameters“.
2.3. SIM Card Installation
Make sure that the GSM provider’s SIM card is compatible with the GSM network
supported by your EasyGate version.

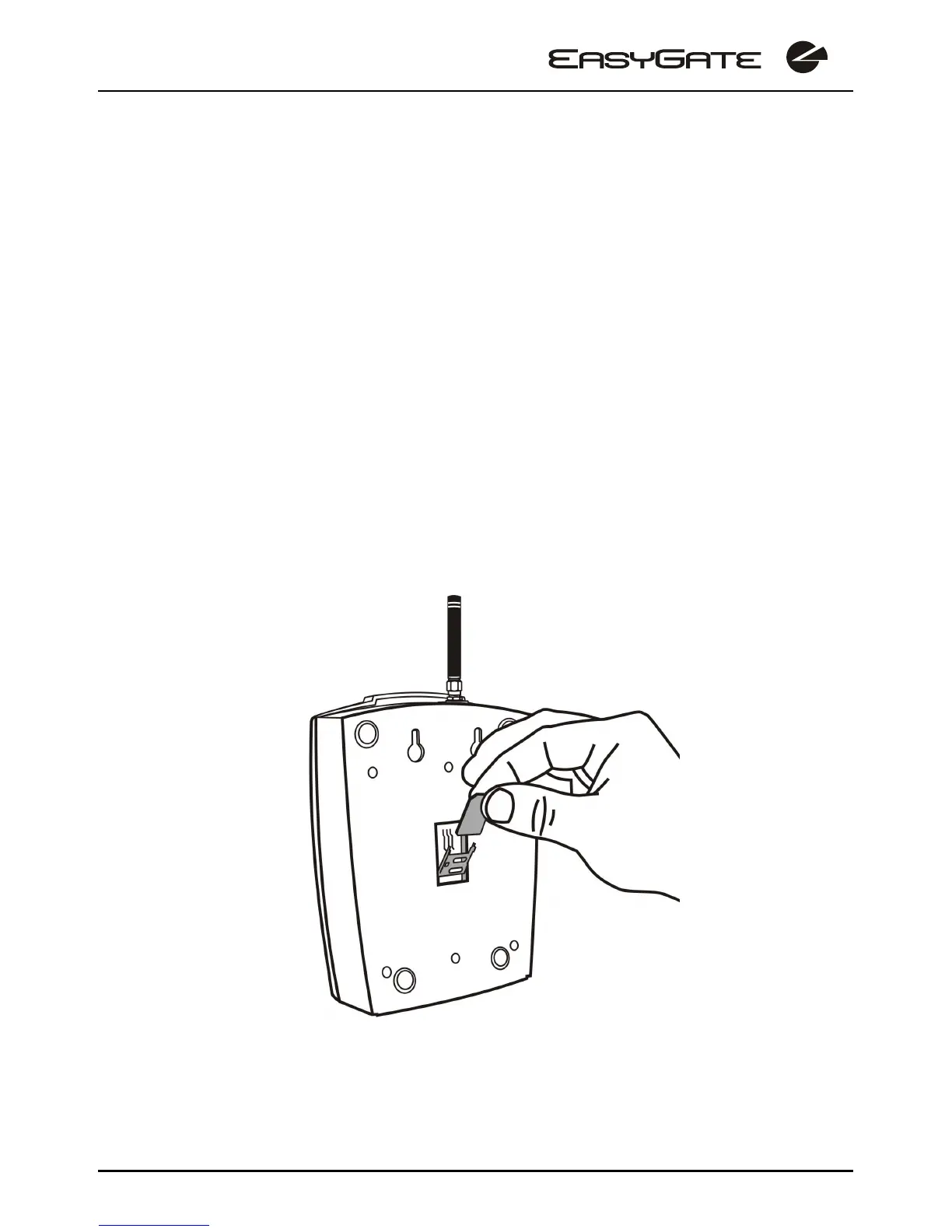

Open the SIM card holder on EasyGate’s backside, insert the SIM card and close it.
Select the required GSM provider and SIM card services, such as call forwarding, call
barring, preferred networks, SMS service centre, etc. in your mobile phone before
inserting your SIM card in EasyGate.

2N EasyGate Specifications

General

Device type	Cellular network gateway
Market positioning	Business
Data network	GPRS, GSM
GSM bands supported	850, 900, 1800, 1900 MHz
GPRS multislot class	10
Input voltage	12 V
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Dimensions (WxDxH)	170 x 130 x 45 mm
