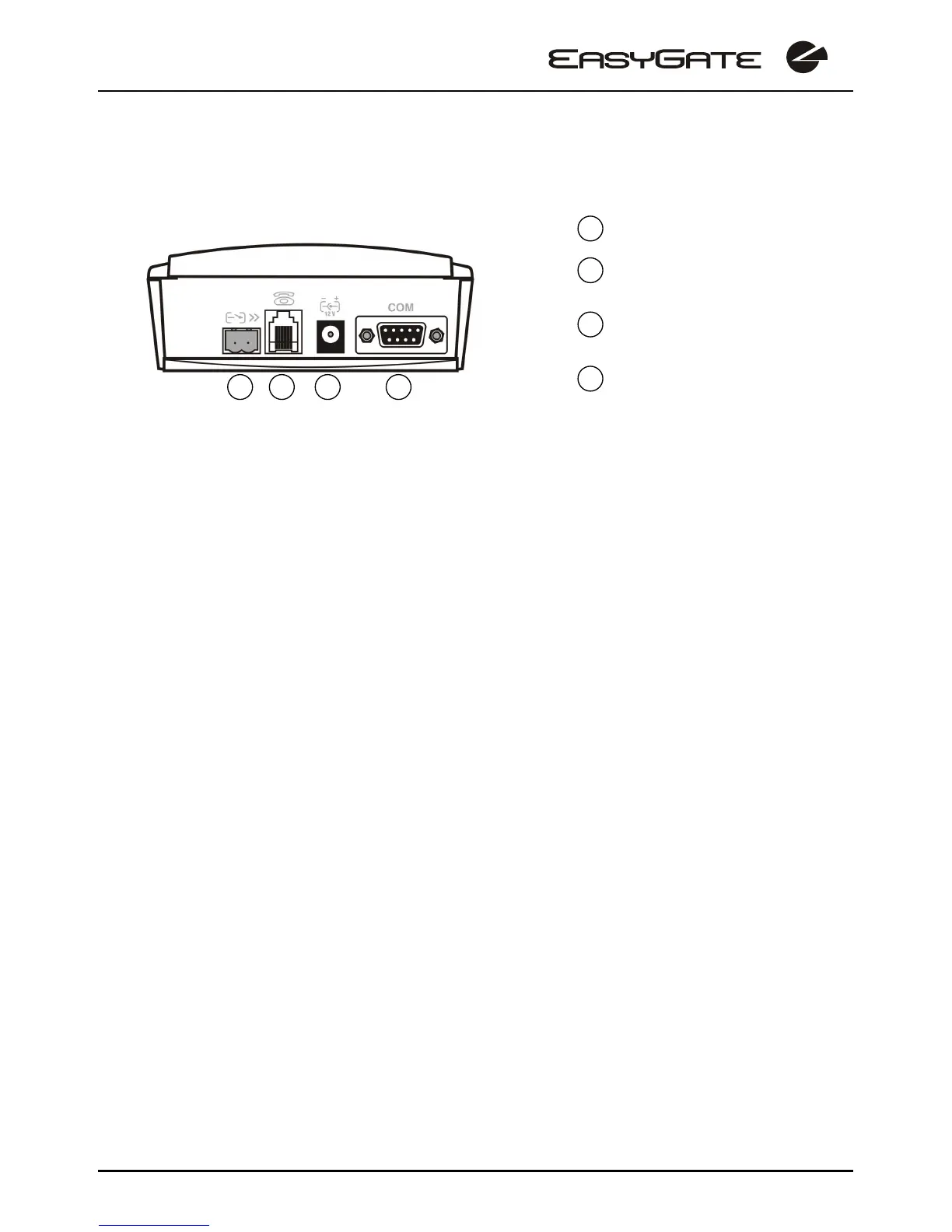

2.4. Connector description
SMS sending input
Telephone line
RJ 12, 6/2
Power supply connector
DC Jack 2,1mm
RS232C serial line
D-Sub 9 pins
2.5. Telephone Line Connection
2.5.1. PBX Connection
Connect EasyGate to a free CO line of your PBX. Configure your PBX in such a
manner that GSM outgoing calls are routed to EasyGate.
EasyGate is equipped with the FSK-based CLIP function. If your PBX is able to
process the caller’s ID, you are advised to enable this function.
2.5.2. Telephone Set (Answering Machine, Coin Telephone Station) Connection
You can connect a standard telephone, answering machine or any other FXO-interface
terminal to EasyGate.
EasyGate is equipped wit the FSK-based CLIP and so it is advantageous to connect a
terminal that is able to display the CLI.
2.6. Power Supply Connection
EasyGate is fed with 10-16V DC. Where a source other than the included power supply
adapter is used, the voltage range and polarity shown on the EasyGate power supply
connector have to be maintained.
Do not activate the power supply until the antenna is connected to EasyGate to avoid
the GSM module damage.
2.7. SMS Sending Input Connection
You have got a special connector for easy connection to EasyGate. The connector is
equipped with screwing clamps to connect wires leading to a switching contact (device
to be monitored). The other connector end can be connected to the respective
EasyGate panel connector.
The input is designed for the switching contact connected between the input pins.
The input is activated by contact closing (pin interconnection).
A transistor switch or logic signal can be used too. In that case, respect the loop
current polarity. The input is over-voltage protected (up to 12V DC).
1 2 3 4
1
2
3
4
