Installation manual 2N® IP Force
LAN Connection
2N
®
IP Forceis connected to the LAN via a RJ-45 terminated (connector X11)
UTP/STP cable (of category Cat 5e or higher). The system is equipped with
the Auto-MDIX function and so both the straight and crossed cable versions
can be used.

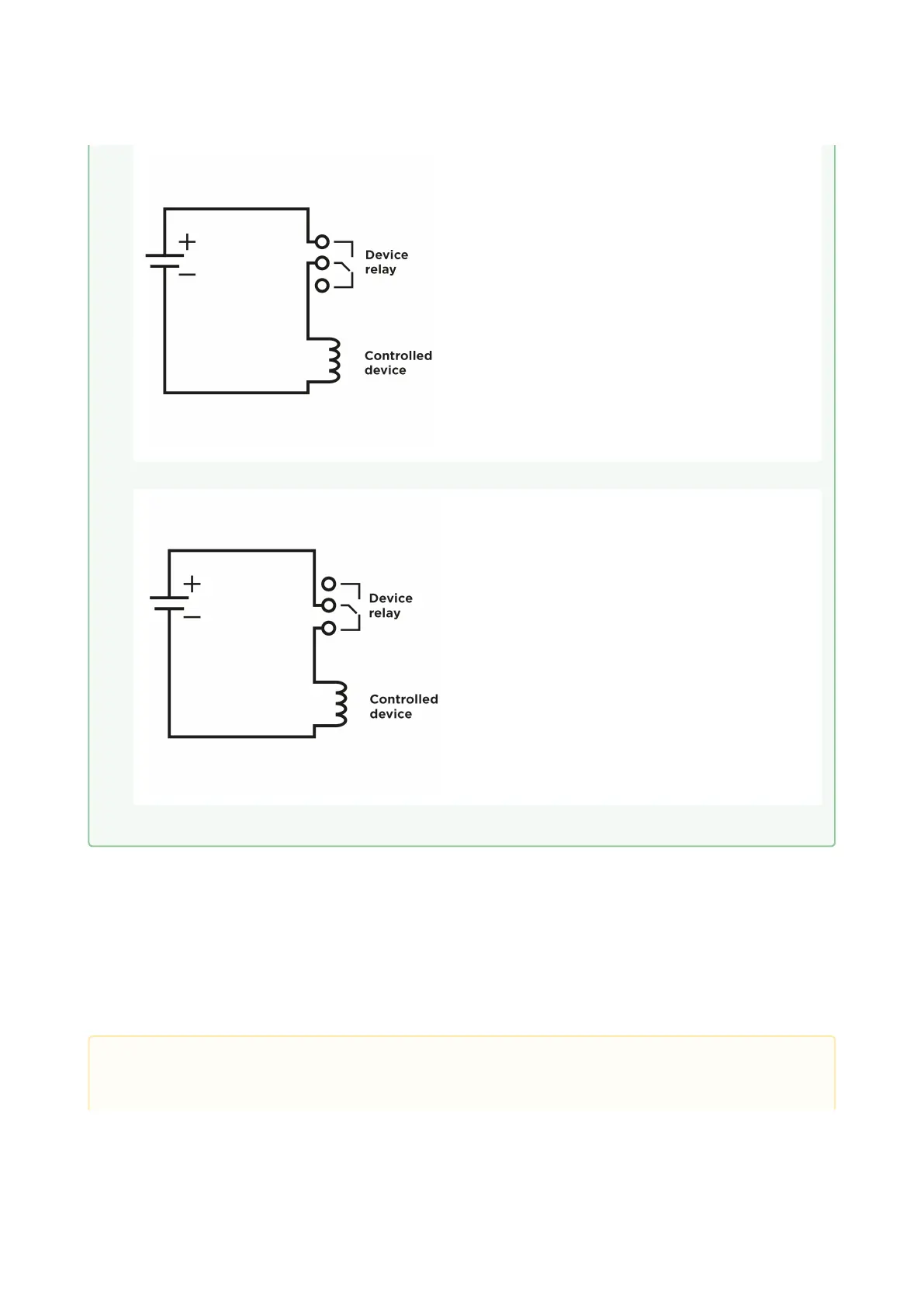

Wiring diagram for the controlled device’s electric circuit closing
Wiring diagram for the controlled device’s electric circuit opening
•
Caution
We recommend the use of a LAN surge protection.
