2.3 Electric Installation
This subsection describes how to connect2N
®
IP Forceinto your Local Area
Network (LAN) and how to connect supply voltage and the electric lock.
PCB Connectors
LAN Connection
External Power Supply Connection
Electric Lock Connection
Factory Default Resetting (PCB version 555v5)
Factory Default Resetting (PCB version 555v3 and higher)
Factory Default Resetting (PCB version 555v2)
Grounding

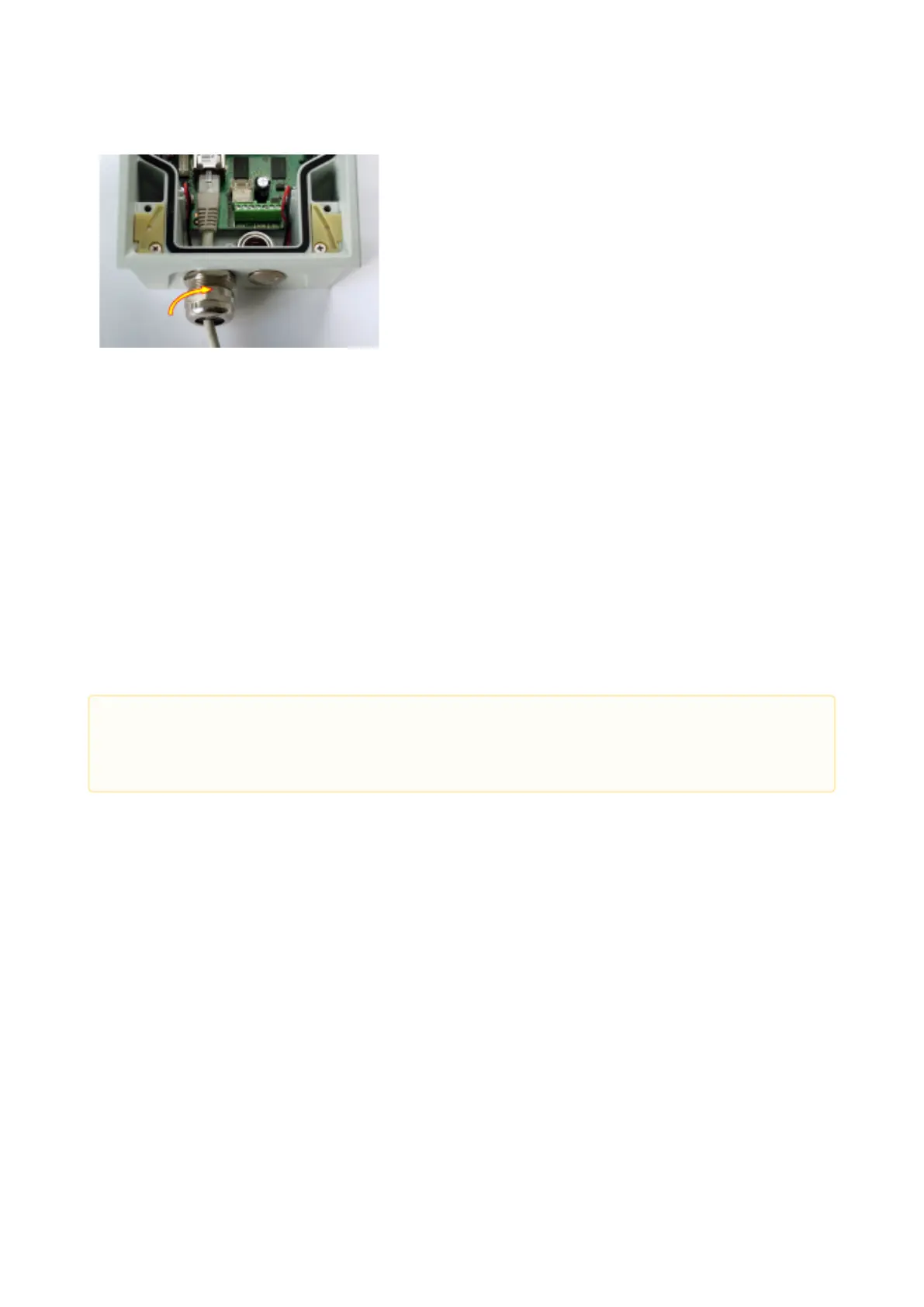

Mounting Completion
Available Switches
PCB Connectors
Picture shows the lay-out of connectors on the2N
®
IP Forceprinted circuit
board (PCB). Cables, accessories and other system components are
connected to connectors X1 through X22.
Connectors description:
X1–Loudspeaker
X2– Button 2
X3– Button 3
X4–Camera module
X5–Button 1
SW1–Reset button (version 555v3 and higher)
X6–Configuration jumpers
X7– Induction loop output.Connector type JST SHR-02V-S.
•
Caution
The device must be part of the electrical system of the building.

