Installation manual 2N® IP Force

68 / 118
Version 5


Version 4 and lower

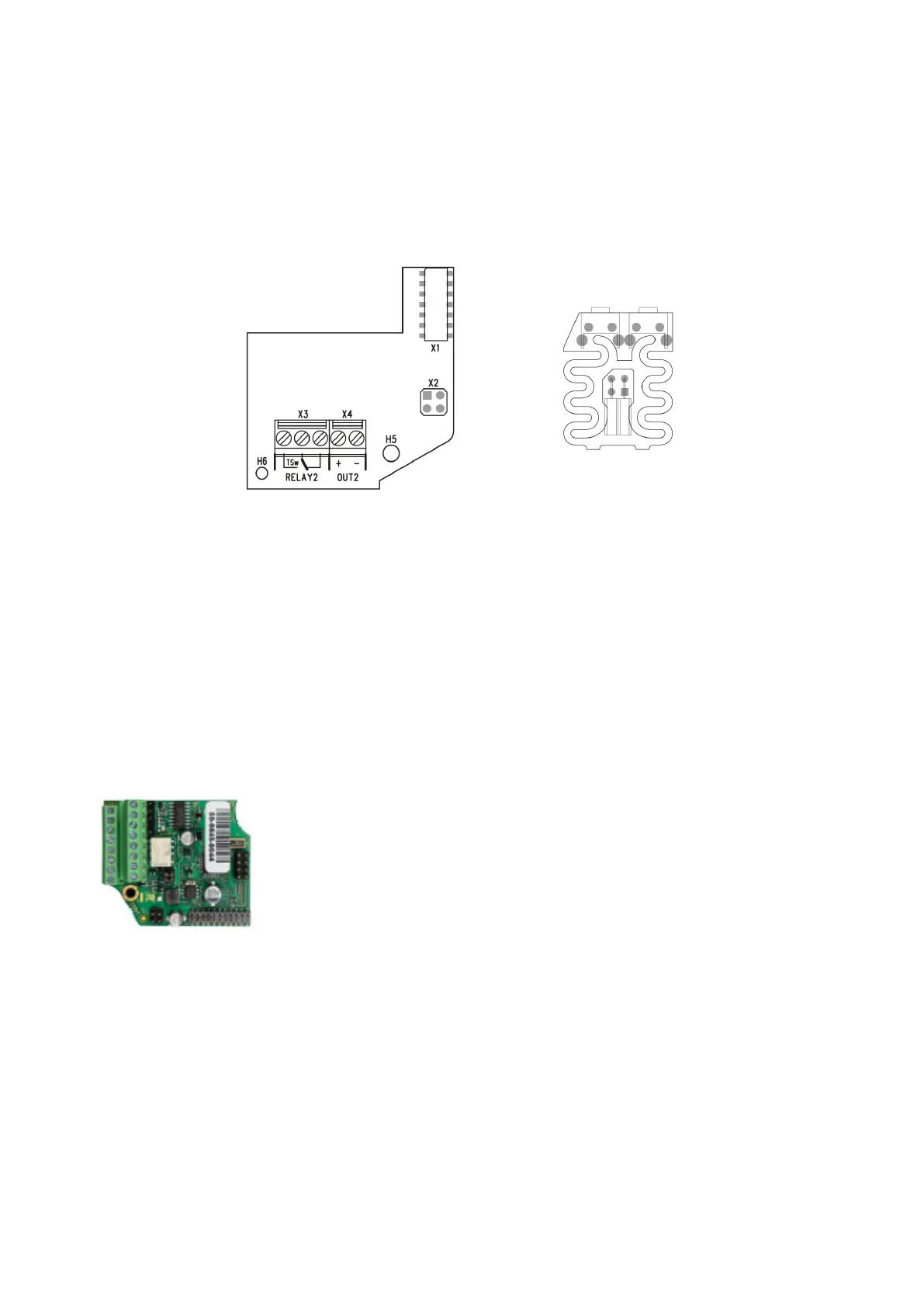

Internal RFID Card Reader125 kHz
TheInternal RFID Card Reader 125 kHz(Part No.9151011)is used for
reading RFID card Ids in the 125 kHz band.This module is intended for
mounting into the2N
®
IP Forcemodel9151102CR,9151102R,9151101CRP
and9151101RP. These models have an window, which is necessary for
antenna operation.If theInternal RFID Card Readeris installed, it is not
possible to install theAdditional Switch.

Function:
The2N
®
IP ForceInternal RFID Card Reader adds two logical inputs, two
additional switches and a tamperswitch to the2N
®
IP Forcebasic unit.
