Installation manual 2N® IP Force

96 / 118
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

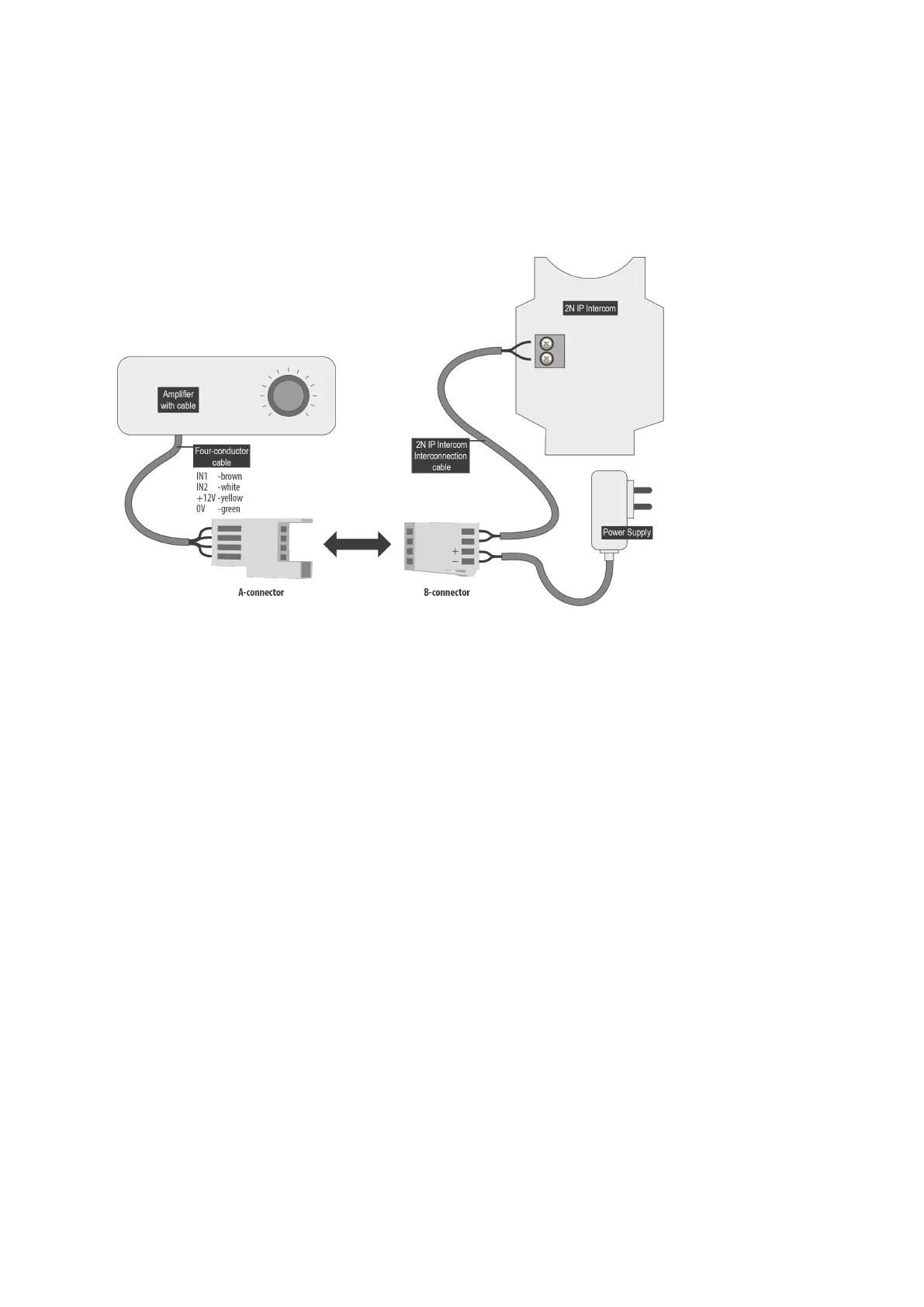

Finally, test the amplifier function using a suitable receiver for hearing
impaired persons or magnetic field communication tester. No other settings
are required.
Specifications:
Supply voltage:8 18 V DC
Supply current at 12 V supply:
standby; up to 10 mA
no signal; 100 mA
8 Ω load, half power output; 550 mA, sine wave signal;400 mA, pink noise signal
1 Ω load, full power output; 1.4 A, sine wave signal;1 A, pink noise signal
Transition to standby w/o signal: 10 s
Input level - basic:100 mV – 6 V
rms
Input level - increased:1 V – 35 V
rms
Input impedance:2 kΩ parallel with 0.3 H
Output current, 1 Ω load:2.2 A
rms
(sine wave)
Full power output:1.6 A
rms
(pink noise)
Output current, 8 Ω load:730 mA
rms
sine wave signal
Half power output:520 mA
rms
pink noise signal
Output short-circuit resistance:unlimited time
Frequency characteristics:100 Hz – 5 KHz ±3 dB
Temperature range:−20– +50 °C
Covering:IP65 (with round cable of 5–10 mm diameter)
Dimensions:144 x 100 x 31 mm
Weight: 0.3 kg
