Access the Management and Diagnostic Console
63

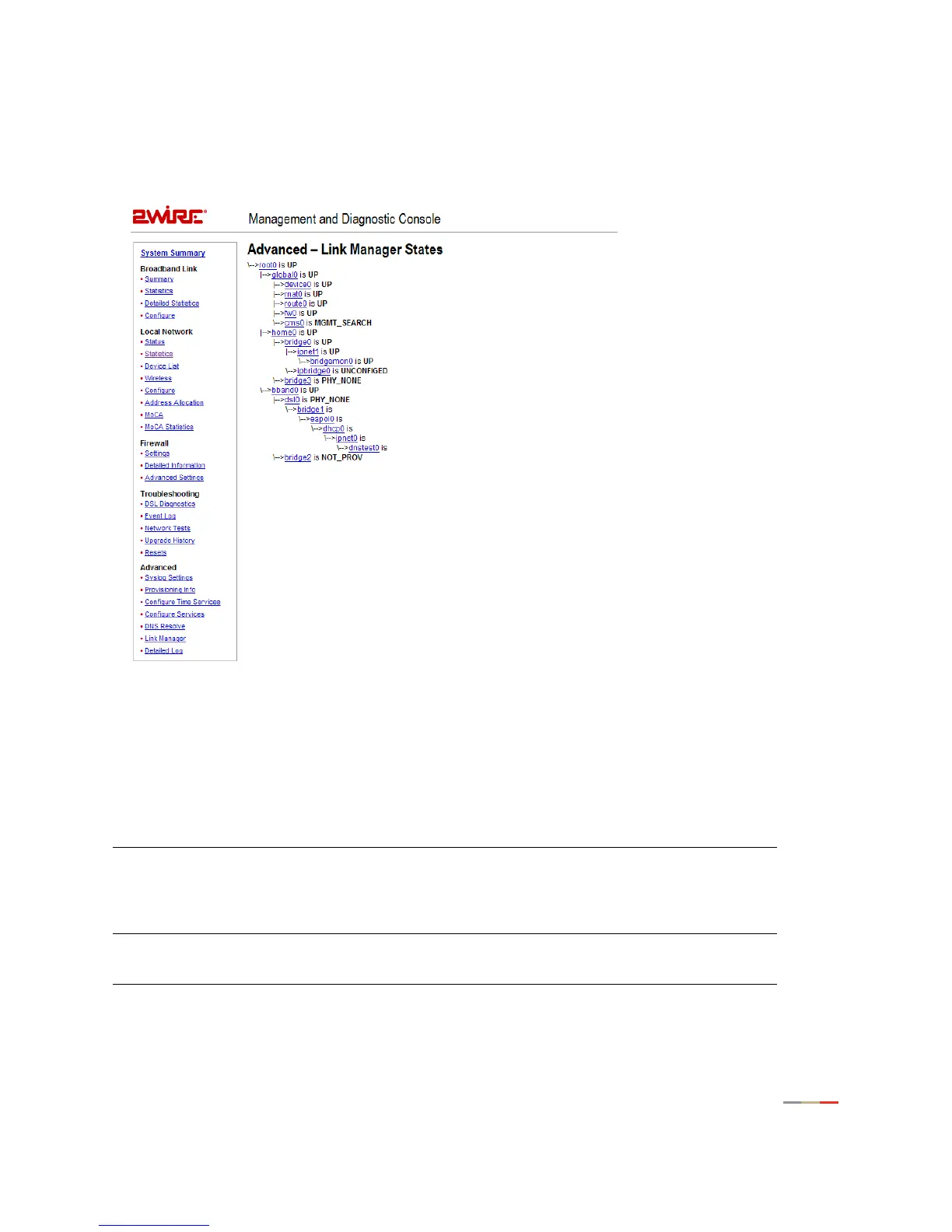

Advanced - Link Manager States Page
The Advanced – Link Manager States page is a tree representation of the 2Wire gateway interface stack,
and shows the internal state of the 2Wire gateway.
The Link Manager States page is used to gather dynamic information on internal networking modules, and
is based on the runtime configuration of the 2Wire gateway. The information cannot be used to configure
the 2Wire gateway.
To view information about each node, click the node link. Information displays below the Link Manager
States tree, and includes the following:
Node information Description
Link status Up. The link is functioning properly.
Climbing. The link is attempting to establish a connection.
Down. The link is not yet configured.
Error. An error has occurred.
State changes The number of times the state of the link has changed (since
last reboot).
