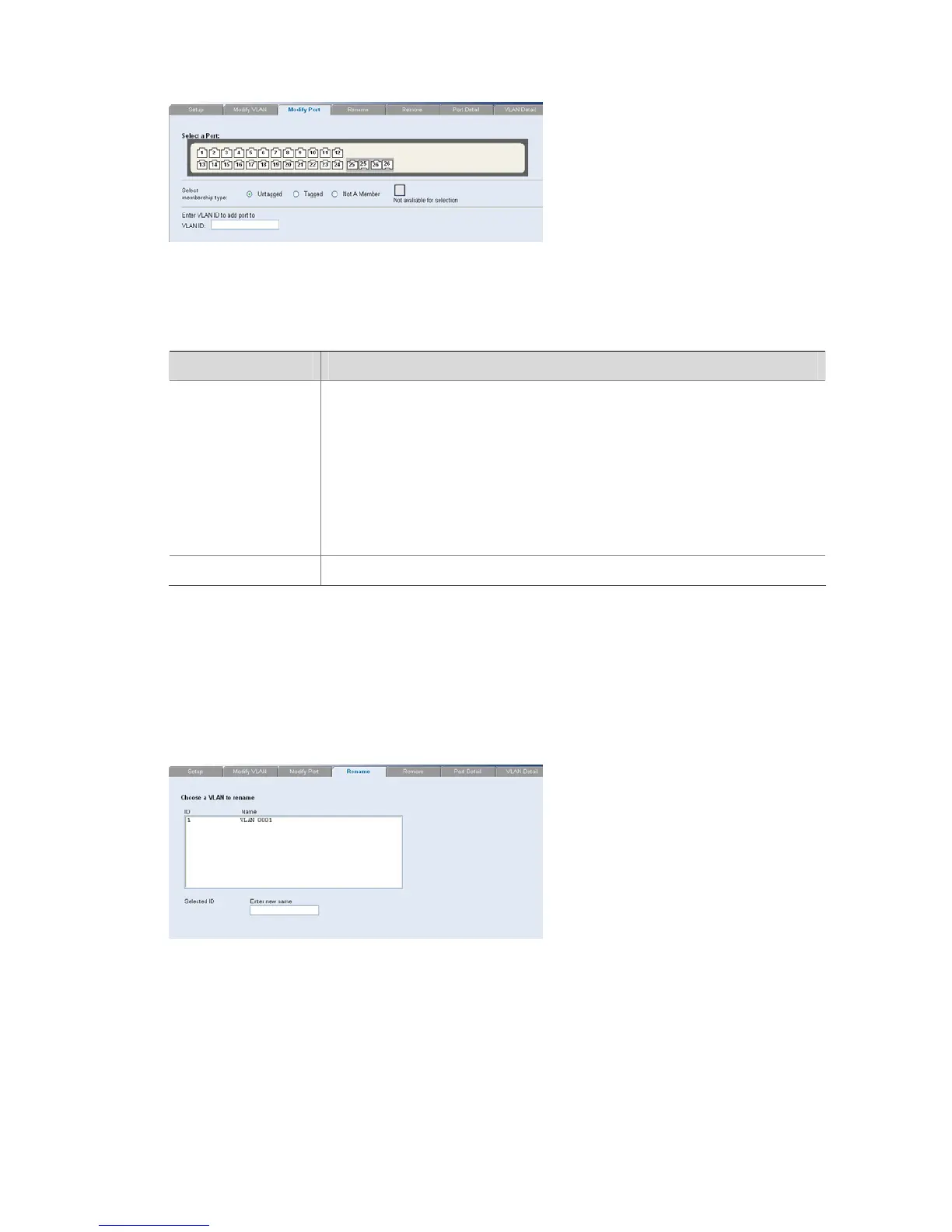

Figure 3-23 Modify Port VLAN Page
The Modify Port VLAN Page contains the following fields:
Table 3-18 Modify Port VLAN Page item description
Item Description
Select membership
type
Selects the membership type for each port on the VLAN. The possible field
values are:
z Untagged: Indicates the interface is an untagged member of the VLAN.
z Tagged: Indicates the interface is a tagged member of a VLAN. VLAN
tagged frames are forwarded by the interface. The frames contain VLAN
information.
z Not A Member: Indicates the interface is not a member of the VLAN.
z Not available for selection: Indicates the interface is not available for
selection.
VLAN ID Defines the VLAN ID to which the port is to be assigned.
Renaming VLANs
The VLAN Rename Page allows the network manager to select a VLAN from the list to be renamed.
Click Device > VLAN > Rename. The VLAN Rename Page opens.
Figure 3-24 VLAN Rename Page
Removing VLANs
The VLAN Remove Page allows the network administrator to remove VLANs.
Click Device > VLAN > Remove. The VLAN Remove Page opens.
