Viewing Automatically Configured IP Information 37
Documentation supplied with the terminal emulation software.
A suitable cable:
A standard null modem cable — if you are connecting directly to
the console port, or
You can find pin-out diagrams for the cable in Appendix B on page 59.
A Category 5 twisted pair Ethernet cable with RJ-45 connectors to
connect your Switch to the network.
Connecting the Workstation to the Switch
1 Connect the workstation to the console port using a standard null
modem cable as shown in Figure 10.

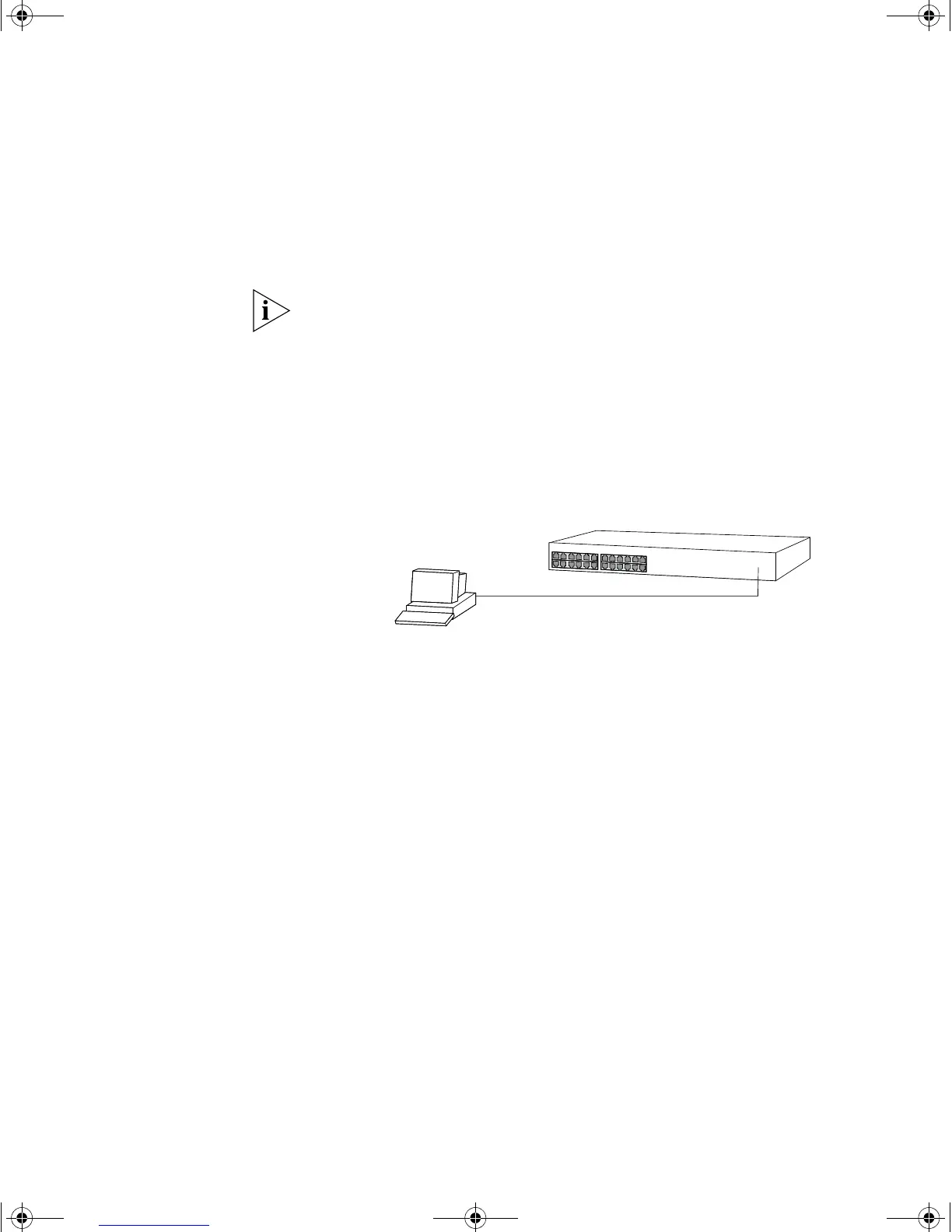

Figure 10 Connecting a workstation to the Switch via the console port
To connect the cable:
a Attach the female connector on the cable to the male connector on
the console port of the Switch.
b Tighten the retaining screws on the cable to prevent it from being
loosened.
c Connect the other end of the cable to one of the serial ports (also
known as a COM port) on your workstation.
2 Open your terminal emulation software and configure the COM port
settings to which you have connected the cable. The settings should be
set to match the default settings for the Switch, which are:
19,200 baud
8 data bits
no parity
1 stop bit
no hardware flow control
Refer to the documentation that accompanies the terminal emulation
software for more information.
Console Port
Connection
Standard Null Modem Cable
Workstation
(with terminal emulation
software installed)
Switch
DUA1750-0AAA01.book Page 37 Friday, December 5, 2003 10:24 AM
