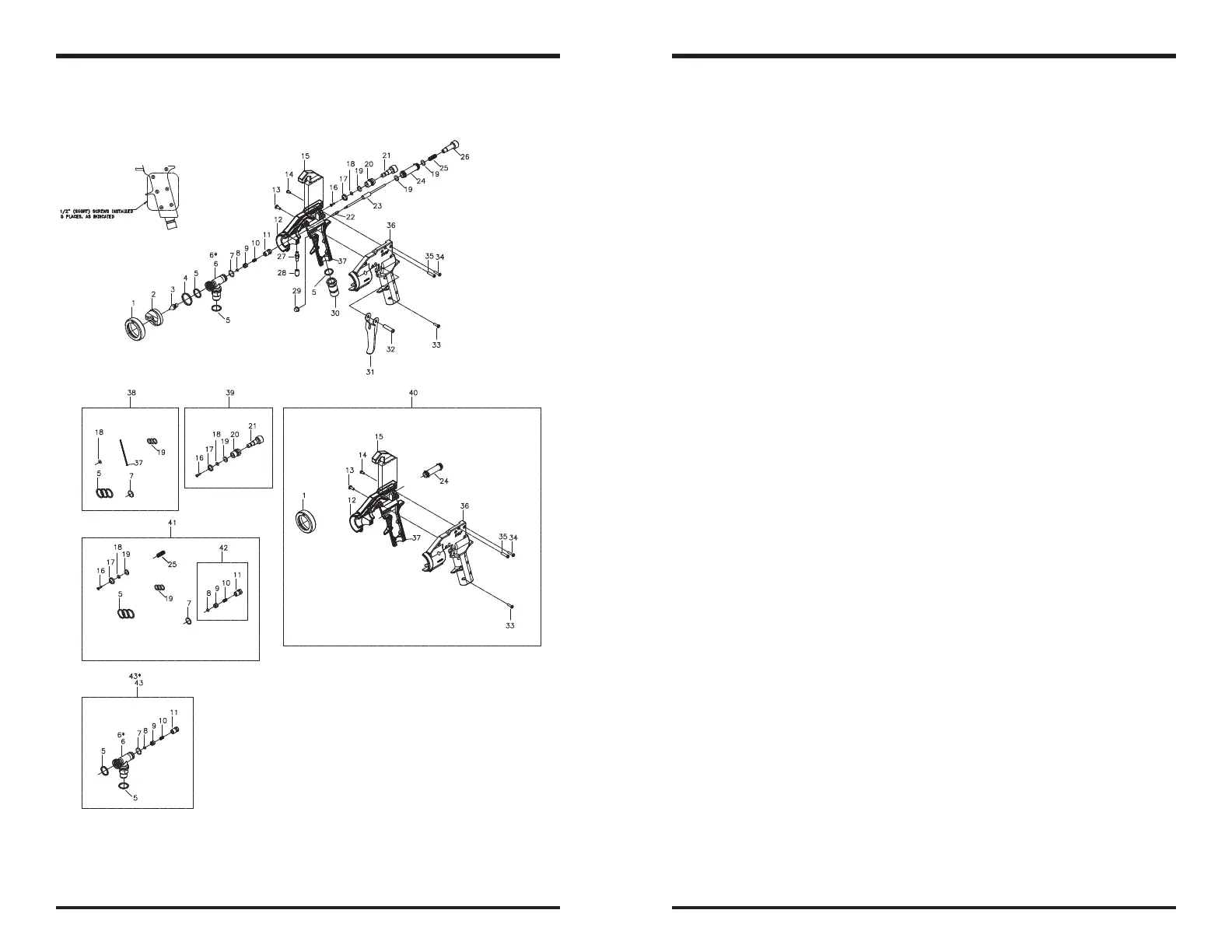

3M™ Series 11 & 15 Spray Gun Parts Identifi cation
Item Description Replacement PN
1 Retaining Ring 91-043
2 Air Cap (Composite) 91-009-XXX
2* Air Cap (Aluminum) 91-071-XXX
3 Fluid Nozzle 91-143-XXDT**
4 Closure Ring
5 O-Ring
6 Fluid Passage (Series 11) 91-064
6* Fluid Passage (Series 15) 91-203
7 O-Ring
8 O-Ring UH-1405/10 (Pack of 10)
9 Needle Guide 91-202/2 (Pack of 2)
10 Compression Spring 91-199/3 (Pack of 3)
11 Packing Nut 91-201
12 Right-Half Spray Gun Handle
13 3/8” Screw
14 1/4” Screw
15 Spray Gun Hook
16 3/8” Screw
17 Valve Seal
18 O-Ring
19 O-ring
20 Threaded Insert
21 Valve Stem
22 Delrin® Needle Tip 91-107-XXX
23 Stainless Steel Needle Shaft 91-078
24 Threaded Sleeve 91-041
25 Spring LG-27/5
26 Needle Adjustment Screw 91-068
27 Pressure Relief Stem LFG-465
28 Pressure Relief Stem Cap 91-109/10 (Pack of 10)
29 Plug 91-027
30 Quick Disconnect-Air Inlet 91-020
31 Trigger HP-405
32 Trigger Pivot Post 91-014
33 3/8” Screw
34 1/2" (Short) Screw
35 5/8” (Long) Screw
36 Left-Half Spray Gun Handle
37 Viton Seal 2” UH-753/2
38 O-Ring Replacement Kit 91-049
39 Fan Adjustment Assembly 91-072
40 Gun Body Replacement 91-152-A
41 Spray Gun Maintenance Kit 91-029
42 Self-Adjusting Packing Kit 91-200
43 Fluid Passage Assembly (11 Series) 91-064
43* Fluid Passage Assembly (15 Series) 91-203
* Denotes differences in Air Cap or Fluid Passage
** This part is ordered as part of a set with item # 22
