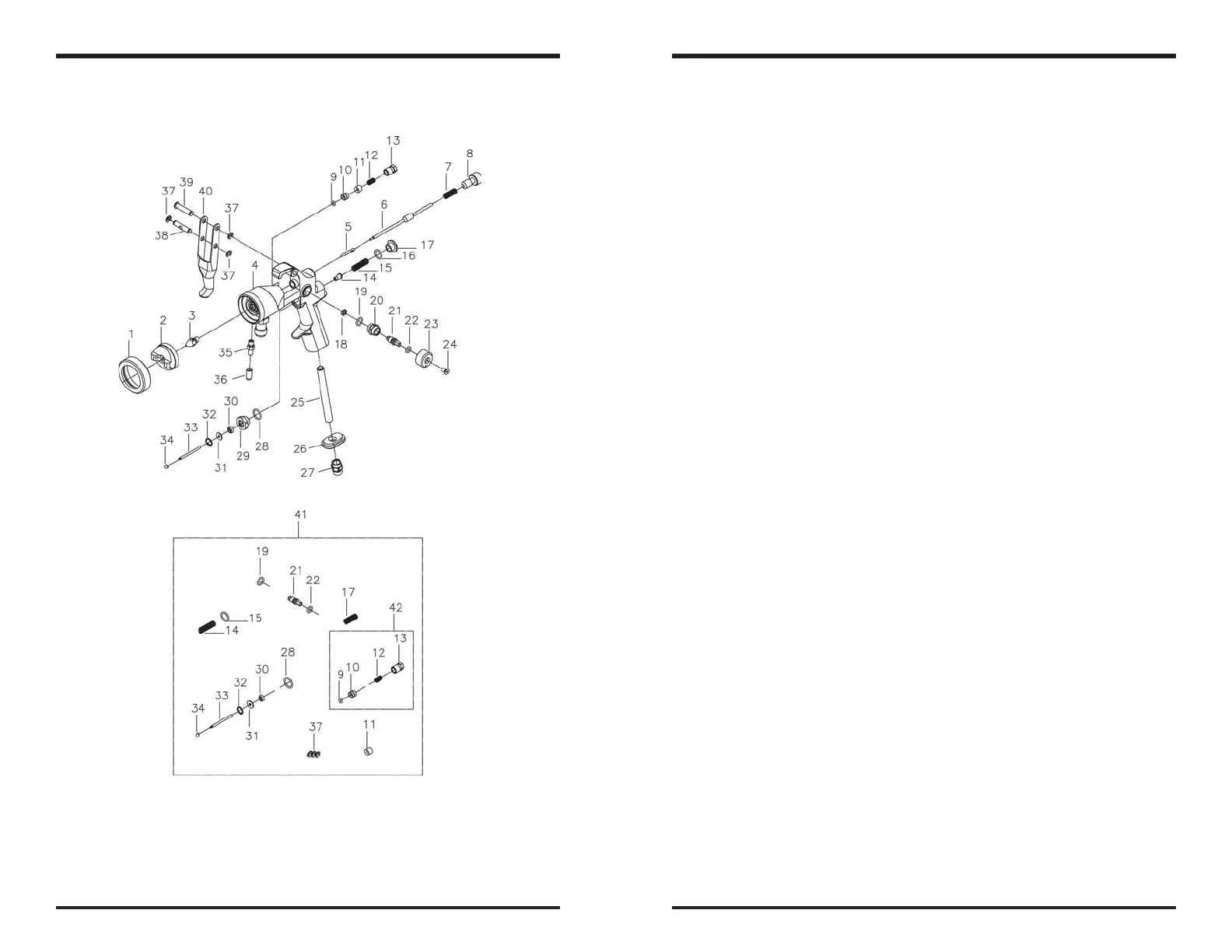

3M™ Series 19C Spray Gun Parts Identifi cation
Item Description Replacement PN
Retaining Ring 91-043 1
Air Cap (Aluminum) 98-020-XXX2
Fluid Nozzle 97-079-XXX* 3
Spray Gun Handle 4
Delrin® Needle Tip 97-019-XXX/4 5
Stainless Steel Needle Shaft 98-0096
Spring LG-27/57
Needle Adjustment Screw 97-0238
O-Ring UH-1405/10 (Pack of 10)9
Needle Guide 91-202/2 (Pack of 2)10
Packing Nut Spacer 11
Compression Spring 91-199/3 (Pack of 3) 12
Packing Nut 91-20113
Valve Seat14
Valve Spring15
O-Ring16
Valve Cap 97-034 17
E-Clip 18
O-Ring 19
Fan Air Fitting 97-04320
Fan Valve Stem 97-04121
O-Ring 22
Fan Air Adjustment Knob 97-04023
Screw24
Air Inlet Tube25
Handle Cap26
Air Inlet Fitting27
O-Ring28
Seal Housing 97-02929
Lip Seal30
Spacer31
Retaining Ring32
Valve Stem33
Valve Stem Cap34
Pressure Relief Stem LFG-46535
Pressure Relief Stem Cap 91-109/10 (Pack of 10)36
E-Clip37
Trigger Pin 97-03738
Trigger Pivot Pin 97-03839
Trigger 97-03640
Spray Gun Maintenance Kit 98-049 41
Self Adjusting Packing Kit 91-20042
