3M 101 Series User Manual

-6-

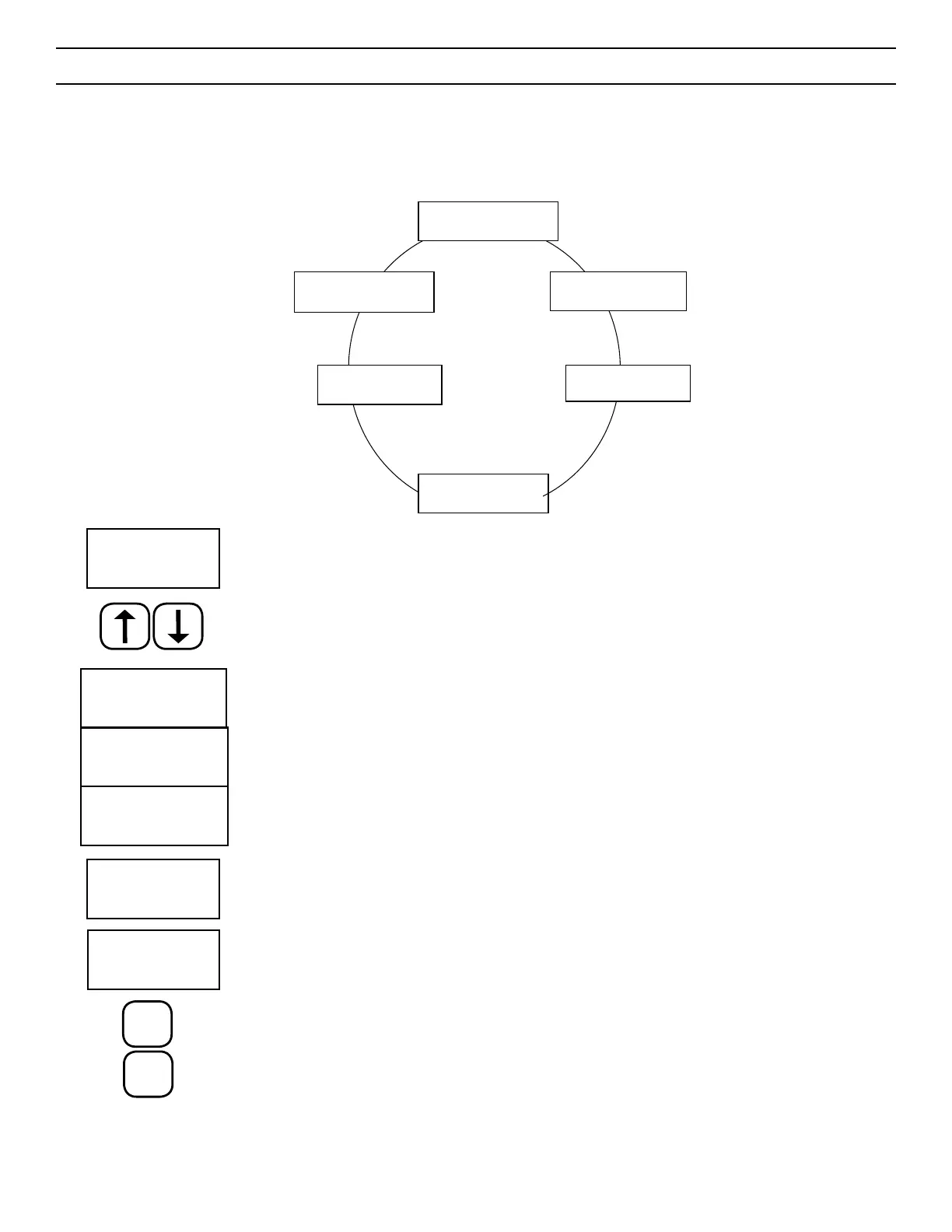

5. Diagrams of Menu Functions
5.1 The Main Functions Menu
This menu group consist of six main upper level functions that includes all functions needed to program a filter test, execute a filter test, program
various parameters and management of test results.
Screen prompts:
This function allows the user to select and review stored test protocols.
Use “Up Arrow” and “Down Arrow” keys to move between menu functions and to advance to next step or
return to the previous step.
This function allows the Operator to Recall Test Results, and view them on the LED screen.
This function allows the Operator to print test results.
This function allows the Operator to create up to 19 individual test programs, entering test parameters that
define each filter tests. This function can be switched off through the device configuration
This function allows the Operator to change between summer and winter time. Press start, then “*“ to
change between winter and summer options. (To change the time of day, use the SERVICE menu function.)
With the SERVICE function, the Operator can access the service functions menu. These service functions are
not necessary for everyday use of the 101-Series Integrity Test device.
Press the “START” key to select a specific function, proceed to the next step or answer “YES” to a question.
By pressing the “STOP” key, the function can be stopped, the test can be aborted or the Operator can select
another main function.
> ↓↑ > ↓↑
> ↓↑
TEST RESULTS ?
TEST RESULTS ?
TEST RESULTS ?
> ↓↑ PROCEED > ↓↑
PROCEED > ↓ ↑
TEST FILTER ?
SERVICE ?
PROCEED
SET CLOCK ?
PROCEED
TEST PROGRAMS ?
PROCEED
PRINT DATA ?
PROCEED
TEST FILTER
PROCEED >
TEST RESULTS?
PROCEED >
PRINT DATA?
PROCEED >
TEST PROGRAM?
PROCEED >
SET CLOCK?
PROCEED >
SERVICE?
PROCEED >
START
STOP
