3M 2000 - Section 10 FOCUS MECHANISM ASSEMBLY SPARE PART KIT

3MtOverhead Projector 2000
Illustrated Parts Breakdown
12
E 3M IPC 2000
Section 10

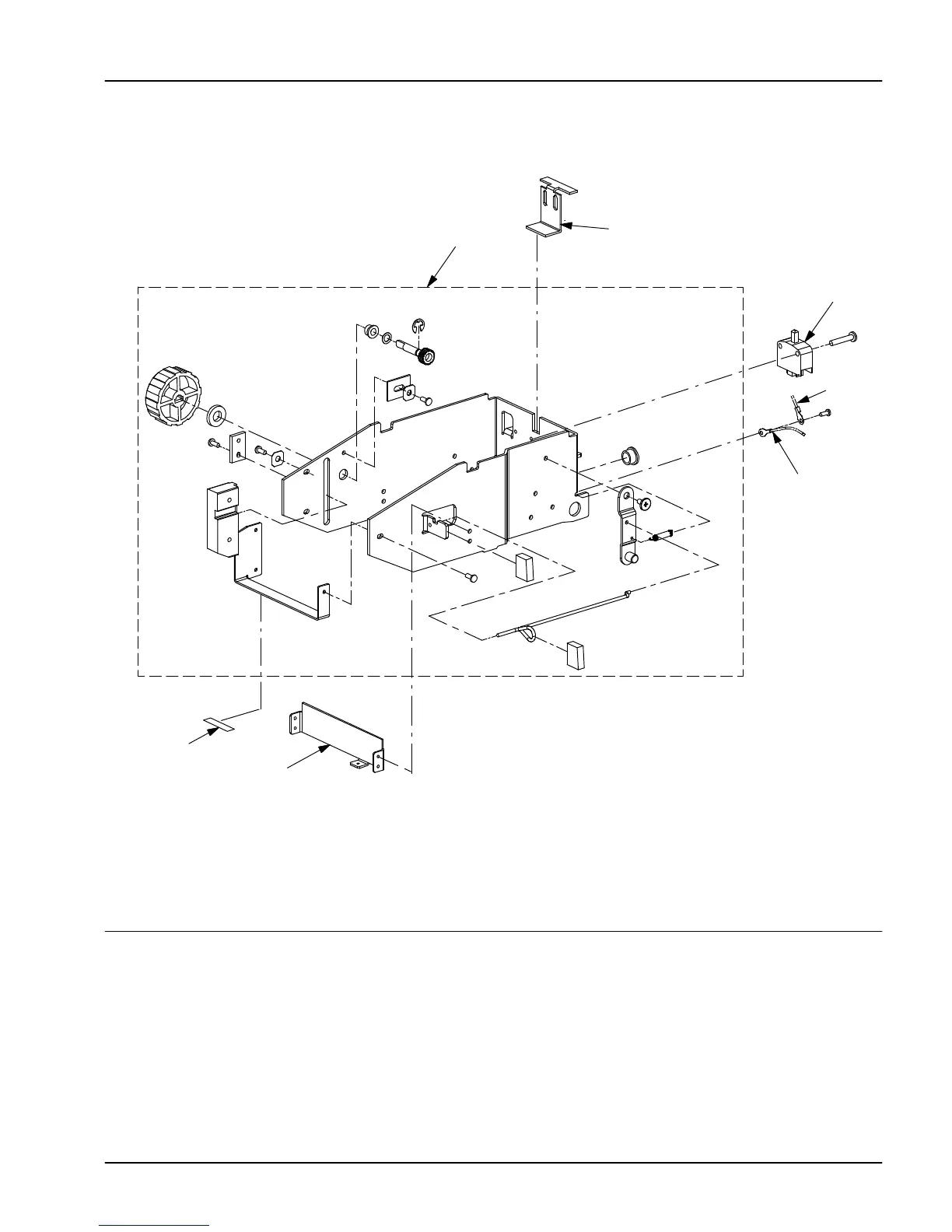

FOCUS MECHANISM ASSEMBLY SPARE PART KIT
1
2
3
NOTE: Screws, Nuts, Bolts, Clips, and etc. are contained in Hardware Kit 78-8062-1150-0.
4
GND Wire
5
6
Section 10
FOCUS MECHANISM ASSEMBLY SPARE PART KIT
Item No. Part Number Description Qty
1 78-8057-4035-0 FOCUS MECHANISM ASSEMBLY Spare Part Kit 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 78-8057-4111-9 ACTUATOR, Interlock Switch (AHA, AHAT, AHNT, AHNV, AHR,. . . . . . . . . . . .
AHSC, AHST, AHSV, AHUT, AHUU, AHUV, AHZT) 1. . . . . . . . . . . . . . . . . . . . . . . .
3 78-8057-4102-8 SWITCH, Interlock (AHA, AHAT, AHNT, AHNV, AHR, AHSC,. . . . . . . . . . . .
AHST, AHSV, AHUT, AHUU, AHUV, AHZT) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 78-8065-8232-2 WIRE, Ground 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 78-8057-4094-7 BRACKET, Tie (Lampholder) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 JV-0890-0185-1 LABEL, Caution, Japan, Head 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
