3M 2000 - Section 11 POST and PIVOT ASSEMBLY- -DOMESTIC SPARE PART KIT

3MtOverhead Projector 2000
Illustrated Parts Breakdown
13
E 3M IPC 2000
Section 11

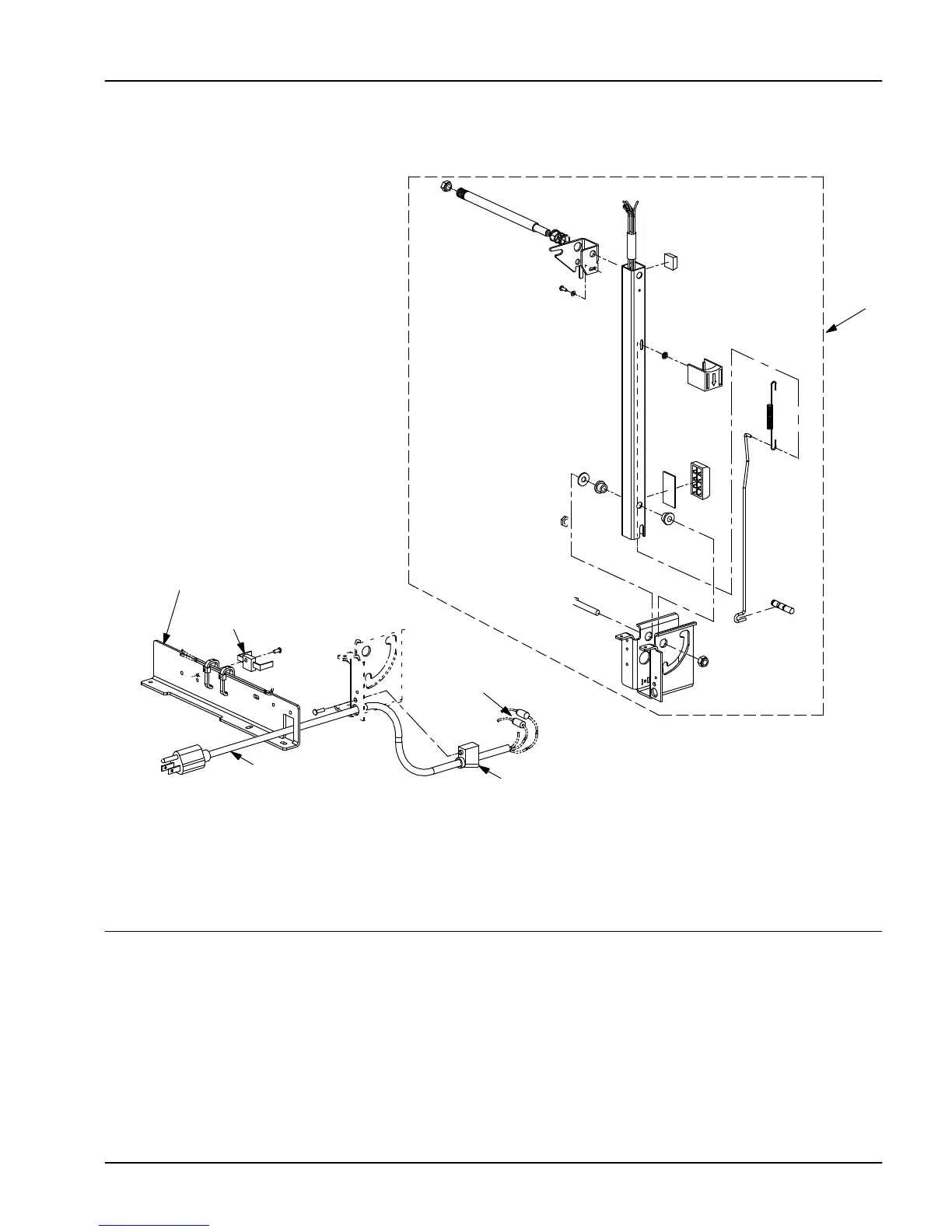

POST AND PIVOT ASSEMBLY--DOMESTIC SPARE PART KIT
See
Section 15
1
3
4
2
NOTE: Screws, Nuts, Bolts, Clips, and etc. are contained in Hardware Kit 78-8062-1150-0.
5
Section 11
POST AND PIVOT ASSEMBLY--DOMESTIC SPARE PART KIT
Item No. Part Number Description Qty
1 78-8062-1117-9 POST AND PIVOT ASSEMBLY--Domestic Spare Part Kit 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 78-8064-1891-5 DIODE, Surface Mount 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 DY-1160-2020-6 STRAIN RELIEF 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4A 78-8064-1536-6 POWER CORD, United States, 10’ 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4B 78-8062-1378-7 POWER CORD, 3M Logo, 2 Blade With Ground, 10’ 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 78-8062-1367-0 BRACKET, Post Tie 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
