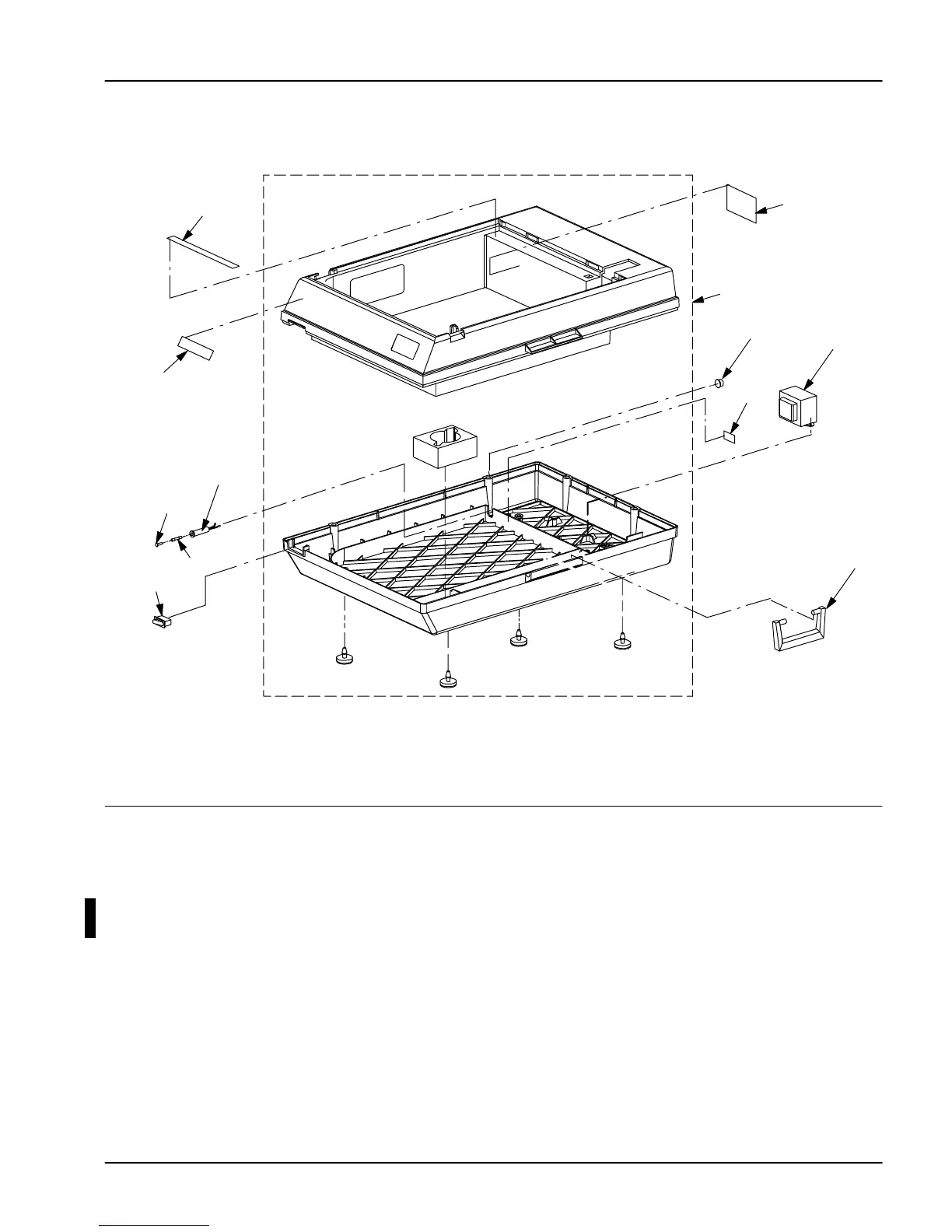

I llus tr a te d Pa r ts B re a kdo w n
4
E 3M IP C 2001
Section 2
BASE AND BASE TOP ASSEMBLY SPARE PART KIT
1
3
4
5
2
7
8
6
NOTE: Screws, Nuts, Bolts, Clips, and etc. are contained in Hardware Kit 78-8062-1150-0.
9, 10
11
12
13
Section 2
BASE AND BASE TOP ASSEMBLY SPARE PART KIT
Item No. Part Number Description Qty
1 78-8062-1114-6 BASE AND BASE TOP ASSEMBLY Spare Part Kit 1......... ... ..........................
2 26-1002-4730-8 PLUG, Hole, Black 1......... ... .....................................................
3 78-8044-6919-1 TRANSFORMER, Japan (ABJ, ABJT) 1......... ... .....................................
4 26-1005-7653-2 HANDLE, Plastic, Molded 1......... ... ...............................................
5A 78-8057-4158-0 SWITCH, ON/OFF (S/N 860256 and below) 1
........ ... ................................
5B 78-8057-0959-5 SWITCH, ON/OFF (S/N 860257 and above) 1
........ ... ................................
6A 26-1005-9599-5 FUSE, 5 Amp, 5 X 20mm, Slow Acting (All except ABJ and ABJT) 1........ ... .............
6B JJ-9960-0007-8 FUSE, 5 Amp, Japan (ABJ, ABJT) 1........ ... ........................................
7A 26-1001-6189-7 FUSEHOLDER, Panel Mounted (All except ABJ and ABJT) 1........ ... ...................
7B 26-1001-6190-5 FUSEHOLDER, Panel Mounted (ABJ, ABJT) 1........ ... ...............................
8 78-8057-4166-3 FUSEHOLDER ASSEMBLY 1......... ... .............................................
9 78-8062-1362-1 LABEL, M2000T, Japan 1......... ... ................................................
10 78-8062-1361-3 LABEL, M2000S, Japan 1........ ... ................................................
11 78-8057-4186-1 LABEL, General Instructions 1........ ... .............................................
12 JV-0890-0183-6 LABEL, Caution, Japan 1........ ... .................................................
13 78-8057-4184-6 LABEL, Fuse Replacement, 5 Amp 1........ ... .......................................
