3M 33577 - Exploded Parts View; Parts List

7Translation of Original Instructions

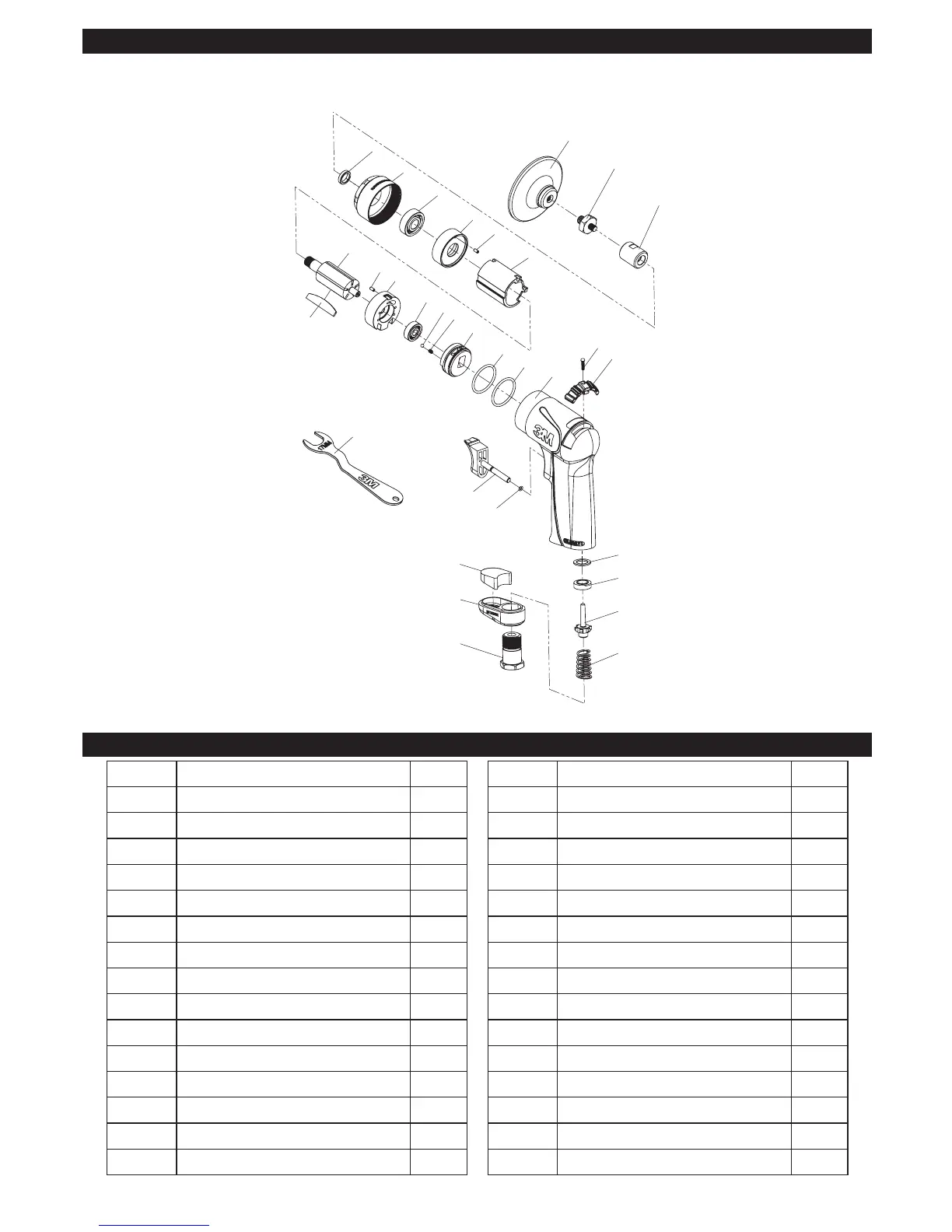

EXPLODED SANDER PARTSVIEW
PN 33577
18,000 RPM 3M™ Pistol Grip Disc Sander
22
21
17
24
20
27
26
25
9-1
9
6
4
3
1
2
7
5
10-1
10
8
11
12
13
16
14
15
19
18
23
17
28
11
PN 33577
18,000 RPM ROLOC PISTOL GRIP SANDER
ITEM DESCRIPTION QTY
1 Inlet Bushing 1
2
1
3 Valve Spring 1
4 Valve 1
5 Valve Seat 1
6 Spacer 1
7 Silencer 1
8 Composite Housing 1
9 Reverse Valve Lever 1
9-1 Screw 1
10 Trigger 1
10-1 O-Ring 1
11 O-Ring 2
12 Valve Body 1
13 Spring 1
14 Detent Ball 1
ITEM DESCRIPTION QTY
15 Ball Bearing 1
16 Rear Plate 1
17 Spring Pin 2
18 Rotor 1
19 Rotor Blade 5
20 Cylinder 1
21 Front Plate 1
22 Ball Bearing 1
23 Front Housing 1
24 Anvil Bushing 1
25 Spindle Joint 1
26 Spindle 1
27
2 in Roloc™ Disc Pad Hard 1
3 in Roloc™ Disc Pad Hard 1
28 Wrench (17 mm) 2
PARTSLIST
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
1 Inlet Bushing 1 14 Detent Ball 1
2 Deflector 1 15 Ball Bearing 1
3 Valve Spring 1 16 Rear Plate 1
4 Valve 1 17 Spring Pin 2
5 Valve Seat 1 18 Rotor 1
6 Spacer 1 19 Rotor Blade 5
7 Silencer 1 20 Cylinder 1
8 Composite Housing 1 21 Front Plate 1
9 Reverse Valve Lever 1 22 Ball Bearing 1
9-1 Screw 1 23 Front Housing 1
10 Trigger 1 24 Anvil Bushing 1
10-1 O-Ring 1 25 Spindle Joint 1
11 O-Ring 2 26 Spindle 1
12 Valve Body 1 27 Backup Pad 2
13 Spring 1 28 Wrench (17 mm) 2
