NA - ENG
April 2017
3M-Matic
™
Accuglide 3 - 2 Inch Taping Head
Page 11
Figure 3-4 Tape Loading/Threading
Figure 3-5 Tape Loading/Threading
Operation (continued)

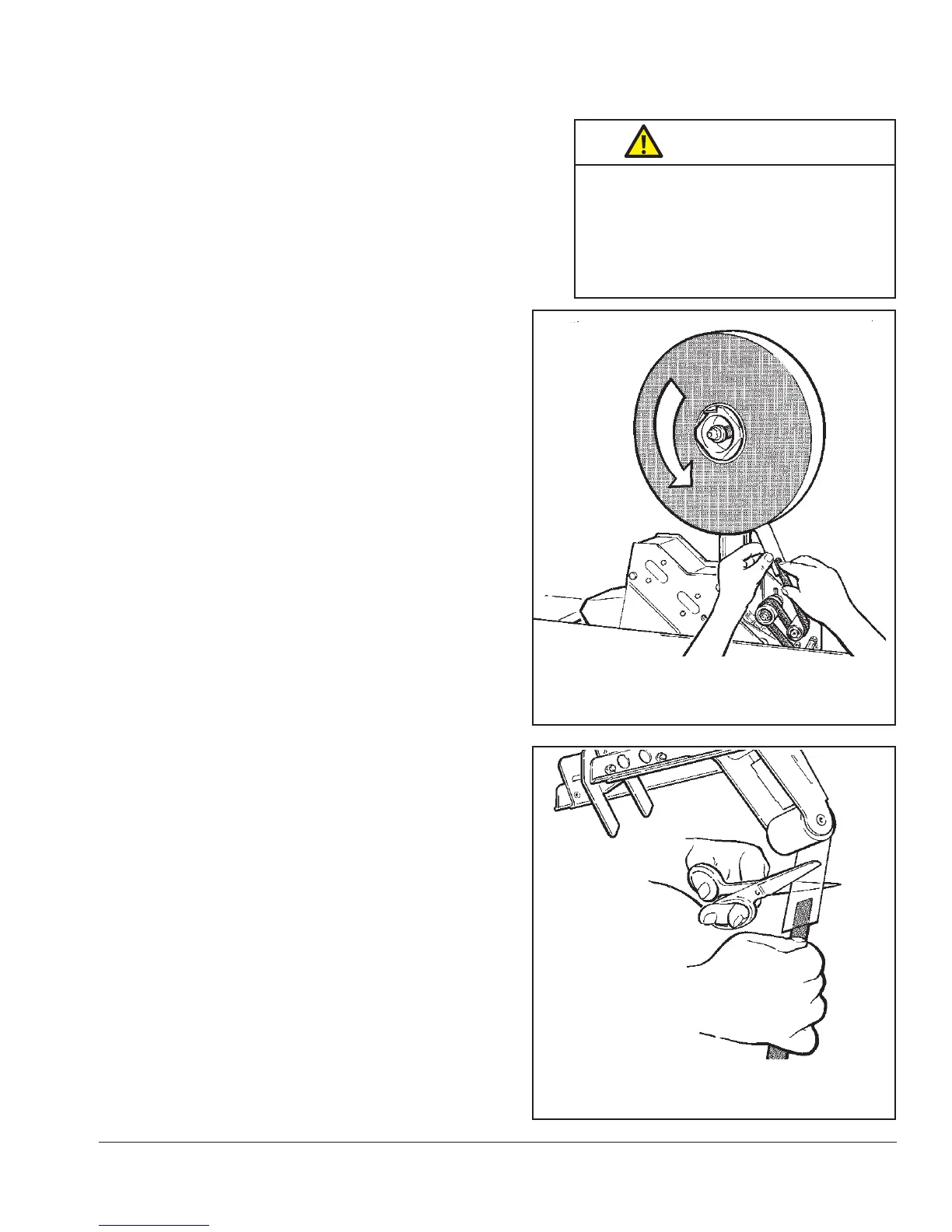

Figure 3-4
Place tape roll on tape drum to
dispense tape with adhesive side
forward. Seat tape roll fully against
back ange of drum. Adhere tape
lead end to threading needle as
shown.
Manually turn tape roll to create
slack tape while pulling threading
needle through tape applying
mechanism until needle is through
and tape is in alignment with
applying roller.
Excess tape can be cut with a
scissors at applying roller.
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cuto blades under orange blade
guards. The blades are extremely sharp.
WARNING
