NA - ENG
April 2017
3M-Matic
™
Accuglide 3 - 2 Inch Taping Head
Page 16

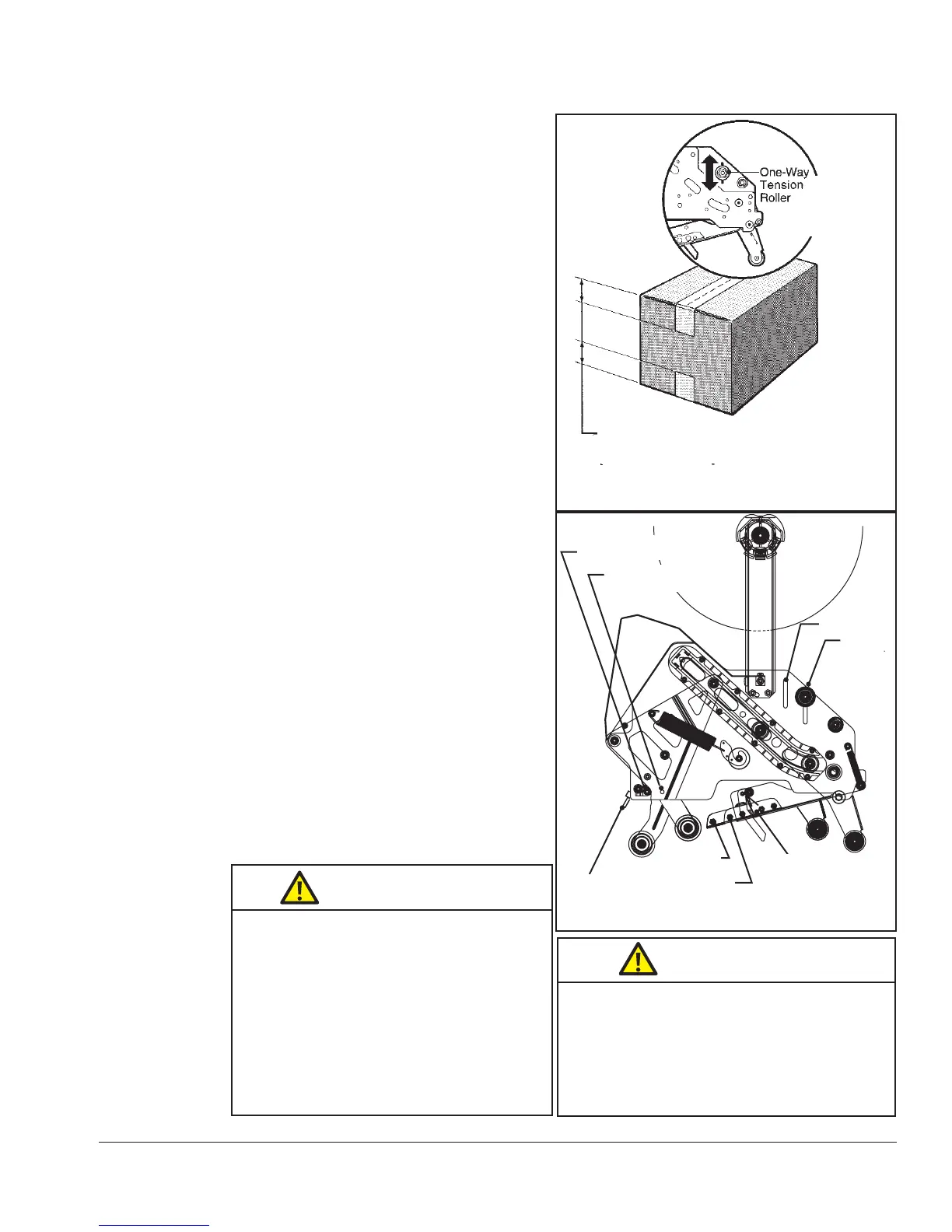

Figure 5-6 Leading Tape Leg Length
One-Way
Tension
Roller
Tape Leg 50 or 70mm ± 6mm
[2 or 2-3/4in. ± 1/4in.
Slot C-C
Position B-B
Brush
Slot C
Position B
Figure 5-7 Changing Tape Leg Length
Position A-A
Position A
Adjustments (continued)
Tape Leg Length
Leading Tape Leg Length Adjustment –
Figure 5-6
The one-way tension roller position is
adjustable to control the leading tape
leg length.
Moving this roller farther away from
the box top or bottom surface will
decrease the leading leg length.
Moving it closer to the box top or
bottom surface will increase the
leading leg length.
Changing Tape Leg Length from 70 to
50mm
[2 3/4-2 Inches] – Figure 5-7
Note – When changing tape leg length,
both upper and lower heads must be
adjusted to apply same leg lengths.
1. Remove and retain two hex head
screws and remove the brush from
normal position “A” on side frame.
2. Remount and secure brush in posi-
tion “A-A” on side frame forward of
normal location with original fasteners.
3. Remove cut-o bracket extensions
from position “B”.
4. Remount cut-o bracket extensions
in forward position “B-B”.
5. Remove/retain one-way tension roller
assembly from slot “C” in frame.
6. Remount tension roller assembly
near top of slot “C-C” in frame using
original fasteners.
7. Adjust tension roller according to
“Leading Tape Leg Length Adjustment”
above.
• To reduce the risk associated with
shear, pinch, and entanglement hazards
- Turn air and electrical supplies o
on associated equipment before
performing any adjustments, mainte-
nance, or servicing the taping heads
- Never attempt to work on the taping
head or load tape while the box drive
system is running
WARNING
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from tape
cuto blades under orange blade guards.
The blades are extremely sharp.
WARNING
Cut-O Bracket
Extension
To Next Page
