3M DFS 700

Technical Information DFS 700 / 09.2008 2-4

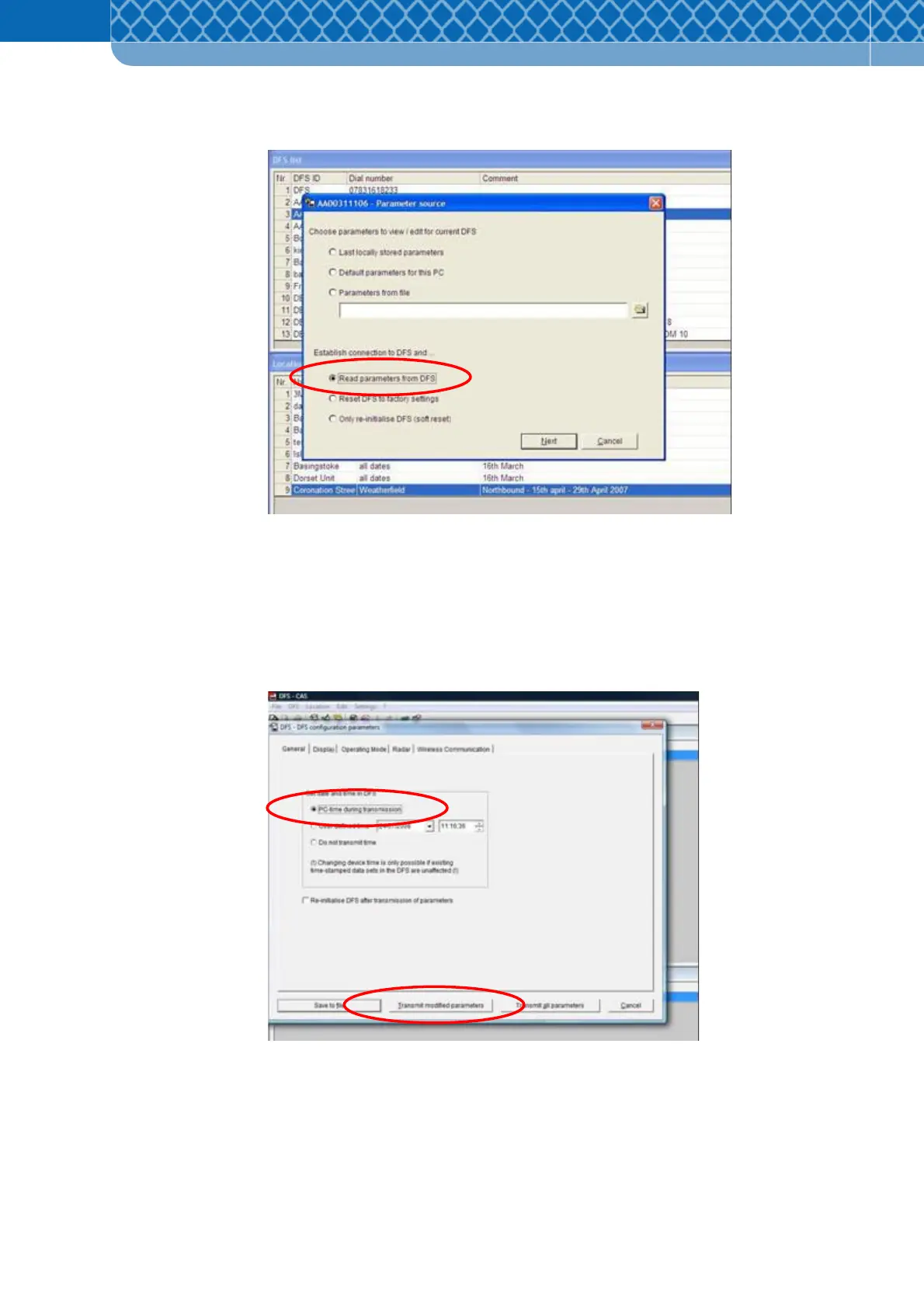

(13) Select read parameters from DFS and click next (Figure 5)
Figure 5
(14) When the parameters box opens, select PC-time during transmission (Figure 6) and then
select transmit modified parameters. This will now synchronise the DFS700 time with
the time on your laptop / PDA.
Figure 6
(15) Finally, if you had changed the DFS 700 data collection parameter settings to stop the
unit collecting data, set these back to the specified settings.
