7.2.7. ATTACHING SAMPLING PROBE
This section describes how to attach the sampling probe.
1. Install the pump on the monitor (refer to Section 7.2.5. INSTALLING THE PUMP).
2. Attach one end of tube to the probe, and another end to the pump (see Figure 7-16: Attaching
the Sampling Probe).

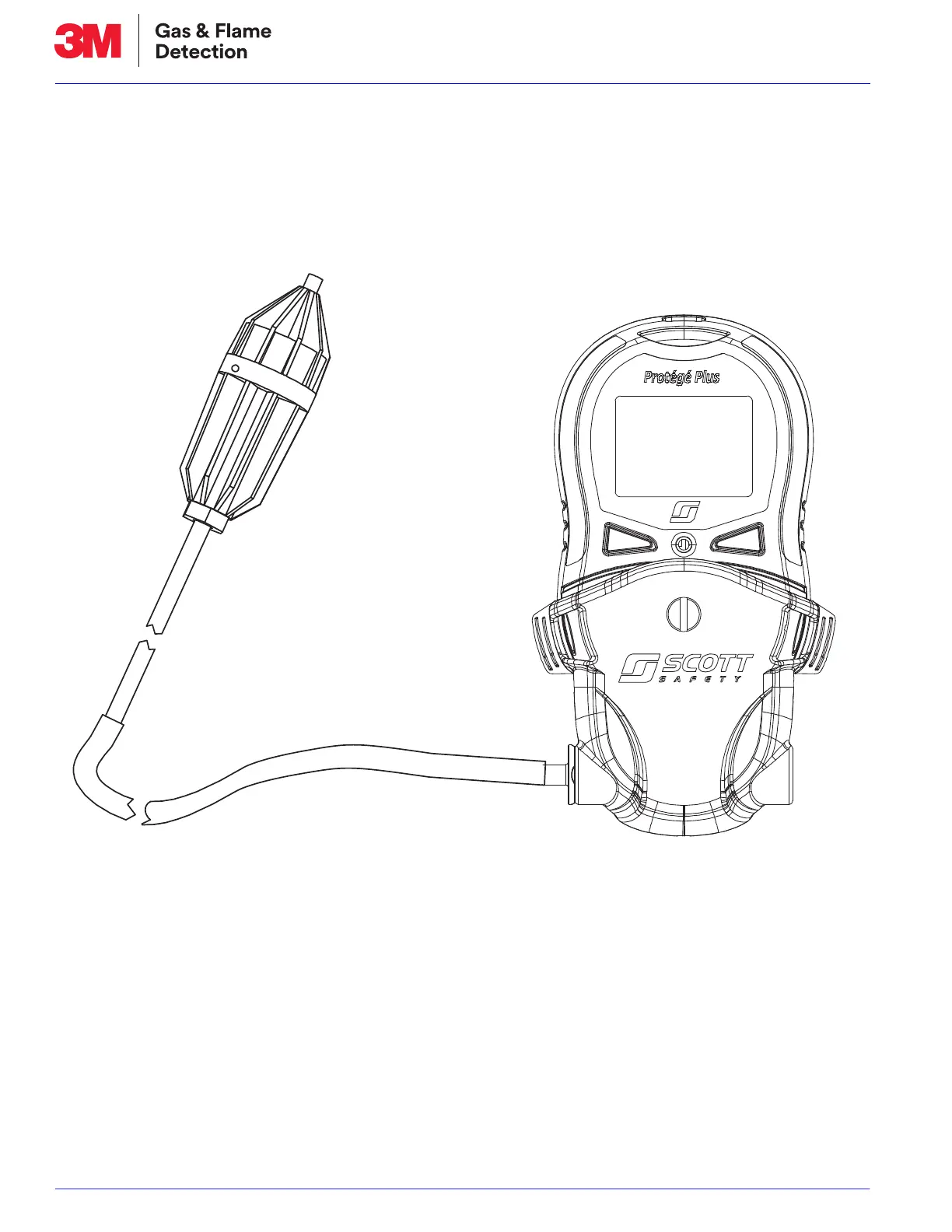

Figure 7-16: Attaching the Sampling Probe
