MAINTENANCE
P/N 595390-01 Rev B 202003 23
Maintenance
Available Parts
Uninstalling and Installing the Nose Cup Assembly
To uninstall the nose cup assembly
1 Reach inside the facepiece and, using only your fingers, flex the exterior surface of the nose cup from the two
voicemitter ducts; the ducts will remain attached to the lens. See picture A in Figure 4-1.
2 Grip the nose cup assembly and pull to remove it from the facepiece. See picture B in Figure 4-1.

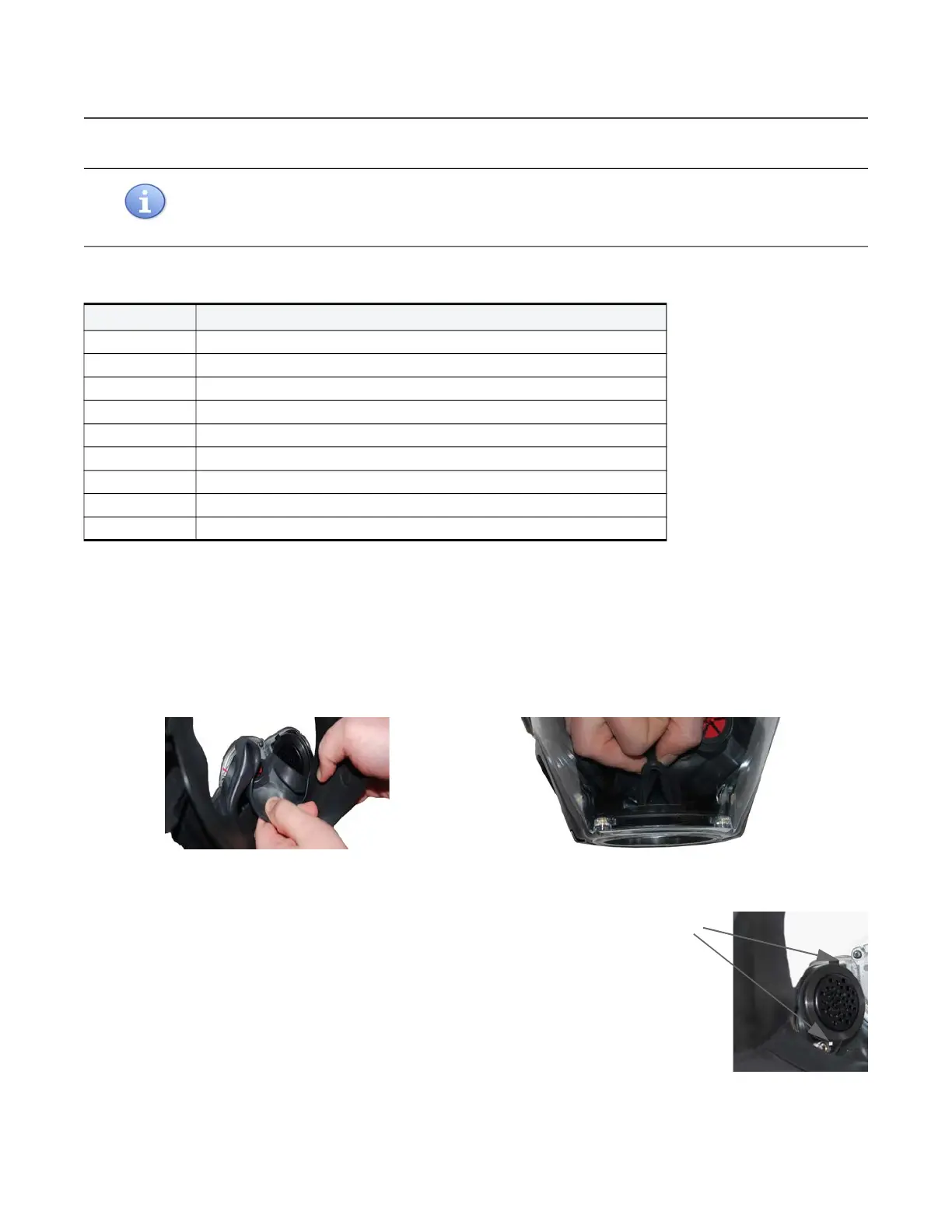

Figure 4-1 Removing the nose cup
To install the nose cup assembly
1 Insert the new or cleaned and dry nose cup assembly into the facepiece
with the nose cup valves facing up. You must insert the nose cup behind
the faceseal (inside the facepiece).
2 Press the nose cup firmly onto the two nose cup retaining posts on either
side of the adapter port. See Figure 4-2.
3 Stretch each 1" diameter hole in the nose cup onto the end of the
voicemitter ducts until fully seated in the groove at the end of each duct.
Figure 4-2 Nose cup retaining posts
NOTE
Maintenance is limited to uninstalling or installing the nose cup, head harness, head harness straps, and neck
strap.
PART NUMBER DESCRIPTION
201484-01 Nose cup assembly, Vision C5, Small
201486-01 Nose cup assembly, Vision C5, Medium
201488-01 Nose cup assembly, Vision C5, Large
31002788 Valve, inhalation, red
201495-03 Kevlar head net, Vision C5, Small
201495-02 Kevlar head net, Vision C5, Medium
201495-01 Kevlar head net, Vision C5, Large
804178-05 Kevlar upper strap, head harness, Vision C5
804178-03 Kevlar lower strap, head harness, Vision C5
Table 4-1 Available parts for the 3M Scott Vision C5 Facepiece
A
B
Retaining posts
