3M™ MicroTouch™ Controller EX USB Reference Guide 33
3M Touch Systems, Inc. Proprietary Information -- 29489v05
APPENDIX B
EX111 Controller Specifications
This section provides controller specifications such as power requirements,
environmental requirements, and cable connectors. The EX111 controller is a compact
USB controller. This controller can be internally mounted in your display.
The following figures show the overall dimensions of the EX111 controller and the
locations of the mounting holes and connectors.
The EX111 has a sensor connector (JP2) and a USB cable connector (JP1) as shown
below. The uncased controller measures approximately 1.3 x 2.6 inches with a total
height of approximately 0.38-inch from the thru hole pins on the trace side of the board to
the top of the highest component on the opposite side.

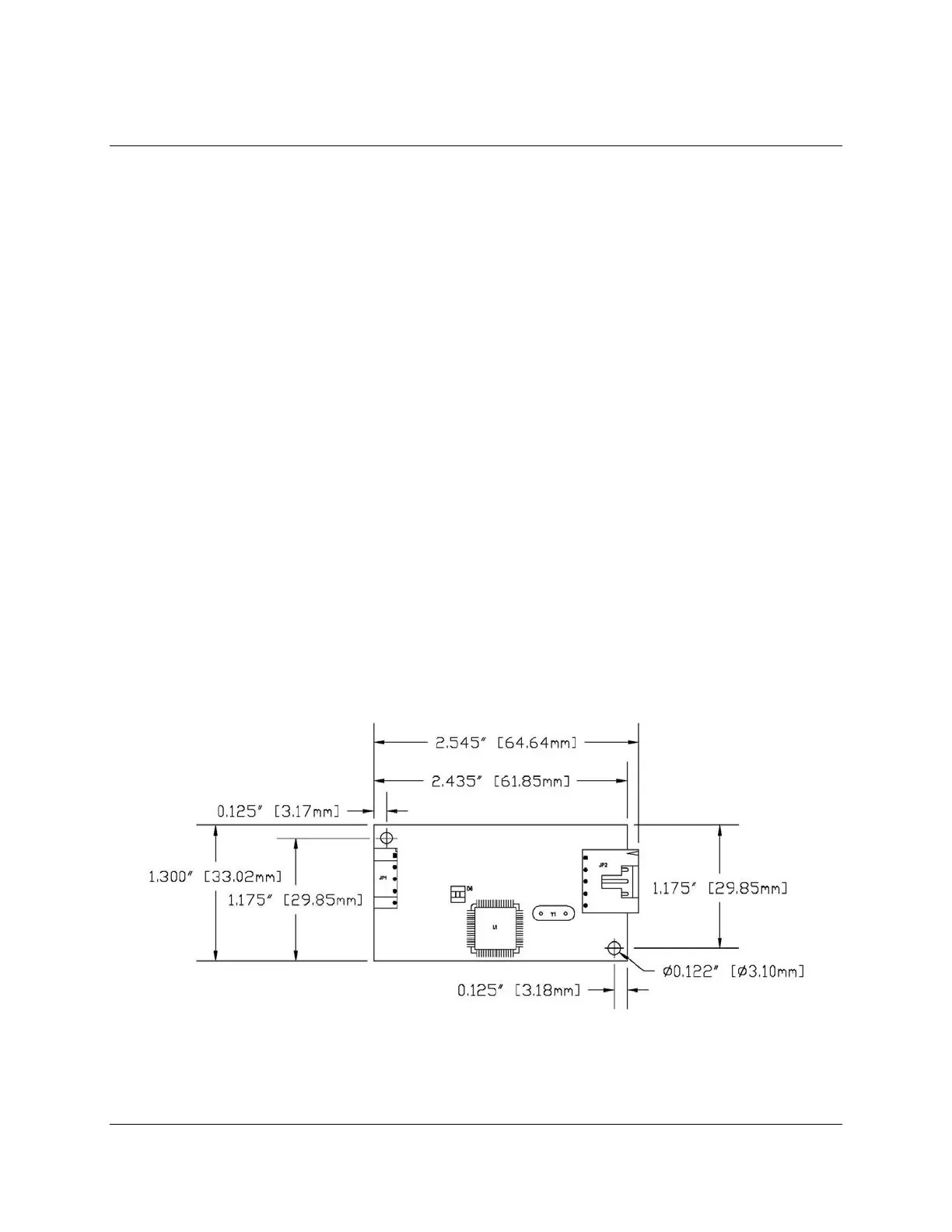

Figure 3 EX111 Overall Dimensions
