A.O. Smith BTR120 User Manual

2
BTR MODELS 120 THROUGH 400A - TABLE 1A
MODEL INPUT APPROX. GAS H VENT CONNECTIONS Approximate
RATE TANK INLET DIA INLET OUTLET ship. Weight
BTU/Hr. CAP. A B C D E F G I J TOP FRONT BACK TOP FRONT BACK STD. ASME
BTR120 120,000 BTU/Hr. 71 Gal 69.75" 4.25" 59.50" 50.87" 19.69" 19" 1/2" 51.88" 5" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 400 Lbs NA
35 Kw/Hr 268 L 177 cm 11 cm 151 cm 129 cm 50 cm 48 cm 1/2" 132 cm 13 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 182 Kg NA
BTR154 154,000 BTU/Hr 81 Gal 73.00" 4.25" 66.50" 57.87" 19.69" 19" 1/2" 59.00" 6" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 470 Lbs NA
45 Kw/Hr 307 L 185 cm 11 cm 169 cm 147 cm 50 cm 48 cm 1/2" 150 cm 15 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 213 Kg NA
BTR180 180,000 BTU/Hr 81Gal 67.50" 4.50" 62.00" 53.62" 20.50" 21" 1/2" 54.62" 6" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 470 Lbs NA
53 Kw/Hr 307 L 171 cm 12 cm 157 cm 136 cm 52 cm 53 cm 1/2" 139 cm 15 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 213 Kg NA
BTR197 199,000 BTR/Hr 100 Gal 75.00" 4.50" 70.00" 61.62" 20.50" 21" 1/2" 62.62" 6" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 603 Lbs NA
58 kW/Hr 379 L 192 cm 12 cm 178 cm 157 cm 52 cm 53 cm 1/2" 159 cm 15 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 273 Kg NA
BTR198 199,000 BTU/Hr. 100 Gal 75.00" 4.50" 70.00" 61.62" 20.50" 21" 1/2" 61.50" 6" 27.75" 1.50" 1.50" 2.00" 1.50" 1.50" 2.00" 603 Lbs NA
58 Kw/Hr 379 L 192 cm 12 cm 178 cm 157 cm 52 cm 53 cm 1/2" 150 cm 15 cm 71 cm 1.50" 1.50" 2.00" 1.50" 1.50" 2.00" 273 Kg NA
BTR199 199,000 BTU/Hr 81 Gal 67.50" 4.50" 62.00" 53.62" 20.50" 21" 1/2" 54.62" 6" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 470 Lbs NA
58 kW/Hr 307 L 171 cm 12 cm 157 cm 136 cm 52 cm 53 cm 1/2" 139 cm 15 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 213 Kg NA
BTR 200 199,000 BTR/Hr 100 Gal 72.00" 4.50" 65.13" 55.87" 19.75" 23" 1/2" 56.38" 6" 30.25" 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 630 Lbs 725 Lbs
58 kW/Hr 379 L 183 cm 12 cm 165 cm 142 cm 50 cm 58 cm 1/2" 143 cm 15 cm 77 cm 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 286 Kg 329 Kg
BTR 250 250,000 BTR/Hr 100 Gal 72.00" 4.50" 65.13" 55.87" 19.75" 23" 1/2" 56.38" 8" 30.25" 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 630 Lbs 725 Lbs
72 kW/Hr 379 L 183 cm 12 cm 165 cm 142 cm 50 cm 58 cm 1/2" 143 cm 20 cm 77 cm 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 286 Kg 329 Kg
BTR 251 251,000 BTR/Hr 65 Gal 75.00" 4.50" 65.75" 57.25" 20.00" NA 1/2" 58.75 8" 27.75" NA 1.50" 1.50" NA 1.50" 1.50" 750Lbs 862 Lbs
73 kW/Hr 246 L 191 cm 12 cm 167 cm 145 cm 51 cm NA 1/2" 149 cm 20 cm 70 cm NA 1.50" 1.50" NA 1.50" 1.50" 341 Kg 391 Kg
BTR 275 275,000 BTR/Hr 100 Gal 72.00" 4.50" 65.13" 55.87" 19.75" 23" 1/2" 56.38" 8" 30.25" 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 630 Lbs 725 Lbs
80 kW/Hr 379 L 183 cm 12 cm 165 cm 142 cm 50 cm 58 cm 1/2" 143 cm 20 cm 77 cm 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 286 Kg 329 Kg
BTR 305 305,000 BTR/Hr 65 Gal 75.00" 4.50" 65.75" 57.25" 20.00" NA 1/2" 58.75 8" 27.75" NA 1.50" 1.50" NA 1.50" 1.50" 750 Lbs 862 Lbs
89 kW/Hr 246 L 191 cm 12 cm 167 cm 145 cm 51 cm NA 1/2" 149 cm 20 cm 70 cm NA 1.50" 1.50" NA 1.50" 1.50" 341 Kg 391 Kg
BTR 365 365,000 BTR/Hr 85 Gal 79.50" 4.50" 70.25" 62.50" 22.50" 23” 3/4" 63.00 8" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 725 Lbs 833 Lbs
107 kW/Hr 322 L 202 cm 12 cm 178 cm 159 cm 57 cm 58 cm 3/4" 160 cm 20 cm 70 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 329 Kg 379 Kg
BTR 400 390,000 BTU/Hr 100 Gal 75.50" 4.50" 67.50" 58.25" 26.75" 23" 3/4" 59.00" 8" 30.25" 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 760 Lbs 874 Lbs
114 kW/Hr 379 L 192 cm 12 cm 171 cm 148 cm 68 cm 58 cm 3/4" 150 cm 20 cm 77 cm 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 345 Kg 396 Kg
BTRC MODELS 120 THROUGH 400/A - TABLE 1B
MODEL INPUT APPROX. GAS H VENT CONNECTIONS Approximate
RATE TANK INLET DIA INLET OUTLET ship. Weight
BTU/Hr. CAP. A B C D E F G I J TOP FRONT BACK TOP FRONT BACK STD. ASME
BTRC120 120,000 BTU/Hr. 71 Gal 69.75" 4.25" 59.50" 50.87" 19.69" 19" 1/2" 51.88" 5" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 400 LBS NA
35 Kw/Hr 268 L 177 cm 11 cm 151 cm 129 cm 50 cm 48 cm 1/2" 132 cm 13 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 182 Kg NA
BTRC154 154,000 BTU/Hr 81 Gal 73.00" 4.25" 66.50" 57.87" 19.69" 19" 1/2" 59.00" 6" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 470 LBS NA
45 Kw/Hr 307 L 185 cm 11 cm 169 cm 147 cm 50 cm 48 cm 1/2" 150 cm 15 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 213 Kg NA
BTRC180 180,000 BTU/Hr 76 Gal 70.50" 4.25" 63.75" 55.13" 17.75" 19" 1/2" 56.50" 6" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 470 LBS NA
53 Kw/Hr 288 L 179 cm 11 cm 162 cm 140 cm 45 cm 48 cm 1/2" 144 cm 15 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 213 Kg NA
BTRC197 199,000 BTR/Hr 95 Gal 81.50" 4.25" 74.75" 66.13" 17.75" 19" 1/2" 67.50" 6" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 603 LBS NA
58 kW/Hr 360 L 207 cm 11 cm 190 cm 168 cm 45 cm 48 cm 1/2" 171 cm 15 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 273 Kg NA
BTRC199 199,000 BTU/Hr 76 Gal 70.50" 4.25" 63.75" 55.13" 17.75" 19" 1/2" 56.50" 6" 27.75" 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 470 LBS NA
58 kW/Hr 288 L 179 cm 11 cm 162 cm 140 cm 45 cm 48 cm 1/2" 144 cm 15 cm 71 cm 1.50" 1.50" 1.50" 1.50" 1.50" 1.50" 213 Kg NA
BTRC200 199,000 BTR/Hr 100 Gal 72.00" 4.50" 65.13" 55.87" 19.75" 23" 1/2" 56.38" 6" 30.25" 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 630 lbs 725 lbs
58 kW/Hr 379 L 183 cm 12 cm 165 cm 142 cm 50 cm 58 cm 1/2" 143 cm 15 cm 77 cm 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 286 Kg 329 Kg
BTRC250 250000 BTR/Hr 100 Gal 72.00" 4.50" 65.13" 55.87" 19.75" 23" 1/2" 56.38" 8" 30.25" 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 630 lbs 725 lbs
72 kW/Hr 379 L 183 cm 12 cm 165 cm 142 cm 50 cm 58 cm 1/2" 143 cm 20 cm 77 cm 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 286 Kg 329 Kg
BTRC251 251000 BTR/Hr 65 Gal 75.00" 4.50" 65.75" 57.25" 20.00" NA 1/2" 58.8 8" 27.75" NA 1.50" 1.50" NA 1.50" 1.50" 750 lbs 862 lbs
73 kW/Hr 246 L 191 cm 12 cm 167 cm 145 cm 51 cm NA 1/2" 149 cm 20 cm 70 cm NA 1.50" 1.50" NA 1.50" 1.50" 341 Kg 391 Kg
BTRC275 275,000 BTR/Hr 100 Gal 72.00" 4.50" 65.13" 55.87" 19.75" 23" 1/2" 56.38" 8" 30.25" 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 630 lbs 725 lbs
80 kW/Hr 379 L 183 cm 12 cm 165 cm 142 cm 50 cm 58 cm 1/2" 143 cm 20 cm 77 cm 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 286 Kg 329 Kg
BTRC305 305,000 BTR/Hr 65 Gal 75.00" 4.50" 65.75" 57.25" 20.00" NA 1/2" 58.8 8" 27.75" NA 1.50" 1.50" NA 1.50" 1.50" 750 lbs 862 lbs
89 kW/Hr 246 L 191 cm 12 cm 167 cm 145 cm 51 cm NA 1/2" 149 cm 20 cm 70 cm NA 1.50" 1.50" NA 1.50" 1.50" 341 Kg 391 Kg
BTRC365 365,000 BTR/Hr 65 Gal 75.00" 4.50" 65.75" 57.25" 20.00" NA 3/4" 58.8 8" 27.75" NA 1.50" 1.50" NA 1.50" 1.50" 750 lbs 862 lbs
107 kW/Hr 246 L 191 cm 12 cm 167 cm 145 cm 51 cm NA 3/4" 149 cm 20 cm 70 cm NA 1.50" 1.50" NA 1.50" 1.50" 341 Kg 391 Kg
BTRC400 390,000 BTU/Hr 100 Gal 75.50" 4.50" 67.50" 58.25" 26.75" 23" 3/4" 59.00" 8" 30.25" 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 760 lbs 874 lbs
114 kW/Hr 379 L 192 cm 12 cm 171 cm 148 cm 68 cm 58 cm 3/4" 150 cm 20 cm 77 cm 1.50" 2.00" 2.00" 1.50" 2.00" 2.00" 345 Kg 396 Kg

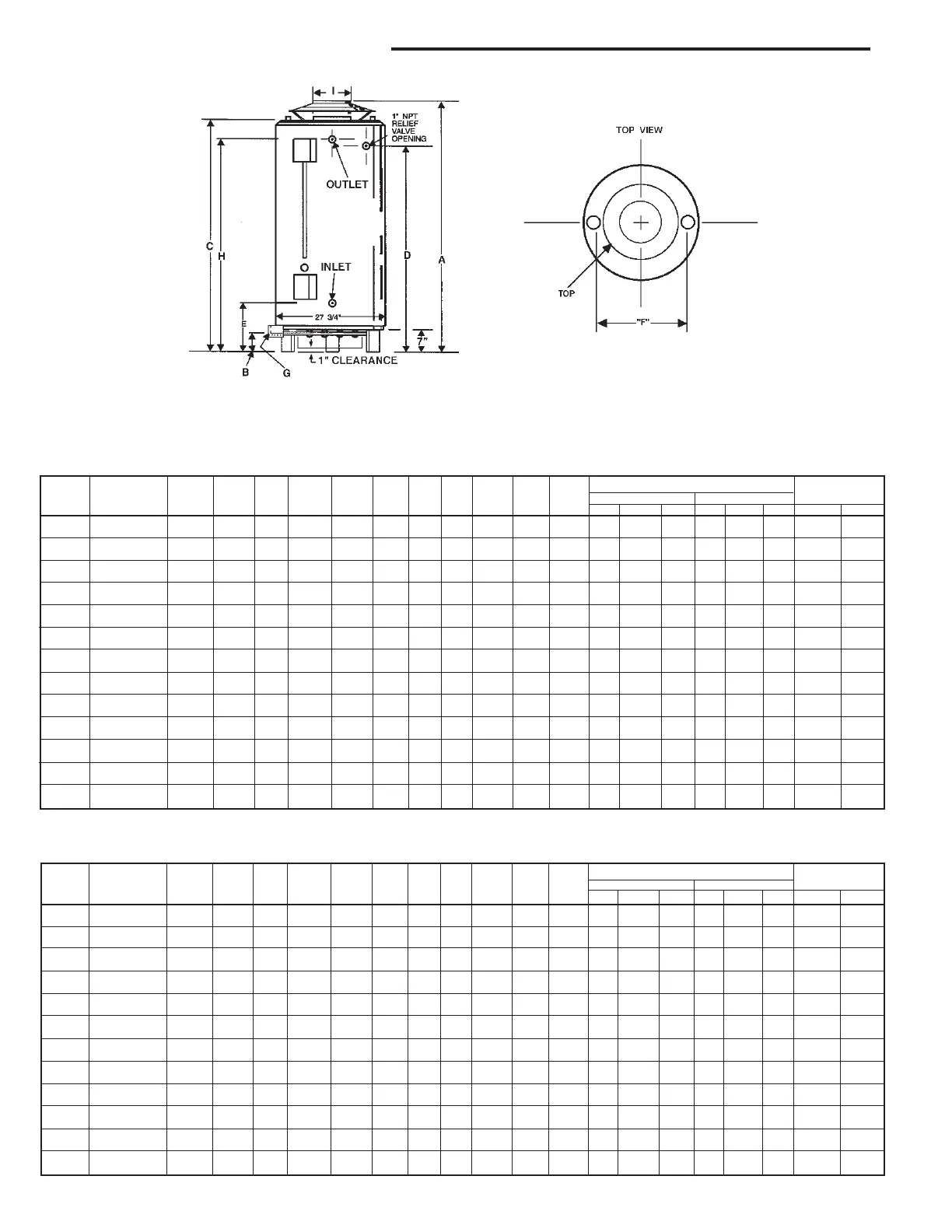

ROUGH-IN-DIMENSIONS
See Models Below
FIGURE 1
MODELS BTR(C) 120 THROUGH 500
