A.O. Smith BTR120 - Manifolds

22

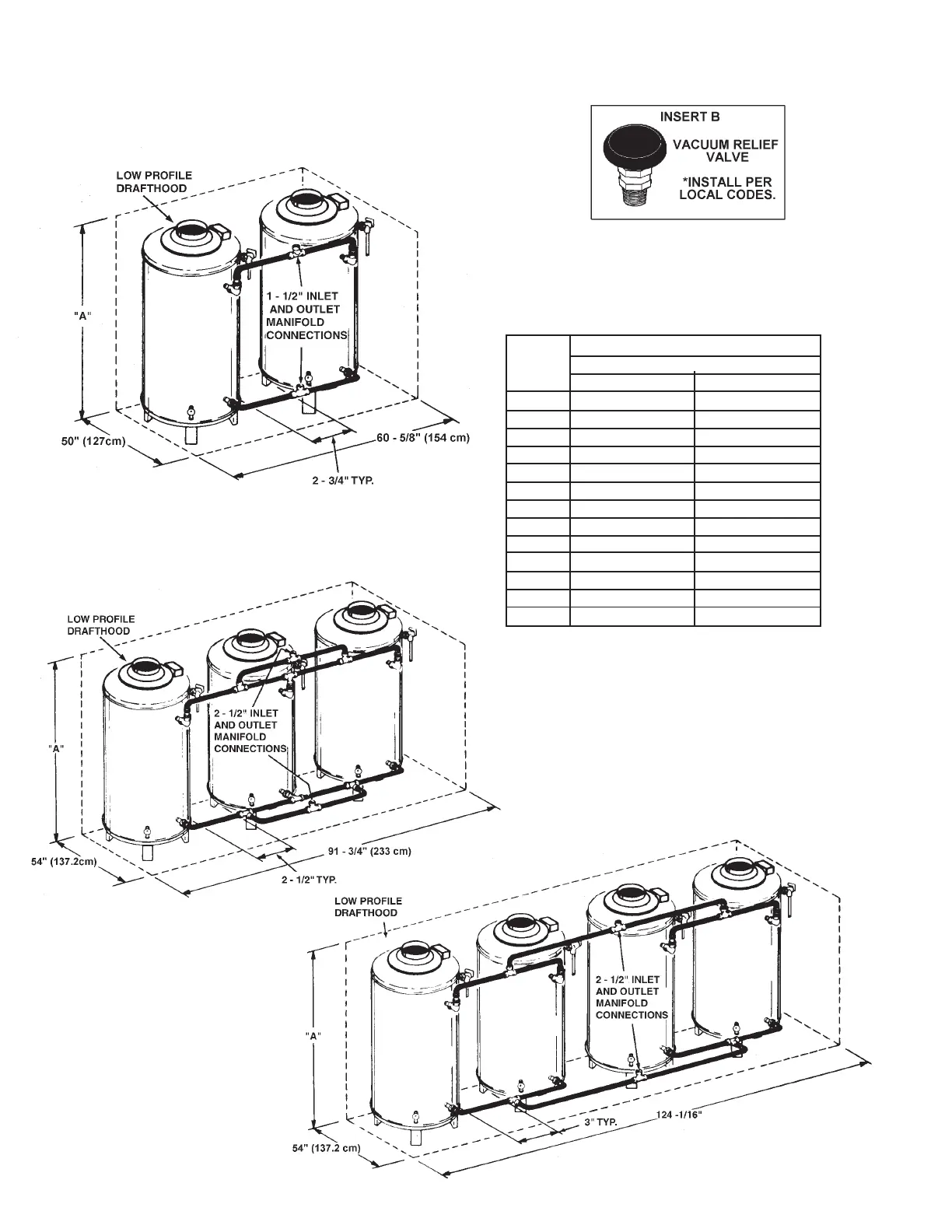

MANIFOLD KITS
TWO UNIT MANIFOLD KIT
(PART NO. 195686)
THREE UNIT MANIFOLD KIT
(PART NO. 195687)
FOUR UNIT MANIFOLD KIT
(PART NO. 195688)
DIMENSIONS “A” INCHES (CM)
MODEL LOW PROFILE VERTICAL HOOD “A”
BTR MODELS BTRC MODELS
120 69.75” (177cm) 69.75” (177cm)
154 73.00” (185cm) 73.00” (185cm)
180 67.50” (171cm) 70.50” (179cm)
197 75.00 (192cm) 81.50” (207cm)
198 75.00” (192cm) N/A
199 67.50” (171cm) 70.50” (179cm)
200 72.00” (183cm) 72.00” (183cm)
250 72.00” (183cm) 72.00” (183cm)
251 75.00” (191cm) 75.00” (191cm)
275 72.00” (183cm) 72.00” (183cm)
305 75.00” (191cm) 75.00” (191cm)
365 79.50” (202cm) 75.00” (191cm)
400 75.50” (192cm) 75.50” (192cm)
